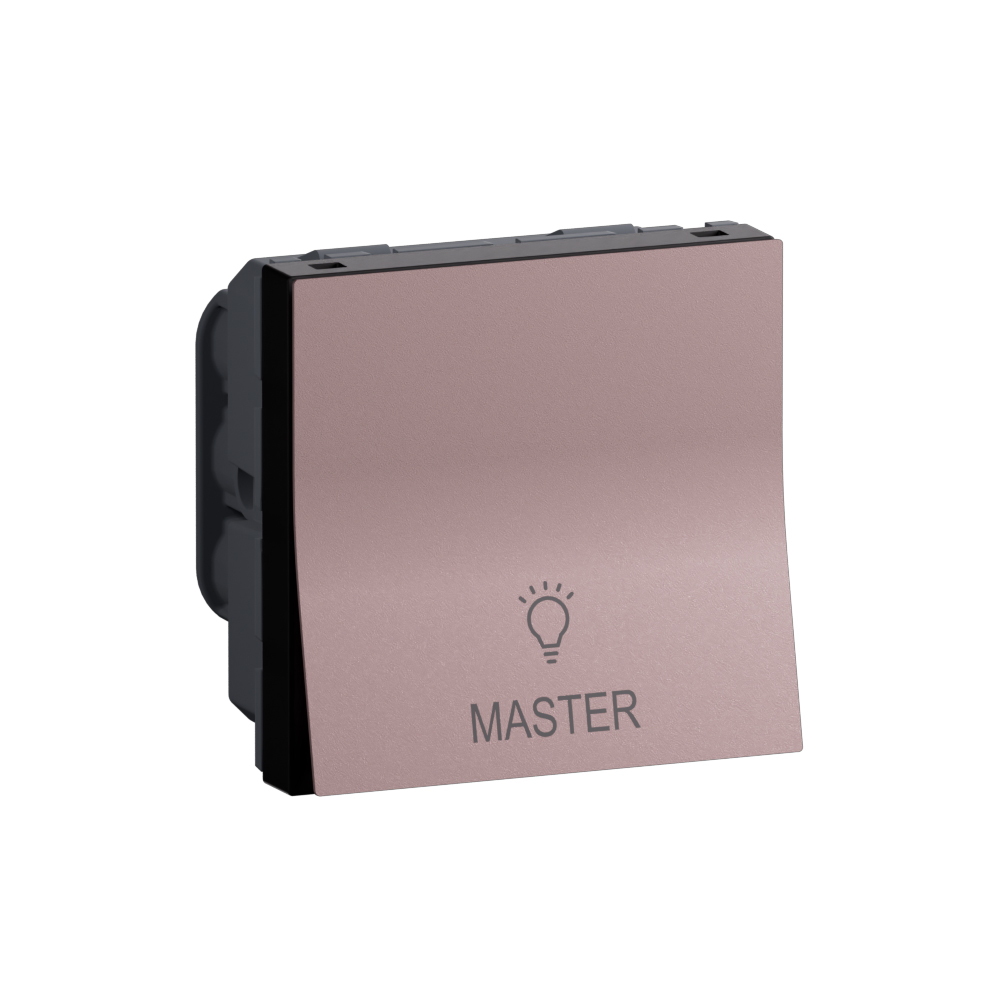

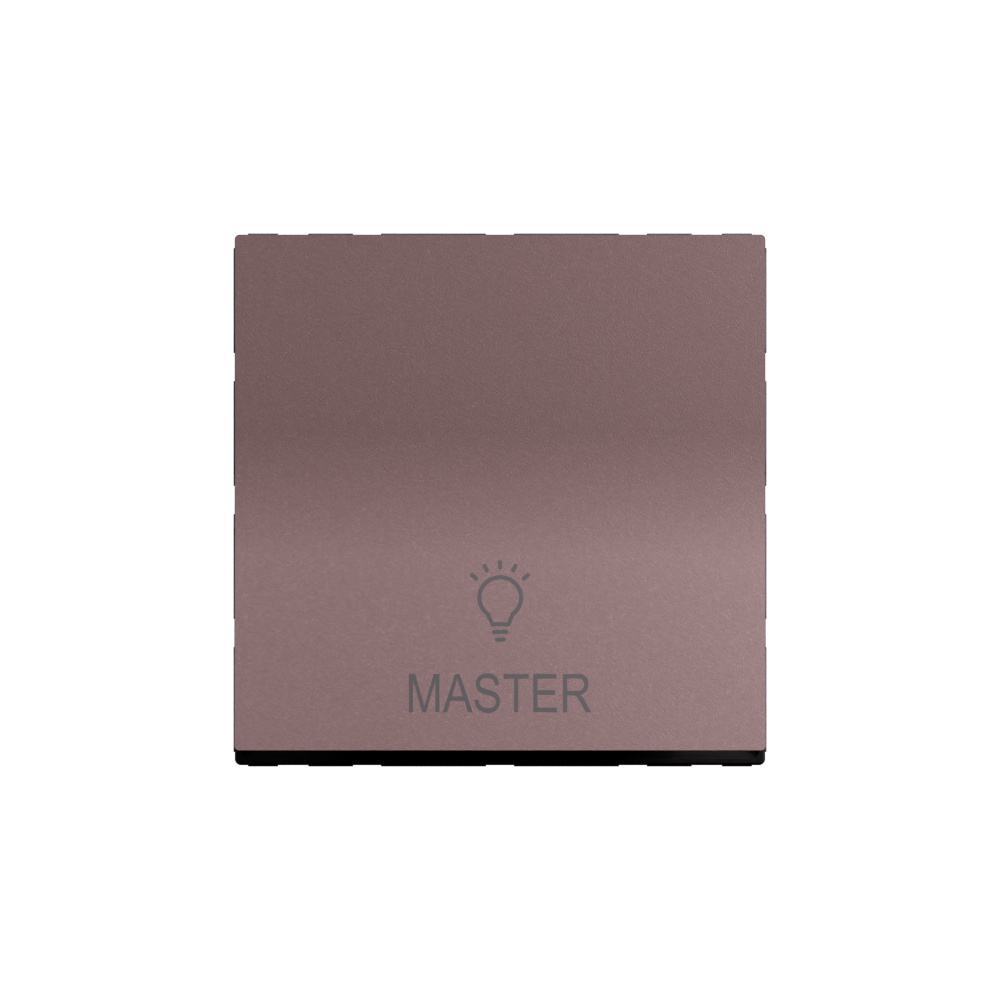

Arteor Advance - 2 modules 2 way 20AX all lights on/off master switch rose - 250V AC 20AX - Rocker operation modular 2M - IP20

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 20AX all lights on/off master switch rose - 250V AC 20AX - Rocker operation modular 2M - IP20

REF. AC22112RS EAN. 3414972918626
Allows control of light from two locations with a 2-module, 2-way 20AX master switch. Its smooth rocker mechanism and screw-type terminals ensure reliable operation and secure wiring for indoor IP20 installations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 2-module, 2-way 20AX master switch. Its smooth rocker mechanism and screw-type terminals ensure reliable operation and secure wiring for indoor IP20 installations.

Product characteristics
  • Two-module, two-way 20AX master switch for centralized all-lights ON/OFF control in modular domestic installations
  • Rose finish in matt lacquered thermoplastic for a subtle, architectural aesthetic within the Arteor Advance range
  • Rocker/button mechanism engineered for smooth, precise actuation with terminal marking for clear identification
  • 20AX, 250V AC rating suitable for switching full-load inductive and resistive SBL loads and LED lighting circuits
  • Screw-type terminals for secure connection of 0.75mm² to 1.5mm² flexible or rigid conductors, IP20 indoor use, operating from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Pink finish evoking subtle blush effect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Other
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
