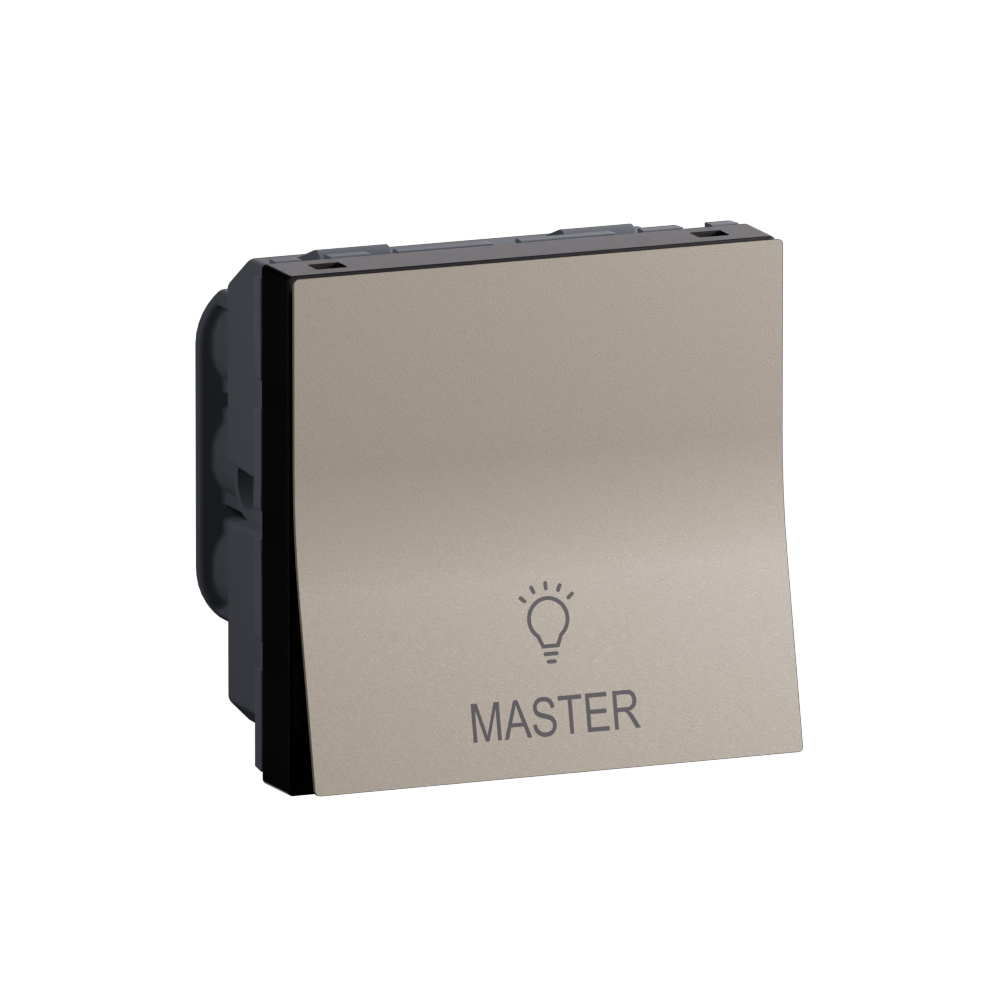

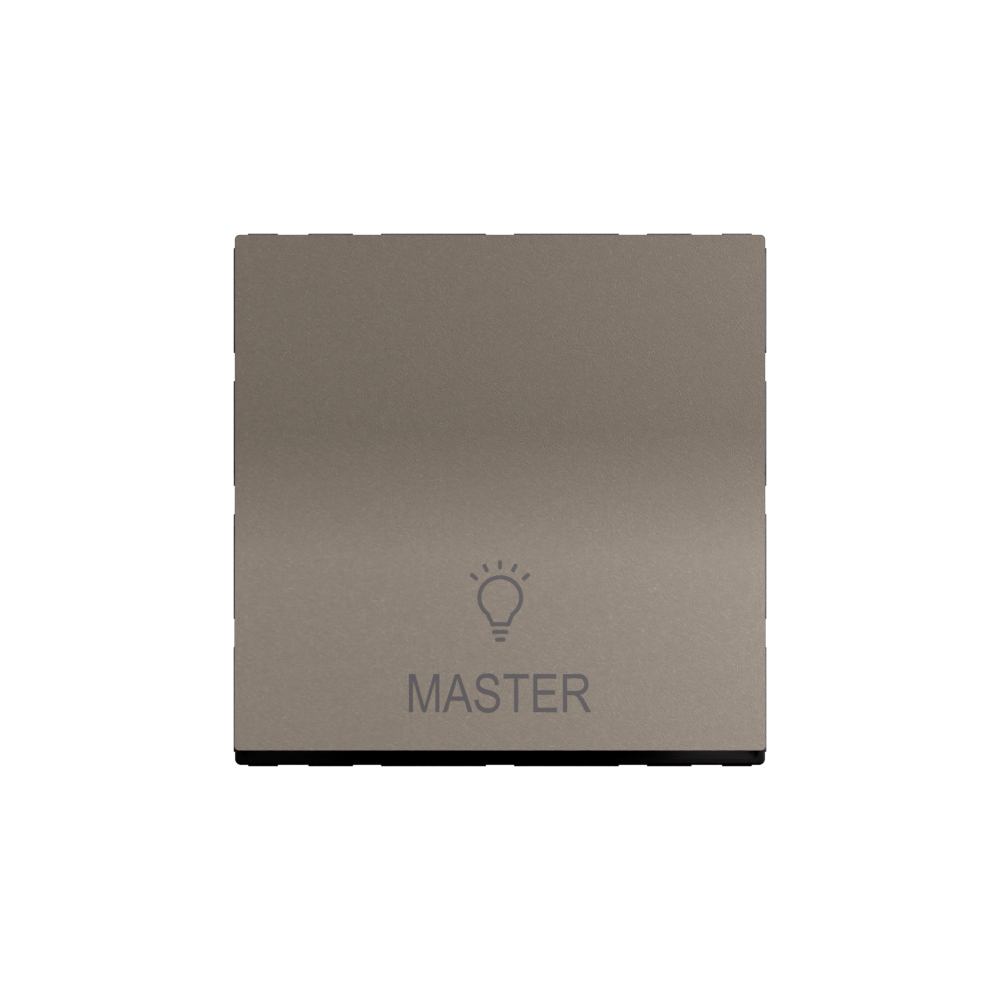

Arteor Advance - 2 modules 2 way 20AX all lights on/off master switch champagne - 250V AC 20AX - Rocker 2M IP20

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 20AX all lights on/off master switch champagne - 250V AC 20AX - Rocker 2M IP20

REF. AC22112CH EAN. 3414972918565
Allows control of light from two locations with a 2-module, 2-way 20AX master switch. Its smooth rocker mechanism and screw-type terminals ensure reliable operation. The champagne matt thermoplastic finish offers subtle elegance.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 2-module, 2-way 20AX master switch. Its smooth rocker mechanism and screw-type terminals ensure reliable operation. The champagne matt thermoplastic finish offers subtle elegance.

Product characteristics
  • Two-module, two-way 20AX master switch for centralized all-lights ON/OFF control in modular lighting circuits
  • Champagne (gold) matt lacquered thermoplastic finish coordinates with Arteor Advance aesthetics for premium interiors
  • Rocker/button mechanism engineered for smooth, precise actuation and reliable tactile feedback over intensive use
  • 20A 250V AC rating suitable for switching full-load inductive and resistive SBL and LED lighting circuits at 50–60Hz
  • IP20, IK02 modular device with screw terminals (0.75mm² to 1.5mm²) for secure wiring in indoor installations, mounting in 2M module frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Gold
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
