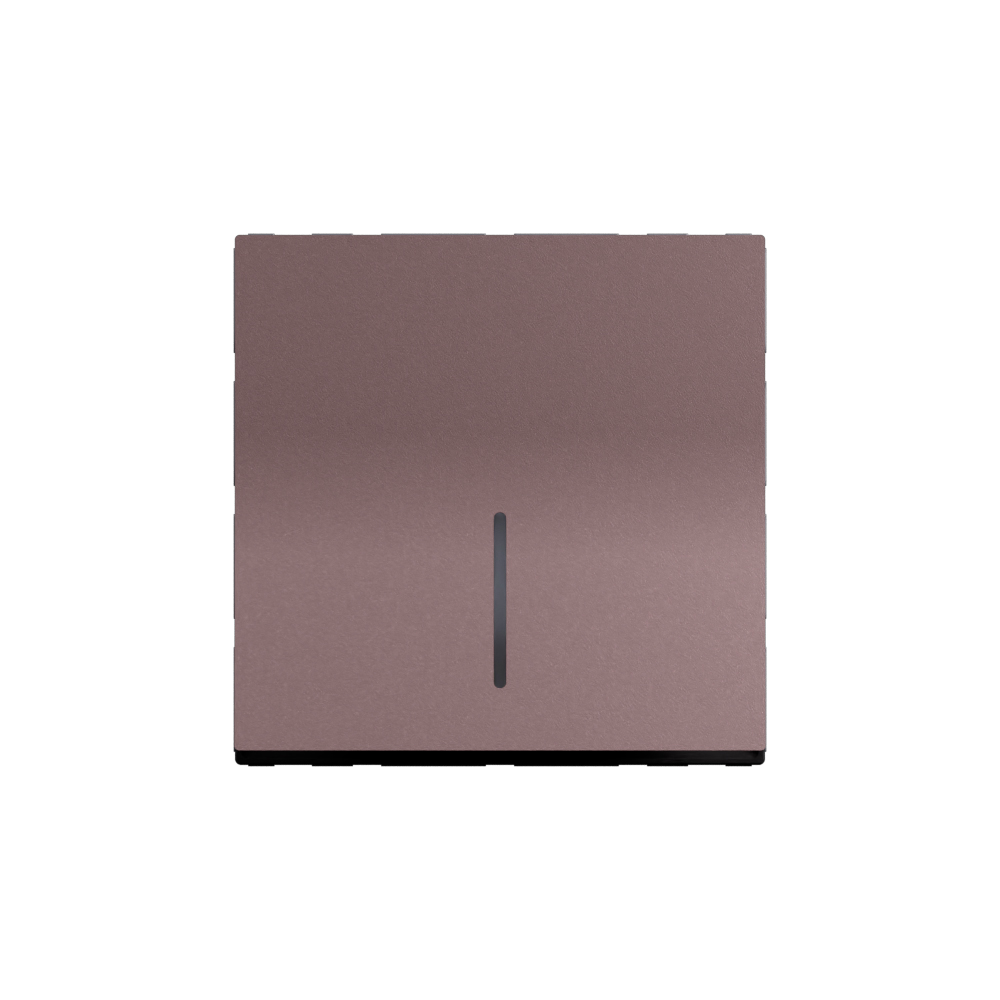

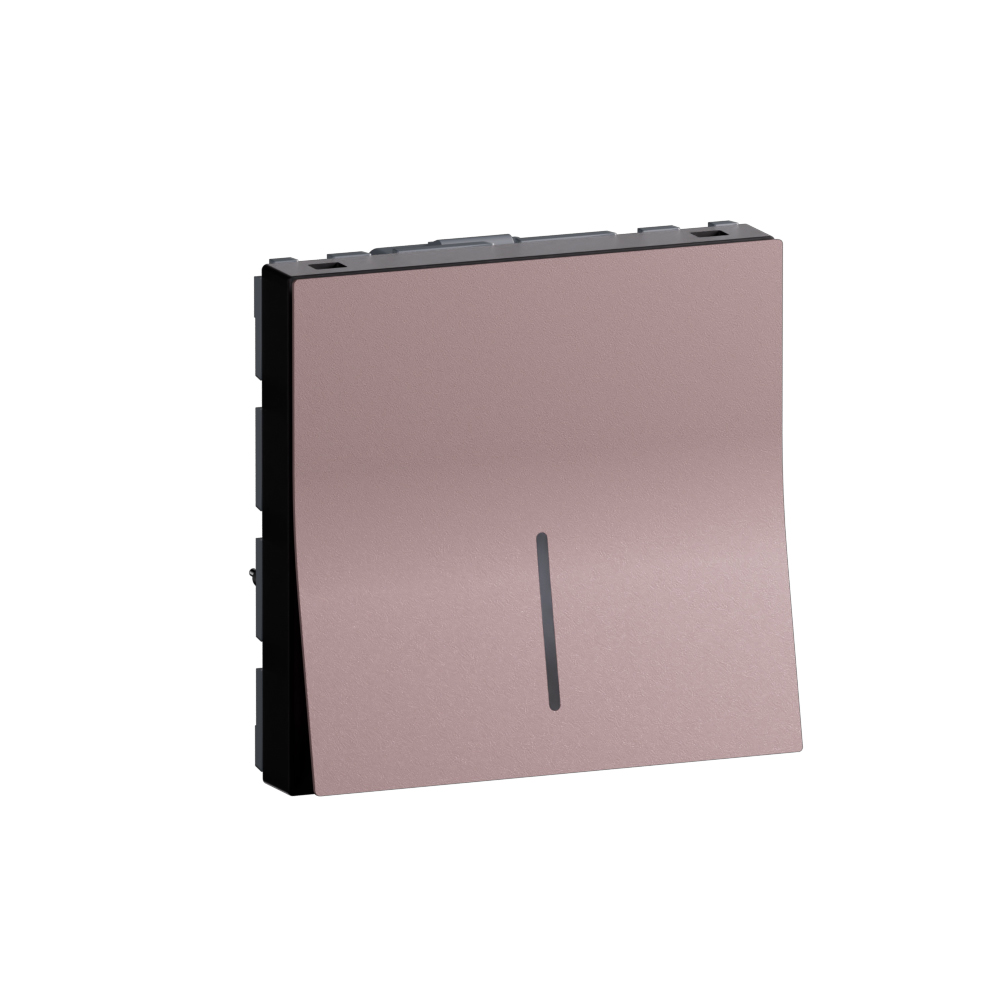

Arteor Advance - 2 modules 2 way 16AX switch with indicator - 250V AC lighting control - Screw terminals - Pink rose matt finish

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 16AX switch with indicator - 250V AC lighting control - Screw terminals - Pink rose matt finish

REF. AC22111RS EAN. 3414972924146
Allows control of light from two locations with a 2-module, 2-way 16AX rocker switch. Features an LED indicator or locator and screw terminals. Rated 250V AC, 16AX for SBL and LED loads for reliable indoor operation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 2-module, 2-way 16AX rocker switch. Features an LED indicator or locator and screw terminals. Rated 250V AC, 16AX for SBL and LED loads for reliable indoor operation.

Product characteristics
  • Two-module, two-way 16AX installation switch for controlling a circuit from two locations
  • Rose finish in the Arteor Advance range for coordinated aesthetic integration
  • Interchangeable LED indicator or locator for clear visual status or easy switch location in low light
  • Rated 16AX at 250V AC, suitable for switching full rated current on inductive and resistive SBL loads and LED lighting
  • Modular 2M rocker switch with screw terminals and snap-in mounting, IP20, IK02, halogen-free thermoplastic construction for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Pink finish evoking subtle blush effect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Other
Label space/information surface No
Lighting Optional
Function lighting Control and orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
