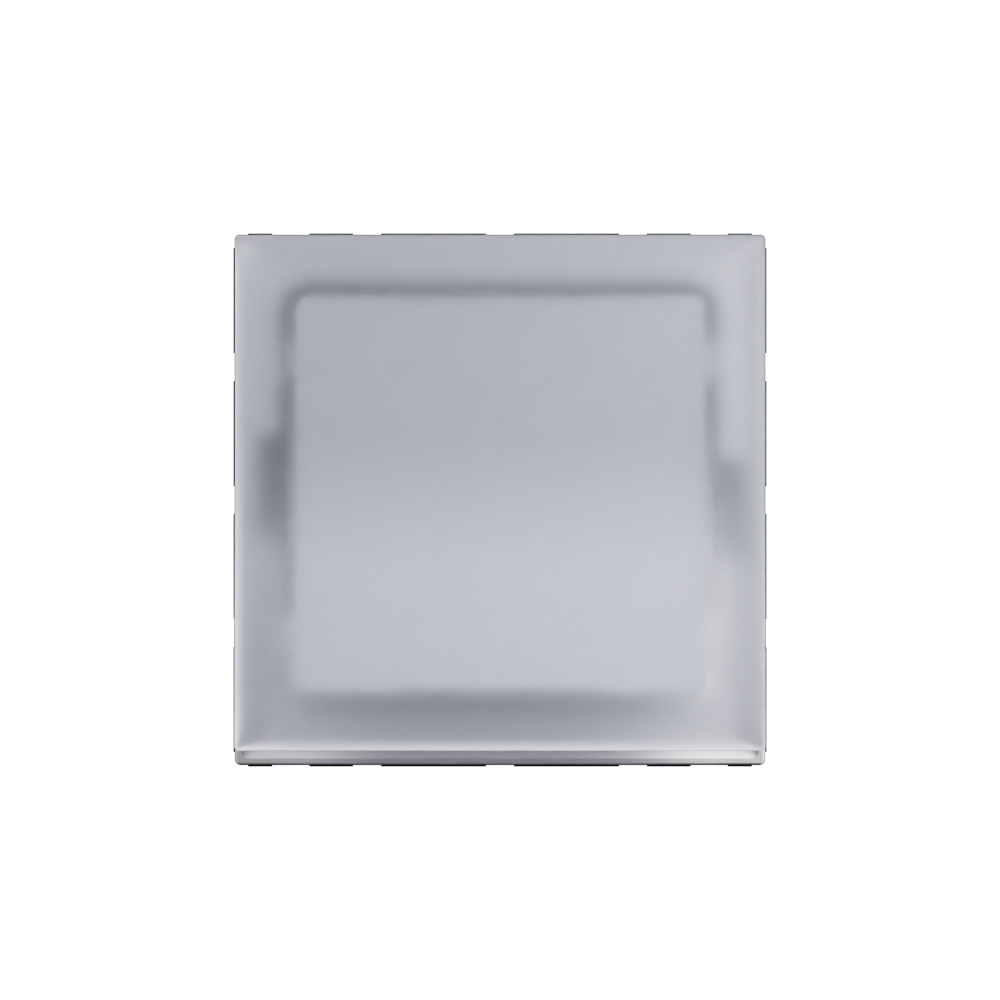

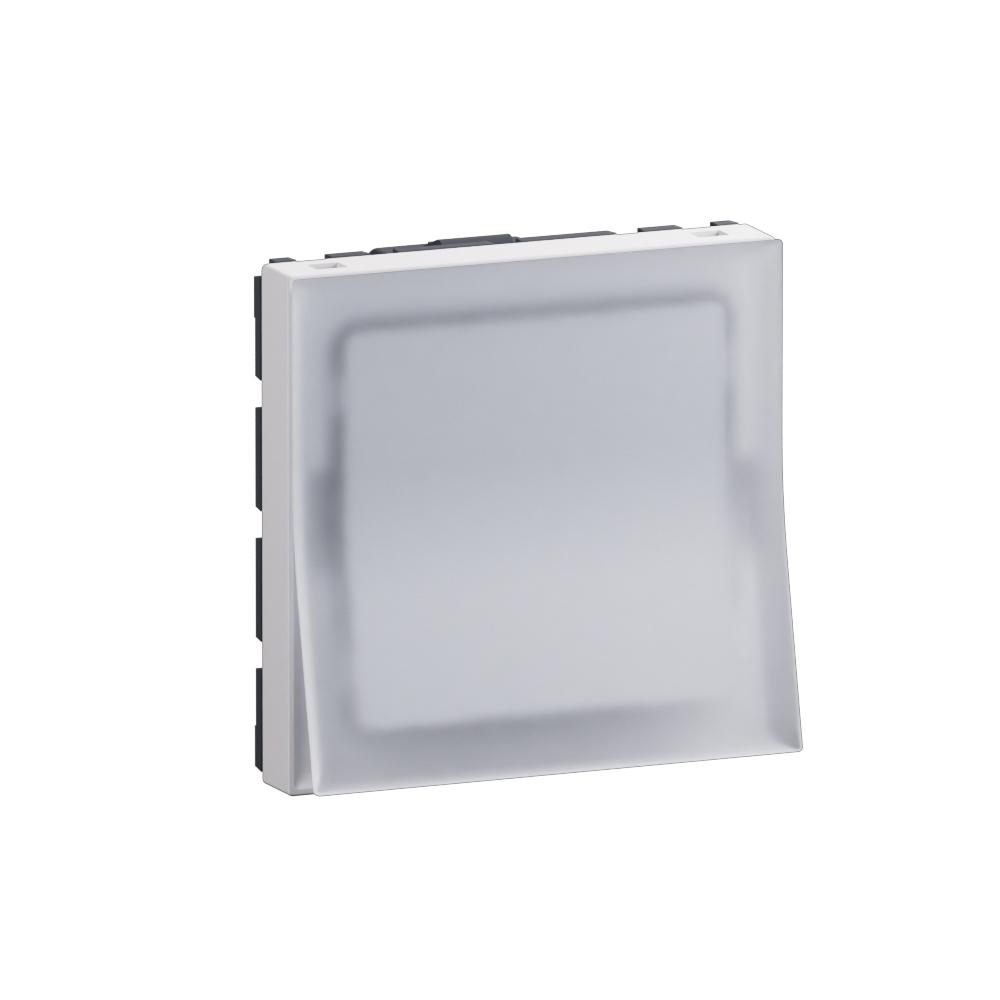

Arteor Advance - 2 modules 2 way 10A push button with label holder matt white - 250V AC 10A rating - Modular 2M matt white design

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 10A push button with label holder matt white - 250V AC 10A rating - Modular 2M matt white design

REF. AC23117MW EAN. 3414972751865
Offers a gentle touch for effortless light control with smooth, quiet operation. The 2-module, 2-way 10A push button in matt white includes a label holder and screw terminals. Its electromechanical return mechanism ensures reliable switch
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. The 2-module, 2-way 10A push button in matt white includes a label holder and screw terminals. Its electromechanical return mechanism ensures reliable switch

Product characteristics
  • Two-module, 2-way, 1-pole electromechanical push button rated 10A at 250V AC for modular domestic switching applications
  • Matt white thermoplastic front (RAL 9003) with smooth, powdery finish matching Arteor Advance aesthetics
  • Momentary push mechanism that automatically returns to its original rest position for reliable control logic
  • 10A rating suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits within IP20 environments
  • Integrated label holder and terminal marking with screw terminals (0.75mm² to 1.5mm²) for clear circuit identification and secure wiring
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Powdery white with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 2
Number of modules (module system) 2
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface Yes
Imprint None
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
