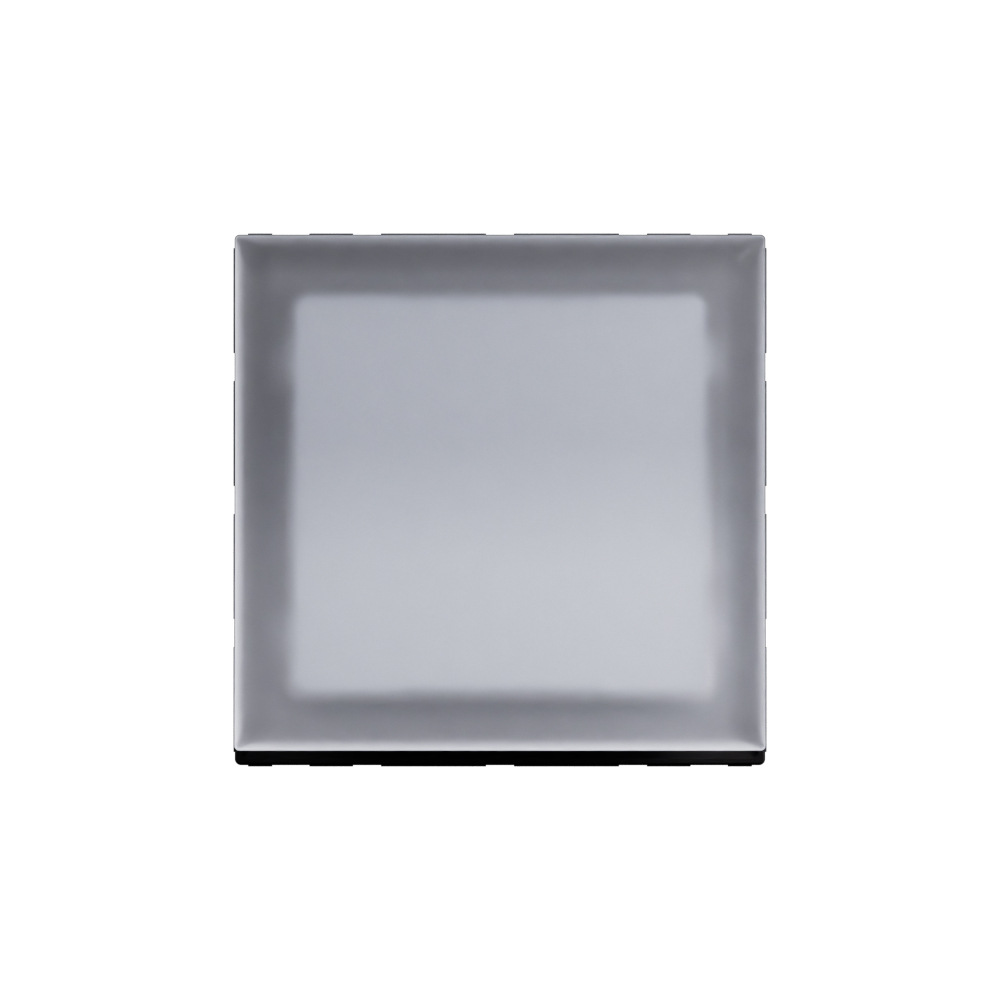

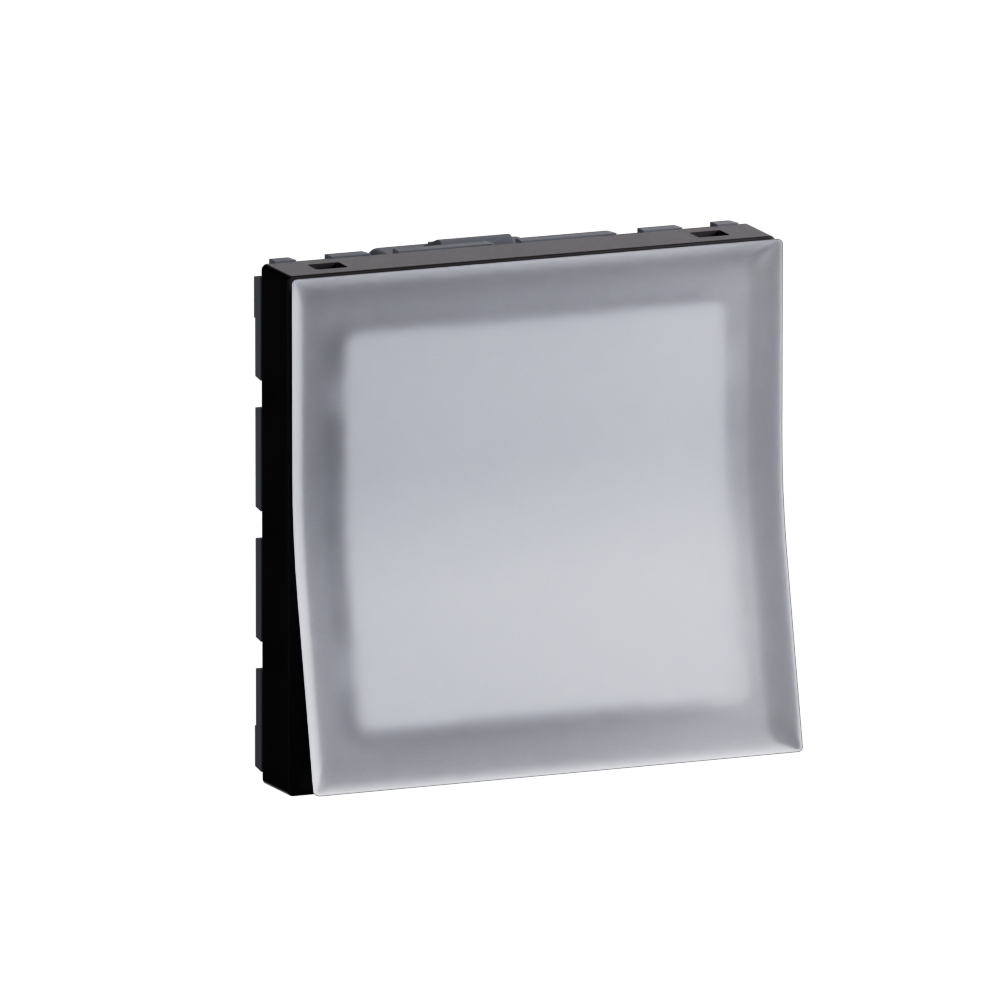

Arteor Advance - 2 modules 2 way 10A push button with label holder matt black - 250V AC 1P IP20 - Screw terminals

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 10A push button with label holder matt black - 250V AC 1P IP20 - Screw terminals

REF. AC23117MB EAN. 3414972751803
This 2 modules, 2 ways 10A push button in matt black offers smooth, quiet light control. It features an integrated label holder, electromechanical return and screw terminals, while its modular square format optimizes indoor lighting control
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules, 2 ways 10A push button in matt black offers smooth, quiet light control. It features an integrated label holder, electromechanical return and screw terminals, while its modular square format optimizes indoor lighting control

Product characteristics
  • Two-module, 2-way, 10A electromechanical push button for modular domestic switching applications at 250V AC
  • Matt black thermoplastic front with lacquered, smooth matt finish for a deep black, high-end aesthetic
  • Momentary push mechanism that automatically returns to its original position for precise, transient control
  • Rated 10A for switching full-load inductive and resistive SBL loads and LED circuits, ensuring reliable performance
  • Integrated label holder and screw terminals with 0.75mm² to 1.5mm² capacity for clear circuit identification and secure wiring
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 2
Number of modules (module system) 2
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
Label space/information surface Yes
Imprint None
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
