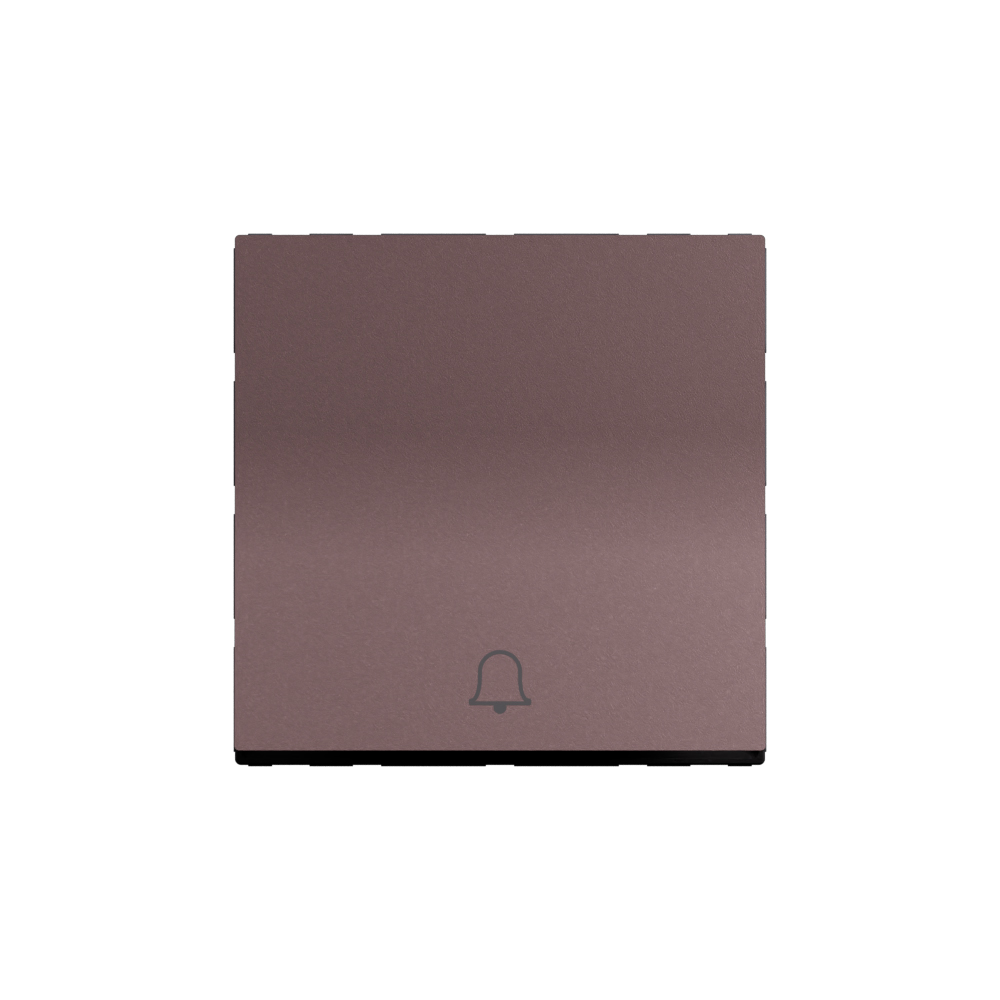

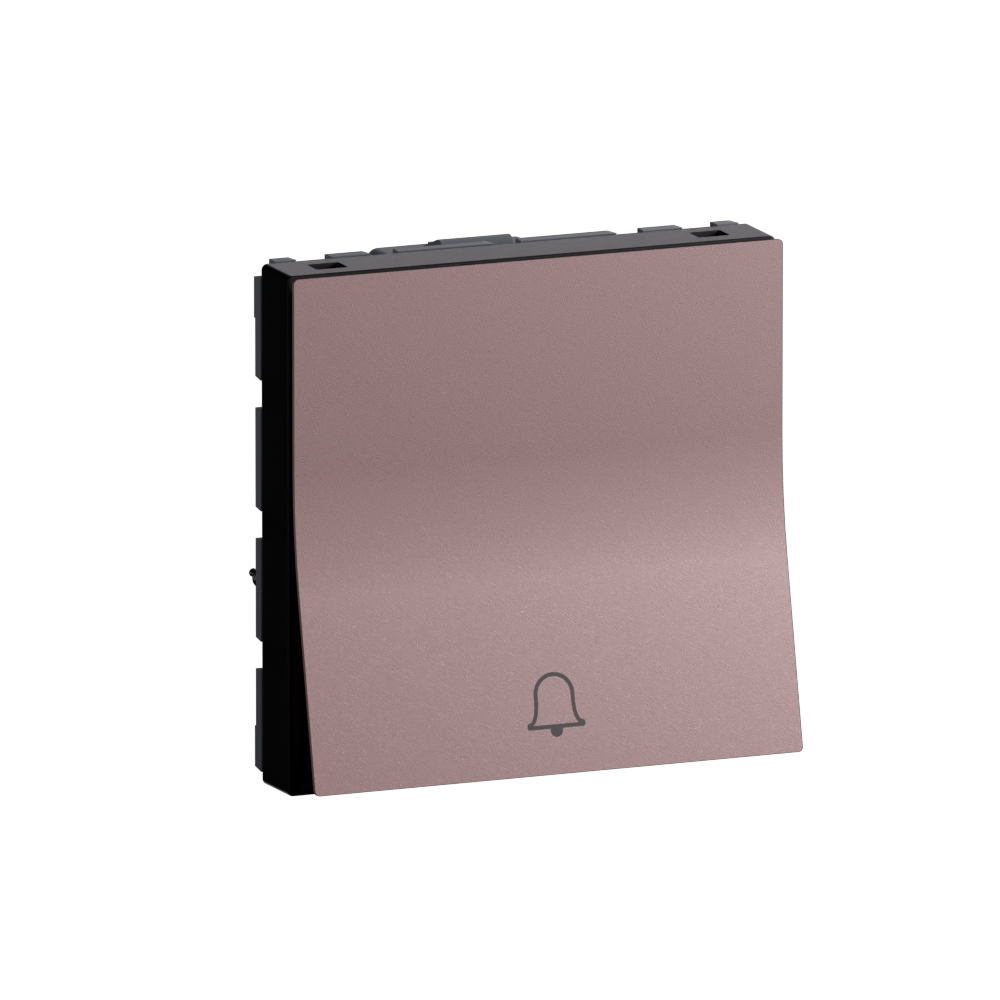

Arteor Advance - 2 modules 2 way 10A bell push with locator rose - Built-in locator light - 250V AC 10A rating - Modular 2M design

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 10A bell push with locator rose - Built-in locator light - 250V AC 10A rating - Modular 2M design

REF. AC23114RS EAN. 3414972924771
Offers a gentle touch for effortless light control with smooth, quiet operation. This 2-module, 2-way 10A bell push with locator ensures easy switch location in the dark and reliable 250V AC performance for domestic IP20 applications.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 2-module, 2-way 10A bell push with locator ensures easy switch location in the dark and reliable 250V AC performance for domestic IP20 applications.

Product characteristics
  • Two-module, 2-way, 10A electromechanical bell push for modular domestic switching applications (250V AC, 1-pole).
  • Rose (pink) matt lacquered finish in the Arteor Advance range, providing a subtle blush aesthetic for premium interiors.
  • Integrated locator function with complementary luminous signal enables quick identification of the push button in low-light conditions.
  • Rated 10A at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits in indoor IP20 environments.
  • Screw-type terminals for flexible or rigid conductors 0.75mm² to 1.5mm² and snap-in modular mounting (2M, 45x45x38mm) ensure fast, secure installation and long service life.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Pink finish evoking subtle blush effect
  • The square format enables modularity

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 2
Number of modules (module system) 2
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Transparent No
Label space/information surface No
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
