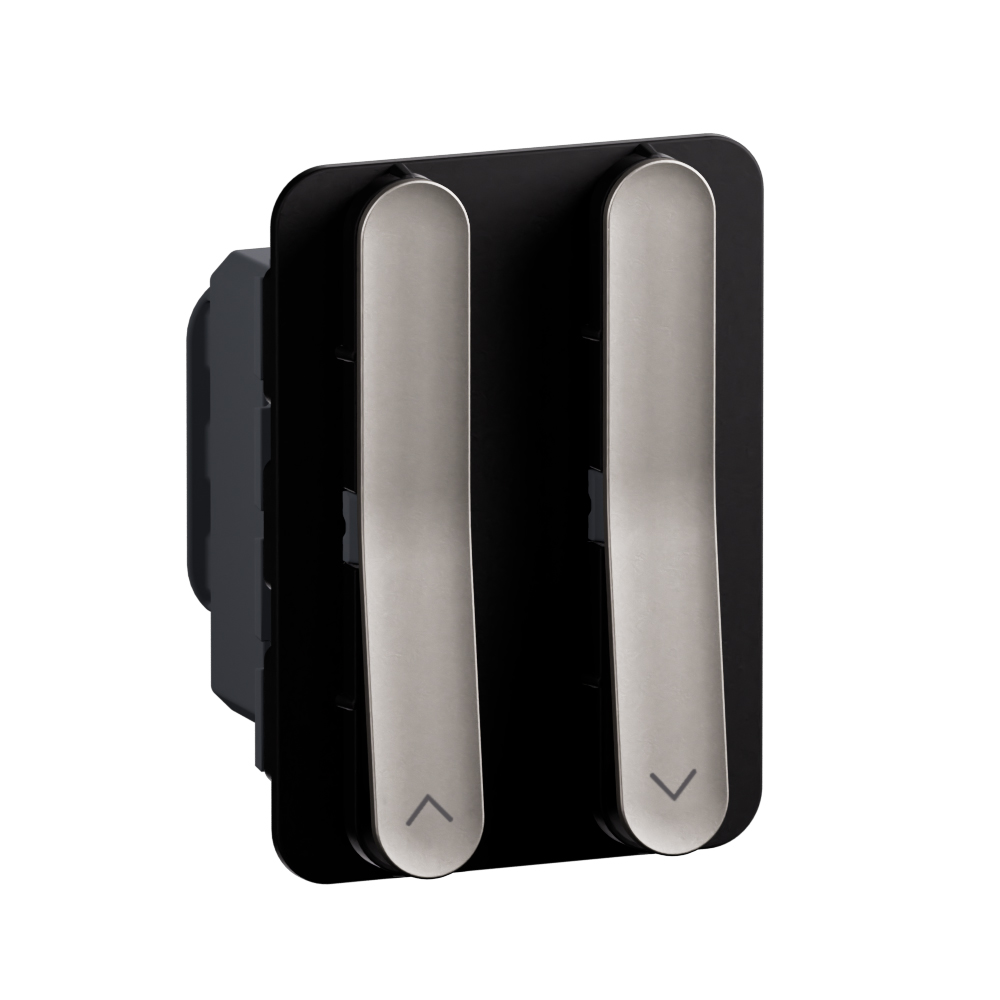

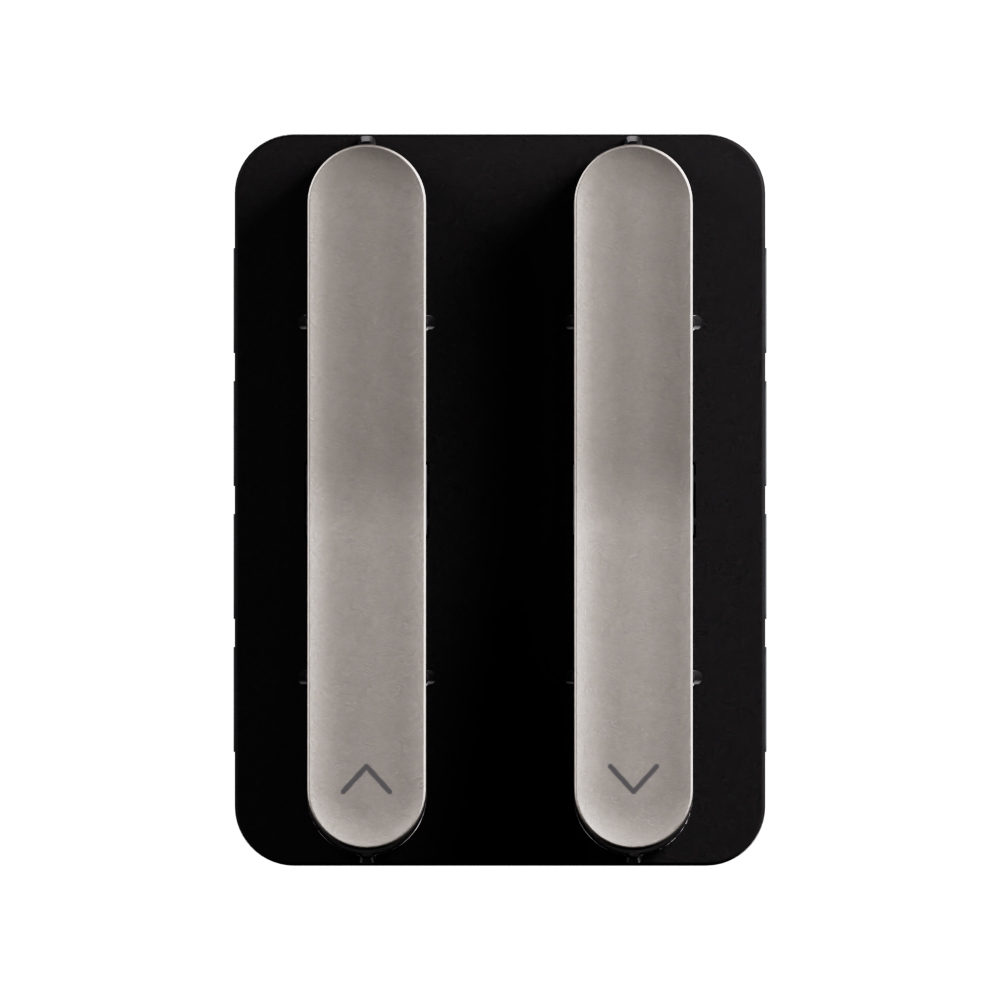

Arteor Advance - 2 modules 1 way double slim switch for electric shutter - 2-pole rocker, 250V AC, 10A - Matt titanium finish

Arteor Advance Legrand

Arteor Advance - 2 modules 1 way double slim switch for electric shutter - 2-pole rocker, 250V AC, 10A - Matt titanium finish

REF. AA26104MT EAN. 3414972728966
Allows convenient control of electric shutter with a 2-pole, 1-way rocker switch optimized for venetian blinds. Its slender 2-module format ensures ergonomic integration. Matt titanium finish and screw-type terminals.
Download product sheet
Finition :
Model :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of electric shutter with a 2-pole, 1-way rocker switch optimized for venetian blinds. Its slender 2-module format ensures ergonomic integration. Matt titanium finish and screw-type terminals.

Product characteristics
  • Two-module, 2M form factor for modular integration in domestic switching systems
  • Matt titanium lacquered thermoplastic front for a smooth, low-glare technical finish
  • Dedicated window blind switch for venetian blinds, 1-way, 2-pole rocker with 2 buttons
  • Rated 10A, 250V AC with screwed terminals (0.75mm² to 1.5mm², flexible or rigid) for secure, reliable connections
  • Slender double switch geometry with low-angle ergonomics for precise electric shutter control and elegant wall integration
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Titanium with a smooth matte finish
  • The slender format offers unique ergonomics with a low angle of 3.5° for optimal and elegant integration into the environment

Technical characteristics

For venetian blinds Yes
For roller blinds No
Assembly arrangement Modular device for domestic switching devices
Model Switch 2-pole
Number of poles 2
Method of operation Rocker
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Type of fastening Engage (snap)
Connection type Screwed terminal
Colour Titanium
Transparent No
Label space/information surface Yes
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 2
Number of modules (module system) 2
Device width 45 mm
Device height 65 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 5
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
