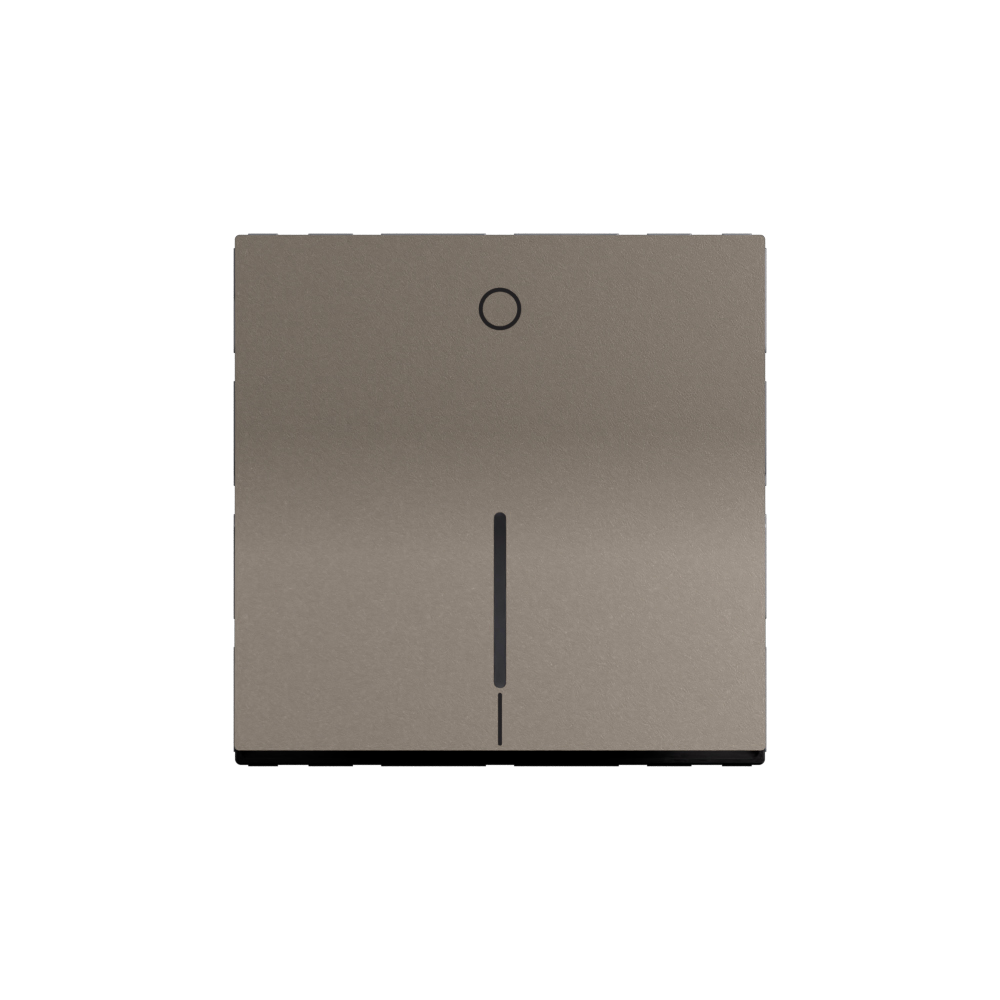

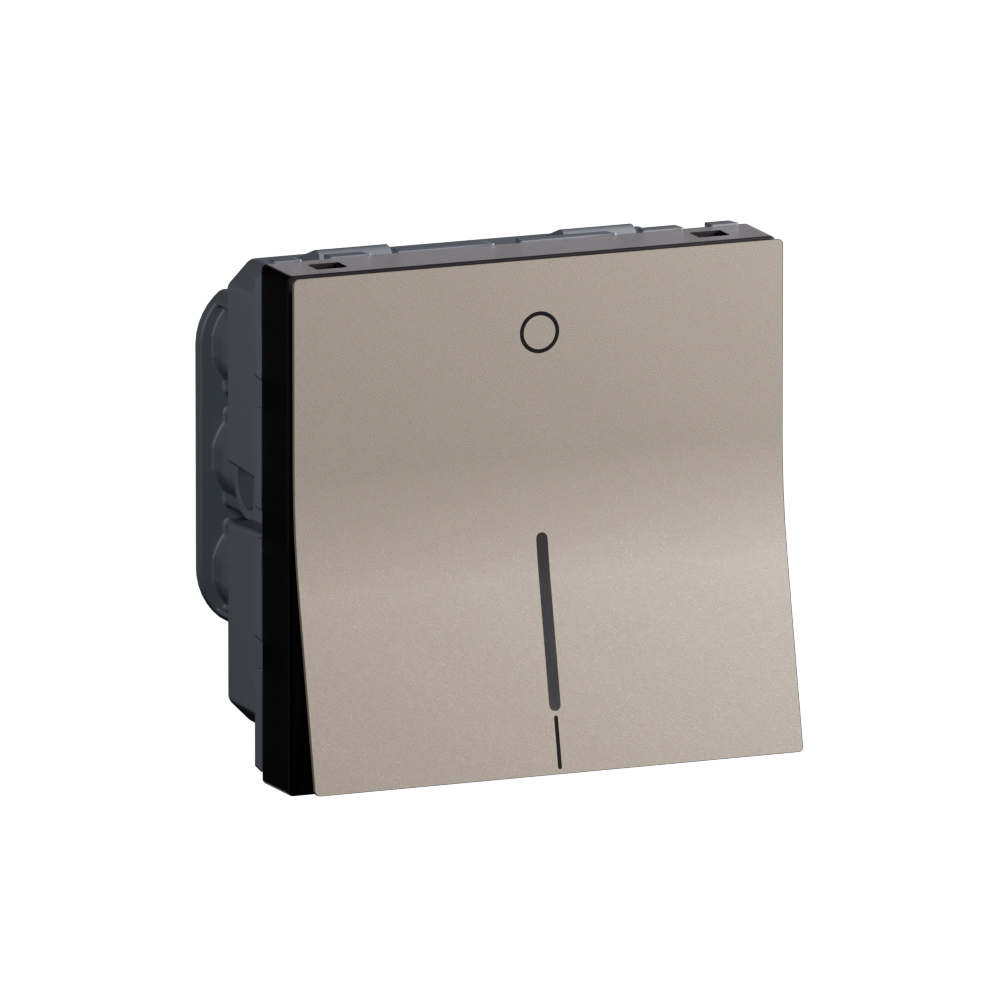

Arteor Advance - 2 modules 1 way 20AX double pole switch with LED indicator champagne - 250V AC 20AX - Matt thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 2 modules 1 way 20AX double pole switch with LED indicator champagne - 250V AC 20AX - Matt thermoplastic IP20

REF. AC21113CH EAN. 3414972923453
Offers a gentle touch for effortless light control with smooth operation, reliable 20AX double-pole switching at 250V AC, and a built-in LED indicator. Its 2-module design with screw terminals and champagne matt finish.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth operation, reliable 20AX double-pole switching at 250V AC, and a built-in LED indicator. Its 2-module design with screw terminals and champagne matt finish.

Product characteristics
  • Two-module, 1-way, 20AX double-pole switch for reliable isolation and lighting control in modular domestic installations
  • Champagne (gold) matt lacquered finish in the Arteor Advance range for a premium, coordinated aesthetic
  • Integrated indicator for clear visual status feedback of the switching circuit
  • 20AX AC 250V rating suitable for switching full rated current on inductive and resistive SBL loads and LED circuits
  • Screw-type terminals for 0.75mm² to 1.5mm² flexible or rigid conductors, IP20 IK02, operating temperature -5° C to 35° C for robust indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Gold
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 60 mm
Built-in depth 43.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
