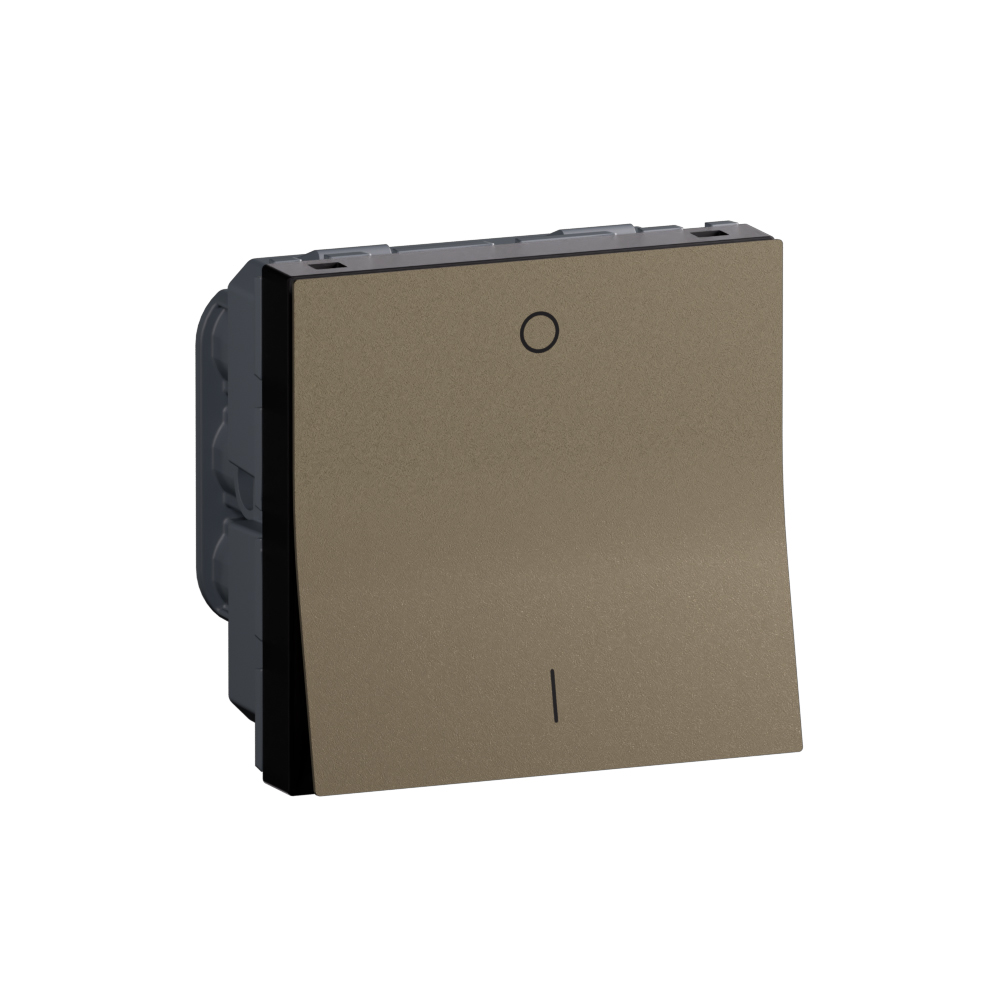

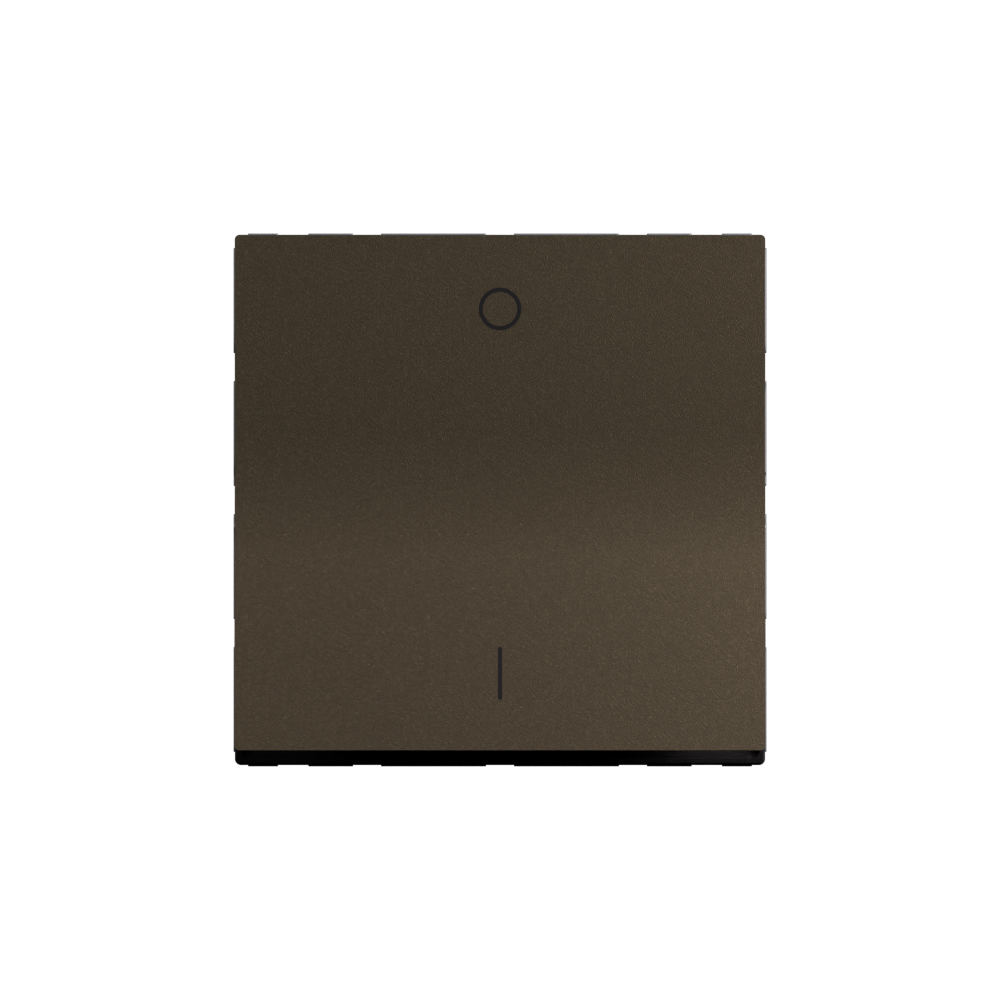

Arteor Advance - 2 modules 1 way 20AX double pole switch dark bronze - 2M modular rocker - 250V AC 20AX - Matt thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 2 modules 1 way 20AX double pole switch dark bronze - 2M modular rocker - 250V AC 20AX - Matt thermoplastic IP20

REF. AC21111DB EAN. 3414972923309
Offers a gentle touch for effortless light control, with 20AX double-pole rating for inductive, resistive, and LED loads. Dark bronze matt thermoplastic finish and 2-module format ensure robust, elegant integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control, with 20AX double-pole rating for inductive, resistive, and LED loads. Dark bronze matt thermoplastic finish and 2-module format ensure robust, elegant integration.

Product characteristics
  • Two-module, 1-way, 20AX double-pole switch module for domestic lighting control circuits
  • Dark bronze, matt lacquered thermoplastic finish for a premium, coordinated aesthetic
  • Rocker/button actuator engineered for smooth, low-effort operation and precise switching
  • 20A rating at 250V AC, suitable for switching the full rated current on inductive and resistive SBL loads and LED lighting
  • IP20 modular device (2x45.1mm) with screw terminals for 0.75mm² to 1.5mm² flexible or rigid conductors, for indoor installation in module frames
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Deep bronze finish evoking classic aesthetic
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Colour of switch operator Bronze
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
