Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet - Two gang cover frame - Pink matt thermoplastic

Arteor Advance Legrand

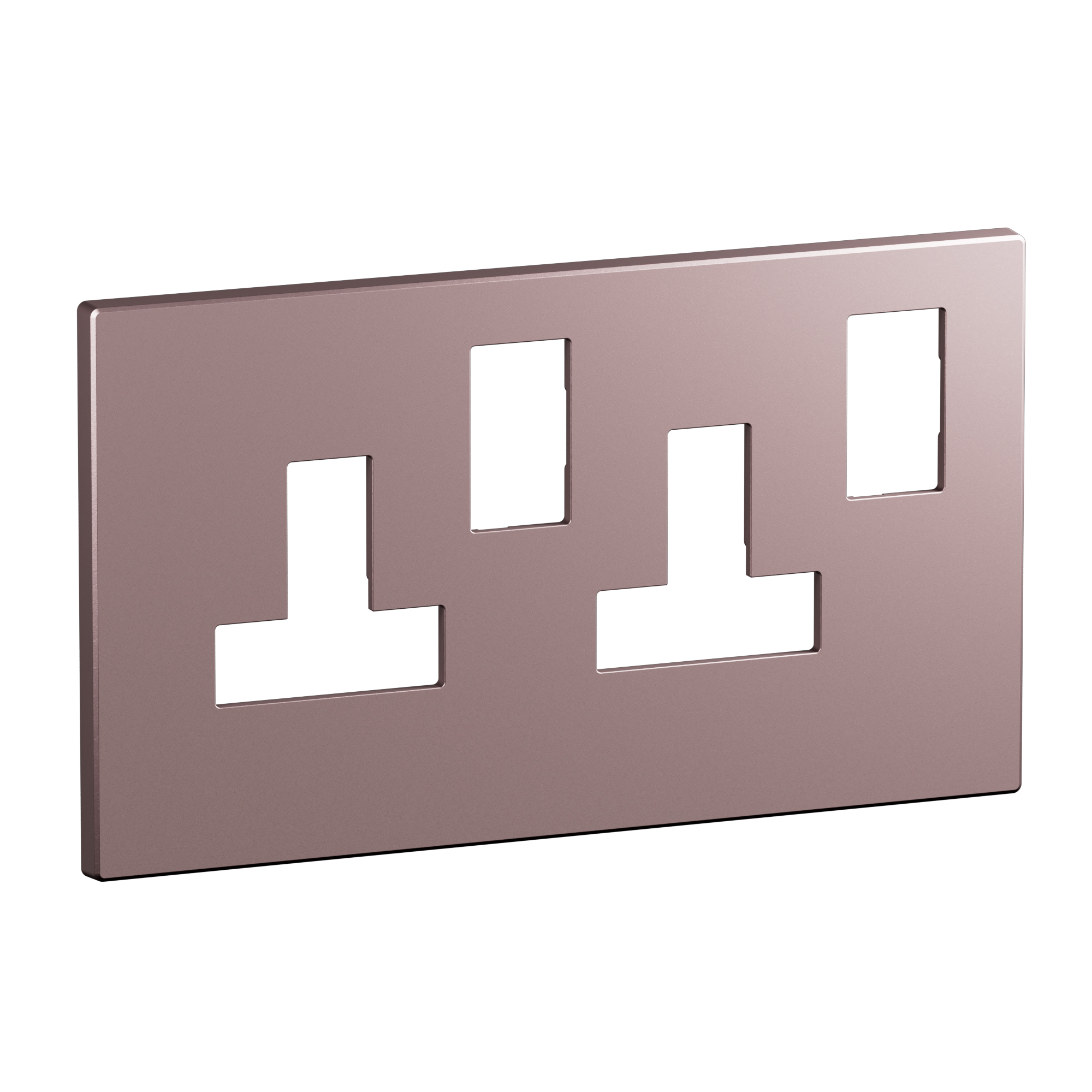

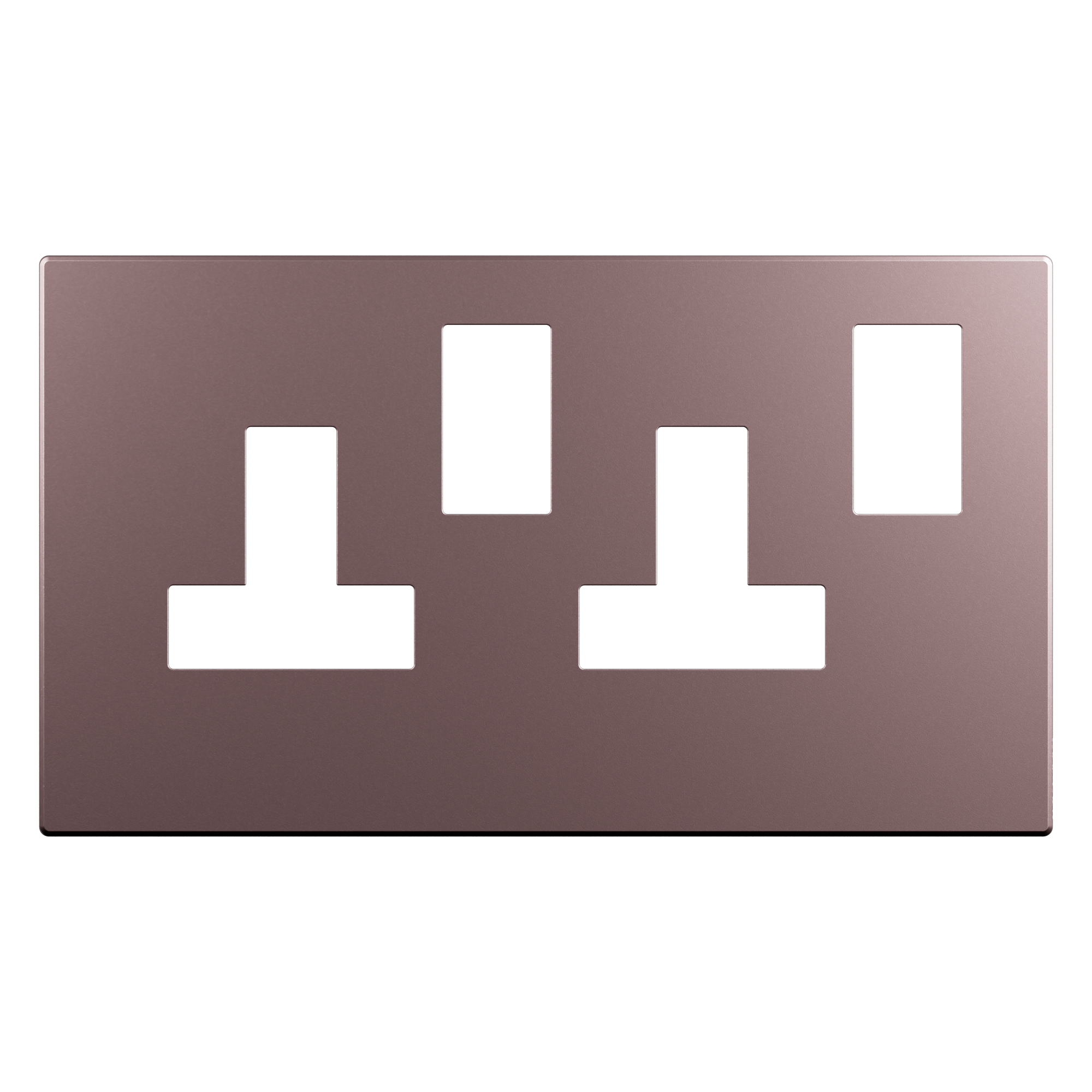

Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet - Two gang cover frame - Pink matt thermoplastic

REF. AA1101RS EAN. 3414972918800
This 2 gang plate for British Standard 13A twin switched socket outlet rose combines a slender monobloc design with durable, halogen-free thermoplastic construction. Its lacquered matt pink finish offers a minimalist aesthetic.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for British Standard 13A twin switched socket outlet rose combines a slender monobloc design with durable, halogen-free thermoplastic construction. Its lacquered matt pink finish offers a minimalist aesthetic.

Product characteristics
  • Two-gang horizontal cover frame for British Standard 13A twin switched socket outlets, providing two units in a 4 modules configuration
  • Rose (pink) matt lacquered finish delivering a subtle blush aesthetic for premium interior applications
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Slender monobloc design with snap-on fastening for precise flush-mounted installation and minimalist appearance
  • Impact resistance IK02 with 157mmx90mmx8mm dimensions and -5° C to 35° C operating temperature range, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Pink finish evoking subtle blush effect
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
