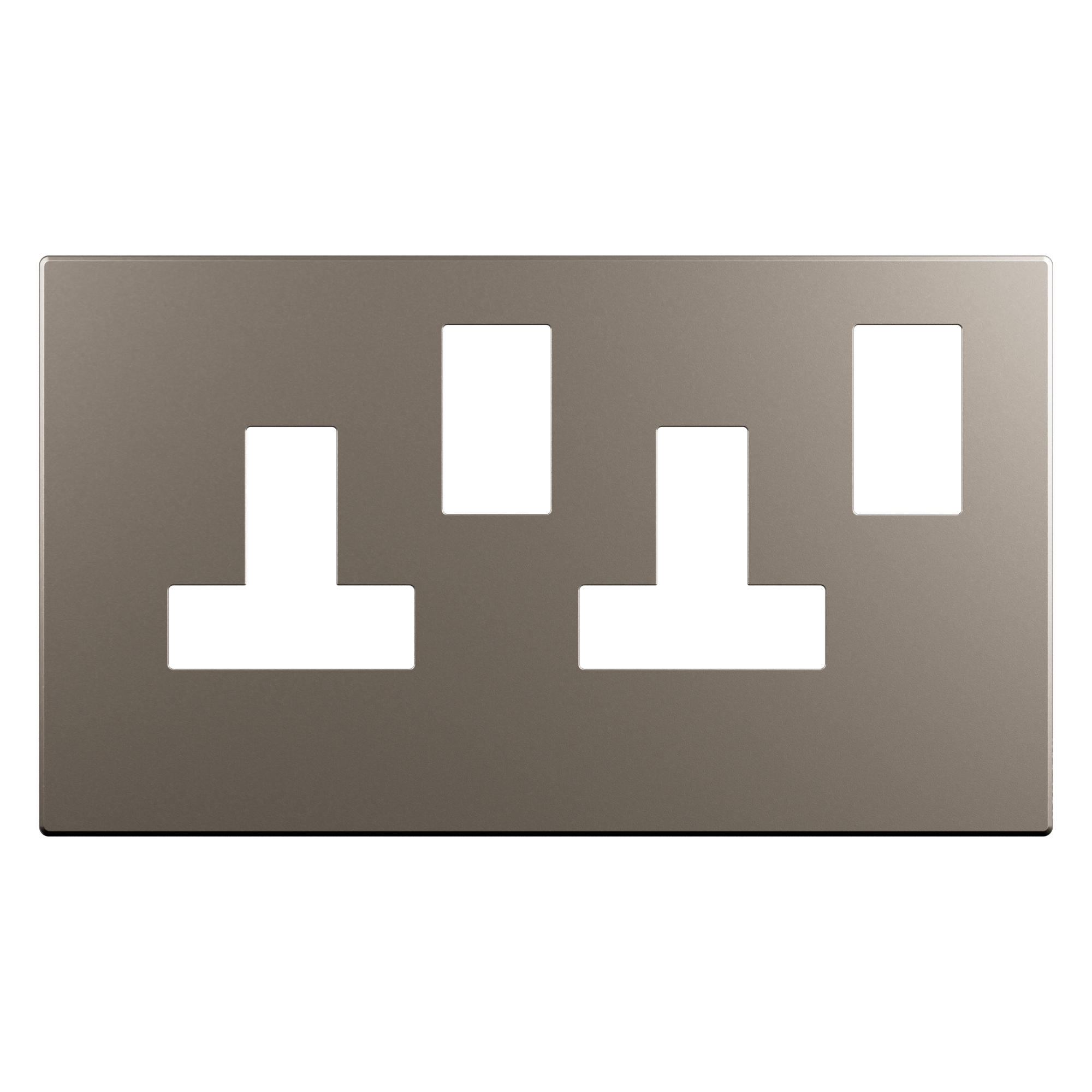

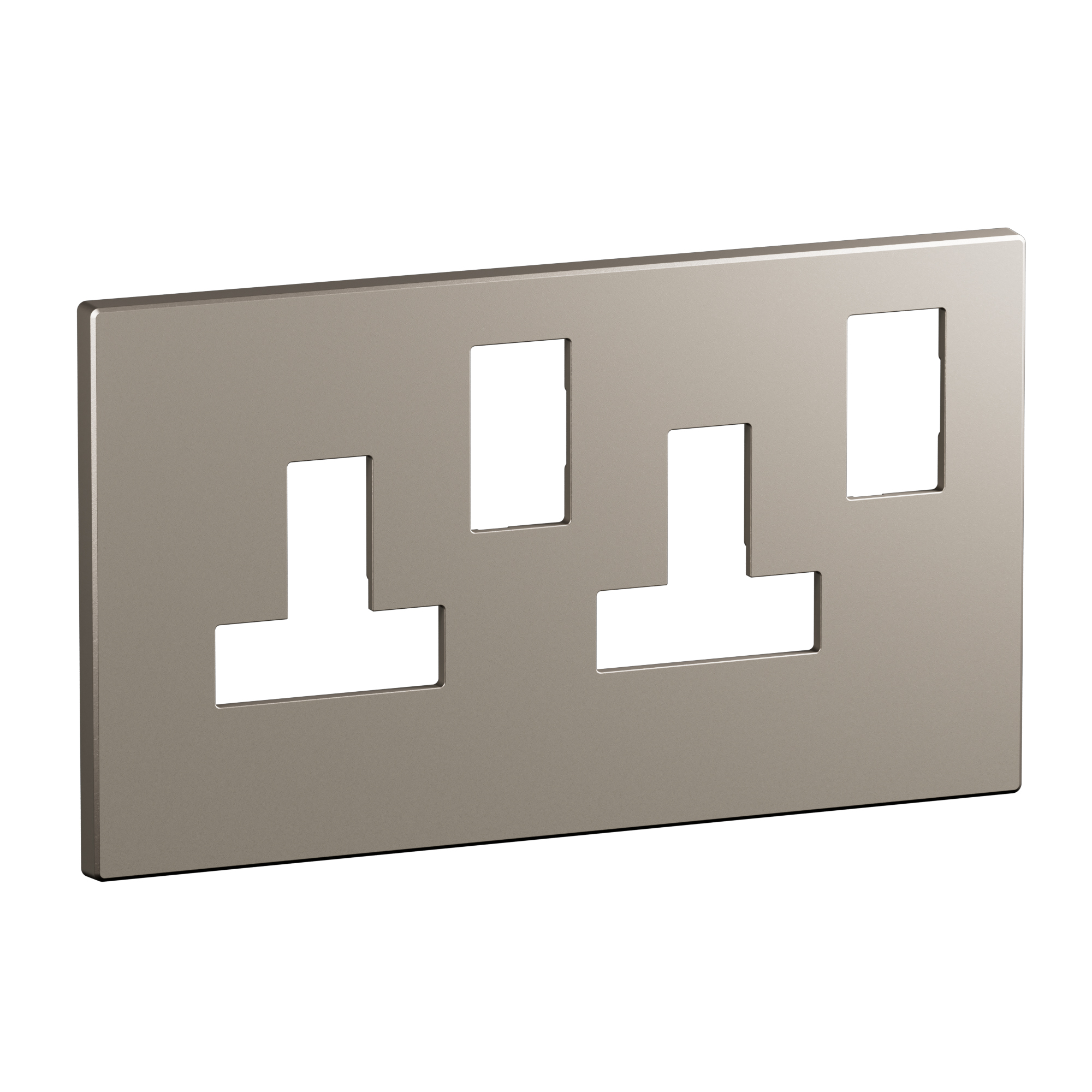

Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet - Thermoplastic matt gold finish - Flush-mounted

Arteor Advance Legrand

Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet - Thermoplastic matt gold finish - Flush-mounted

REF. AA1101CH EAN. 3414972918749
The Arteor Advance 2 gang plate for British Standard 13A twin switched socket outlets delivers minimalist design, champagne matt finish, and IK02 impact resistance.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The Arteor Advance 2 gang plate for British Standard 13A twin switched socket outlets delivers minimalist design, champagne matt finish, and IK02 impact resistance.

Product characteristics
  • Two-gang cover plate for British Standard 13A twin switched socket outlets, providing dual outlet capacity in a single horizontal frame
  • Champagne warm gray matt lacquered finish with ivory hues, delivering a refined aesthetic for premium interior applications
  • Plate manufactured from halogen-free thermoplastic polycarbonate, ensuring high mechanical stability and improved fire performance
  • Slender monobloc design with snap-on fastening for flush-mounted installation, enabling fast, precise alignment and a minimalist appearance
  • Compact 157x90x8mm profile with IK02 impact resistance and -5° C to 35° C operating temperature range, suitable for indoor residential and commercial environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
