Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet midnight blue - Aluminum matt finish

Arteor Advance Legrand

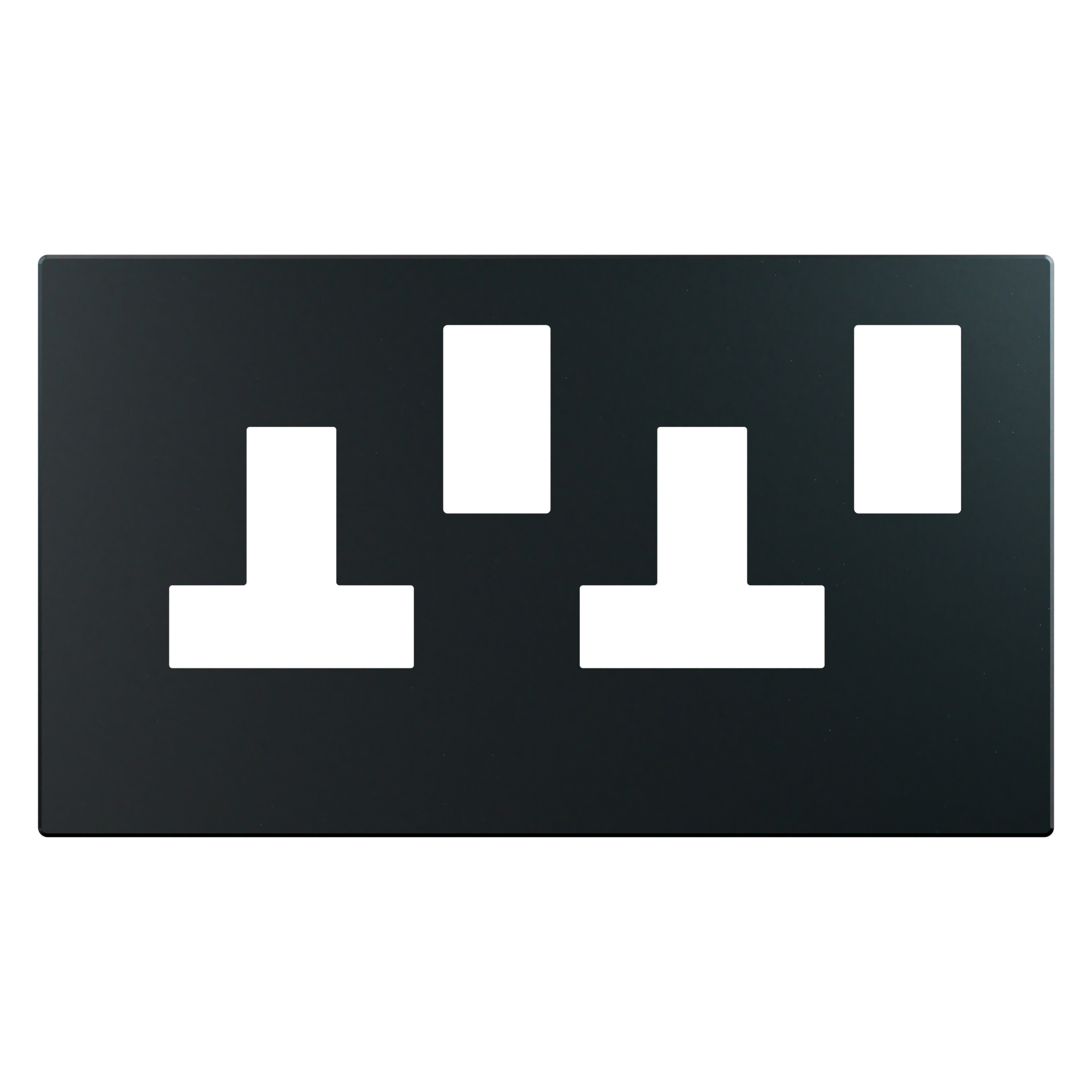

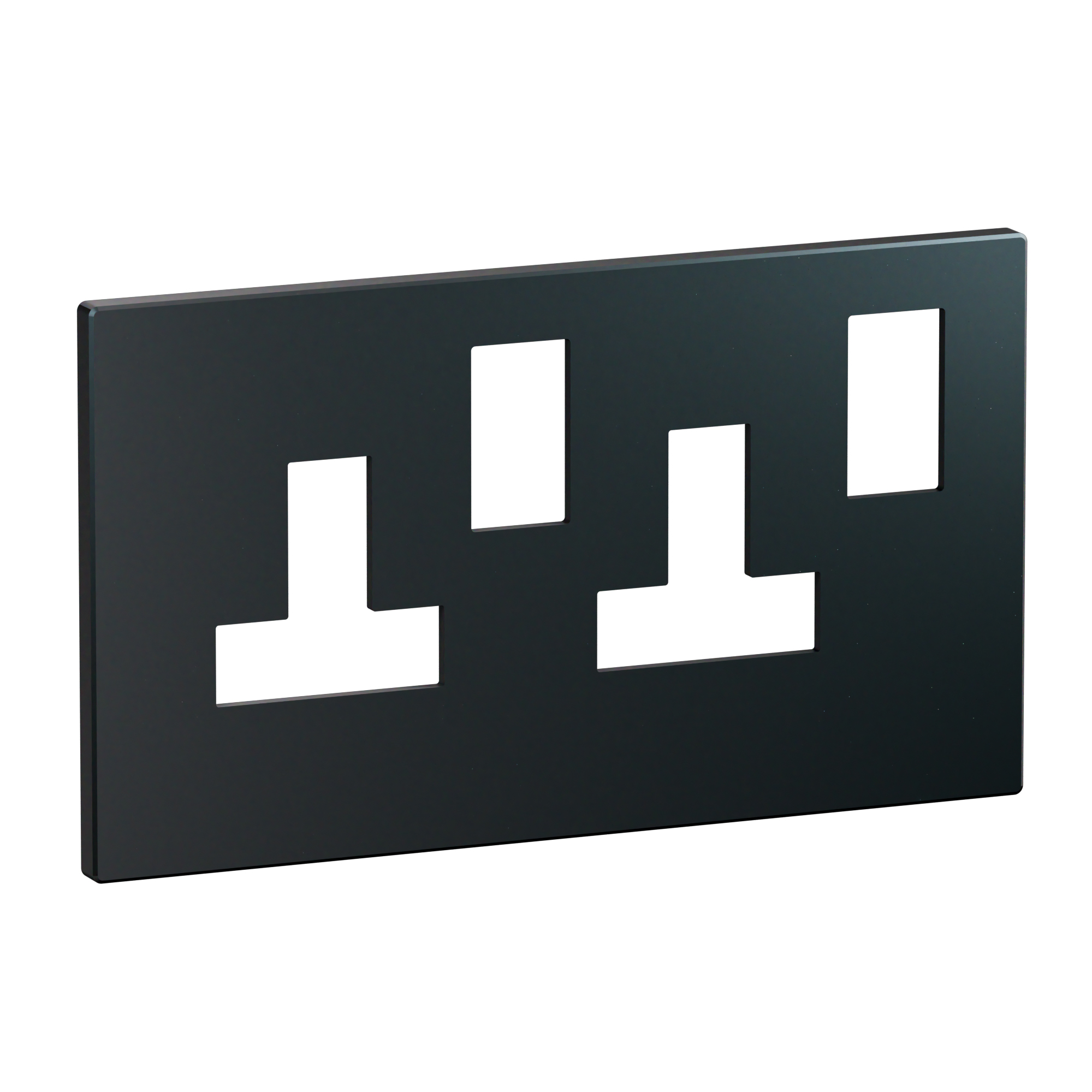

Arteor Advance - 2 gang plate for British Standard 13A twin switched socket outlet midnight blue - Aluminum matt finish

REF. AA1101NB EAN. 3414972720045
This 2 gang plate for British Standard 13A twin switched socket outlets delivers refined Arteor Advance aesthetics in Midnight Blue. Its real plain aluminum, matt lacquered finish and slender monobloc design provide a cool metallic feel
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for British Standard 13A twin switched socket outlets delivers refined Arteor Advance aesthetics in Midnight Blue. Its real plain aluminum, matt lacquered finish and slender monobloc design provide a cool metallic feel

Product characteristics
  • 2x6 modules 2-gang cover plate optimized for British Standard 13A twin switched socket outlets, horizontal 2-unit configuration (4 horizontal modules).
  • Midnight blue lacquered matte finish providing a dark blue, pearlescent metallic appearance for premium visual integration.
  • Cover plate manufactured from real plain aluminum, halogen free, delivering robust mechanical performance (IK02) and a cool metal touch.
  • Slender monobloc metal front with snap-on fastening for precise flush-mounted installation and refined, minimalist aesthetics.
  • Operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C, recommended for indoor use in residential and commercial environments.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04500EN-01.pdf pdf (0.51 Mo)
