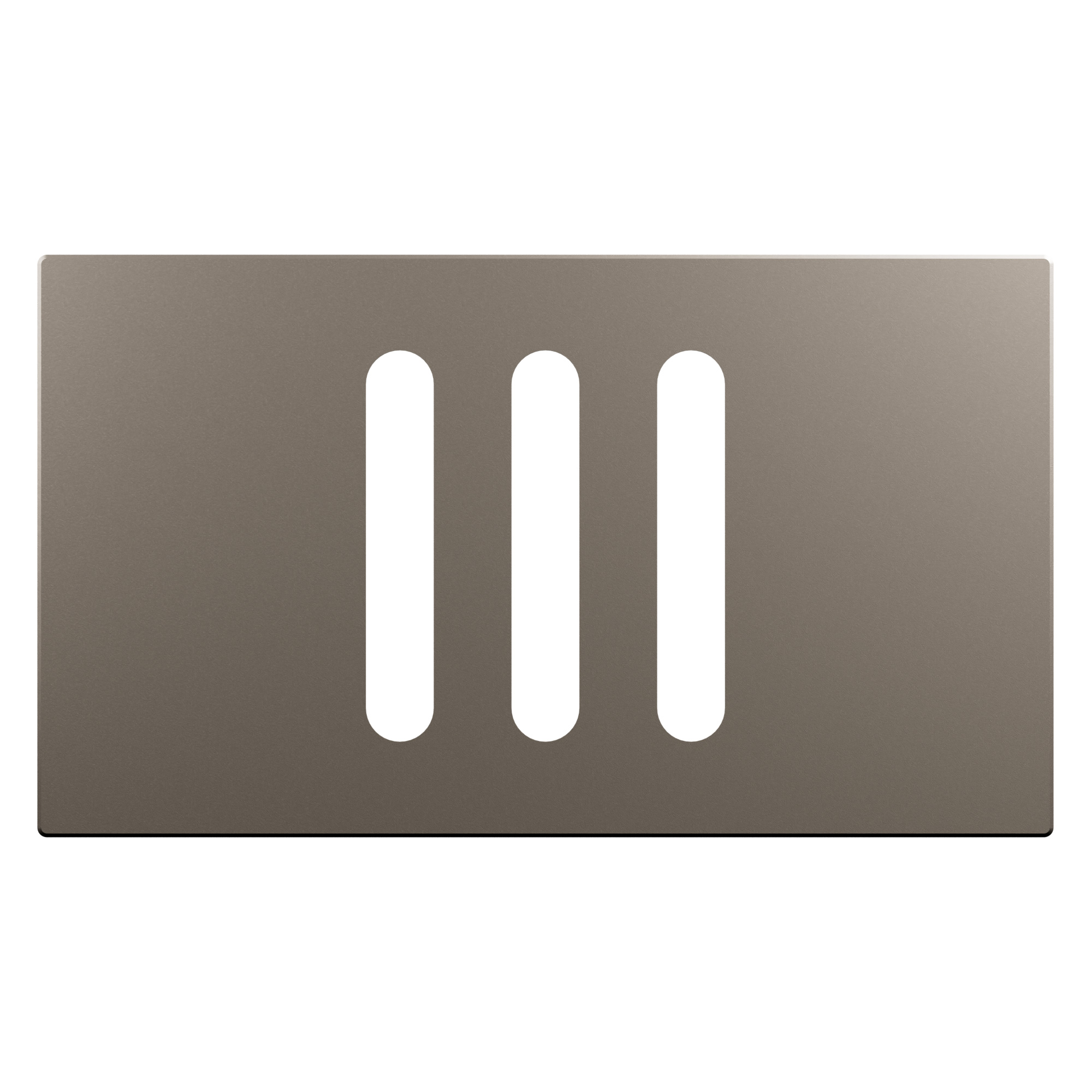

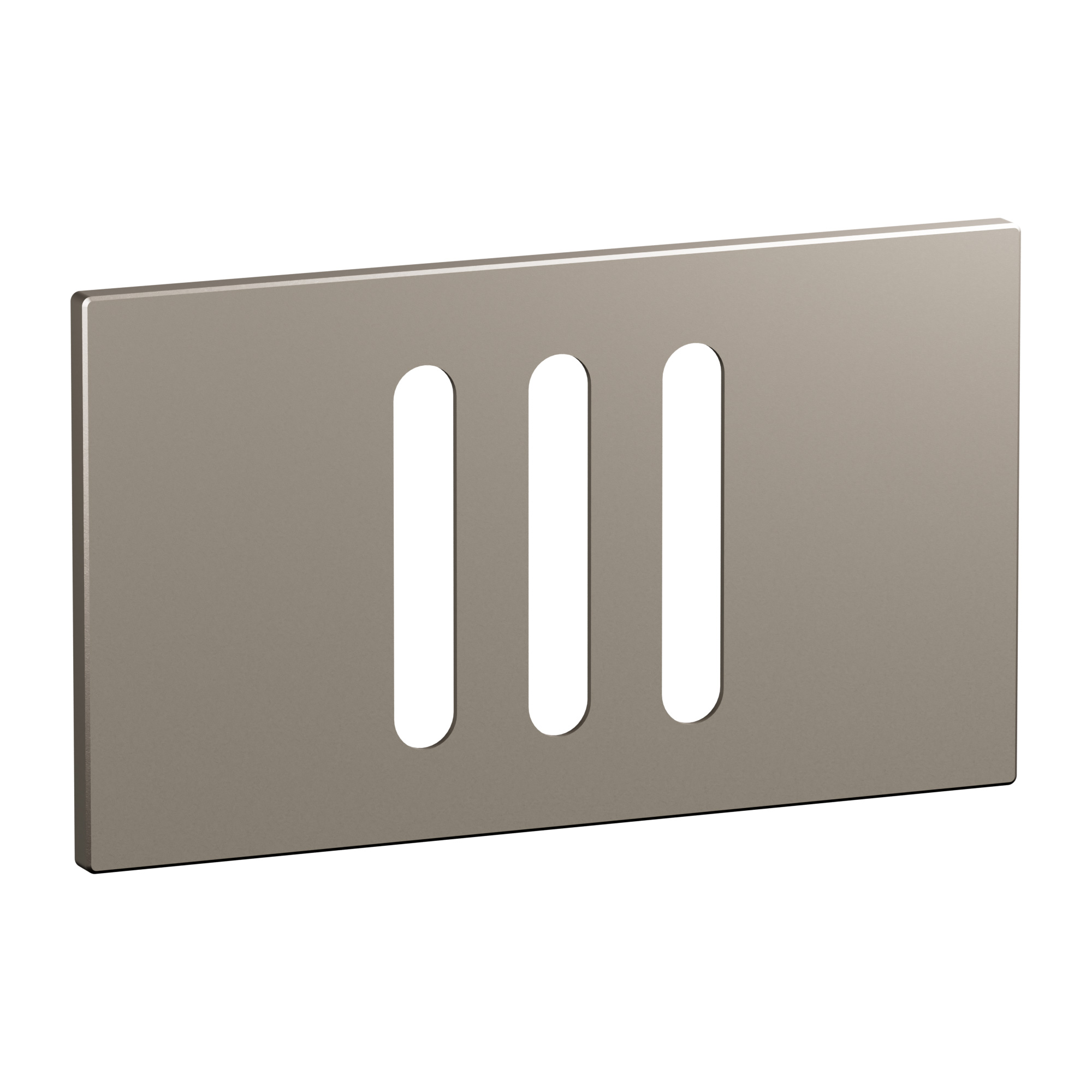

Arteor Advance - 2 gang plate for 3x1 module slender switches solid champagne - 2-gang horizontal cover frame - Matt warm gold

Arteor Advance Legrand

Arteor Advance - 2 gang plate for 3x1 module slender switches solid champagne - 2-gang horizontal cover frame - Matt warm gold

REF. AA1108SC EAN. 3414972974189
This 2 gang plate for 3x1 module slender switches in solid champagne features a warm gold matt lacquered aluminum finish. Its snap fastening and flush-mounted design ensure precise alignment. Halogen-free construction supports clean wall
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for 3x1 module slender switches in solid champagne features a warm gold matt lacquered aluminum finish. Its snap fastening and flush-mounted design ensure precise alignment. Halogen-free construction supports clean wall

Product characteristics
  • Two-gang cover frame plate for 3x1-module switches, enabling dual circuit control in a compact horizontal layout
  • Solid champagne matt lacquered aluminum finish in warm gold tone for a premium, metallic aesthetic
  • Plate made of crystal-effect polycarbonate for high dimensional stability and enhanced visual clarity
  • Slender 8.5mm profile for a low-projection, flush-mounted installation and refined wall integration
  • Snap-on fastening, flush-mounted installation, IK02 impact resistance, and -5 to 35° C operating temperature range for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance with cool sensation of metal
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
