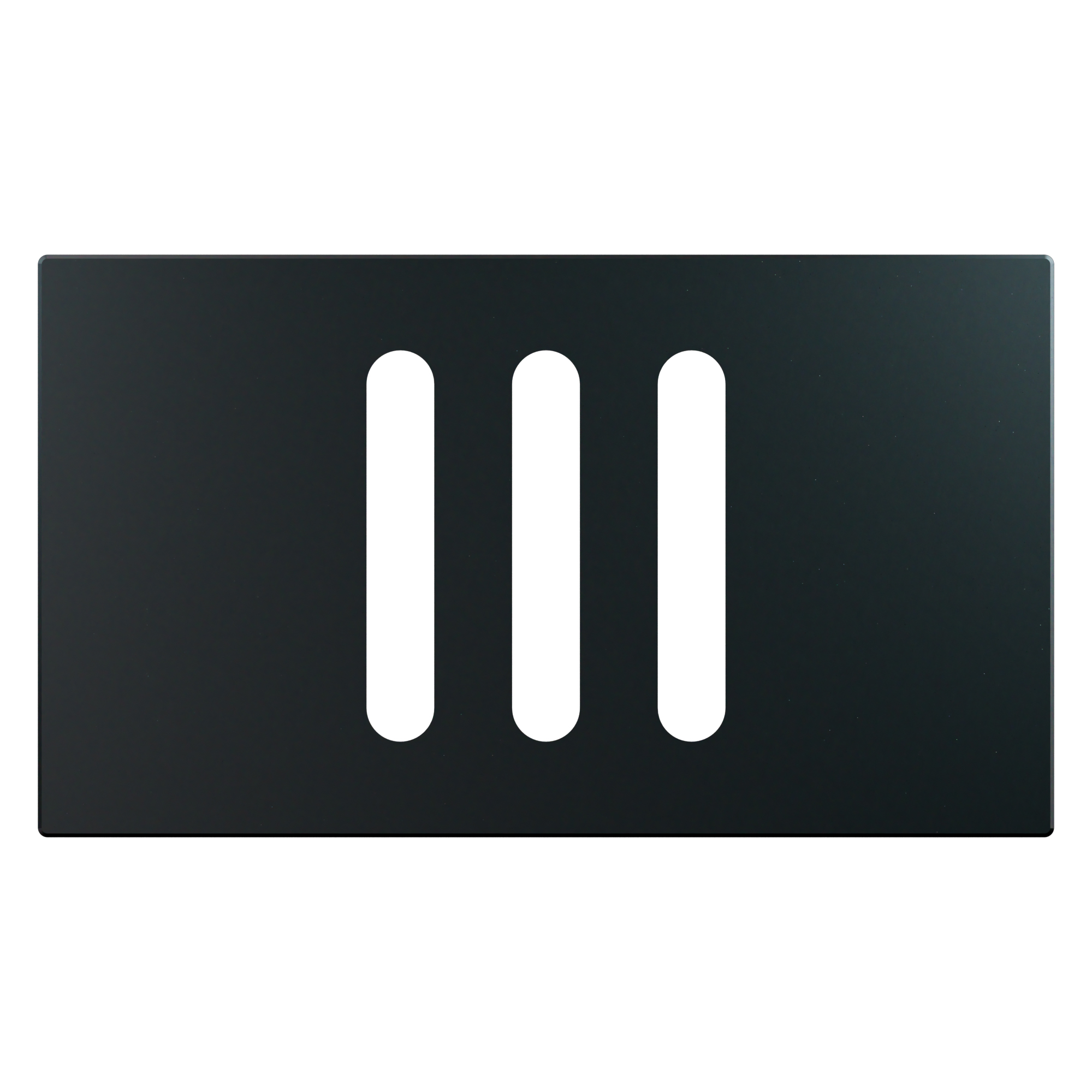

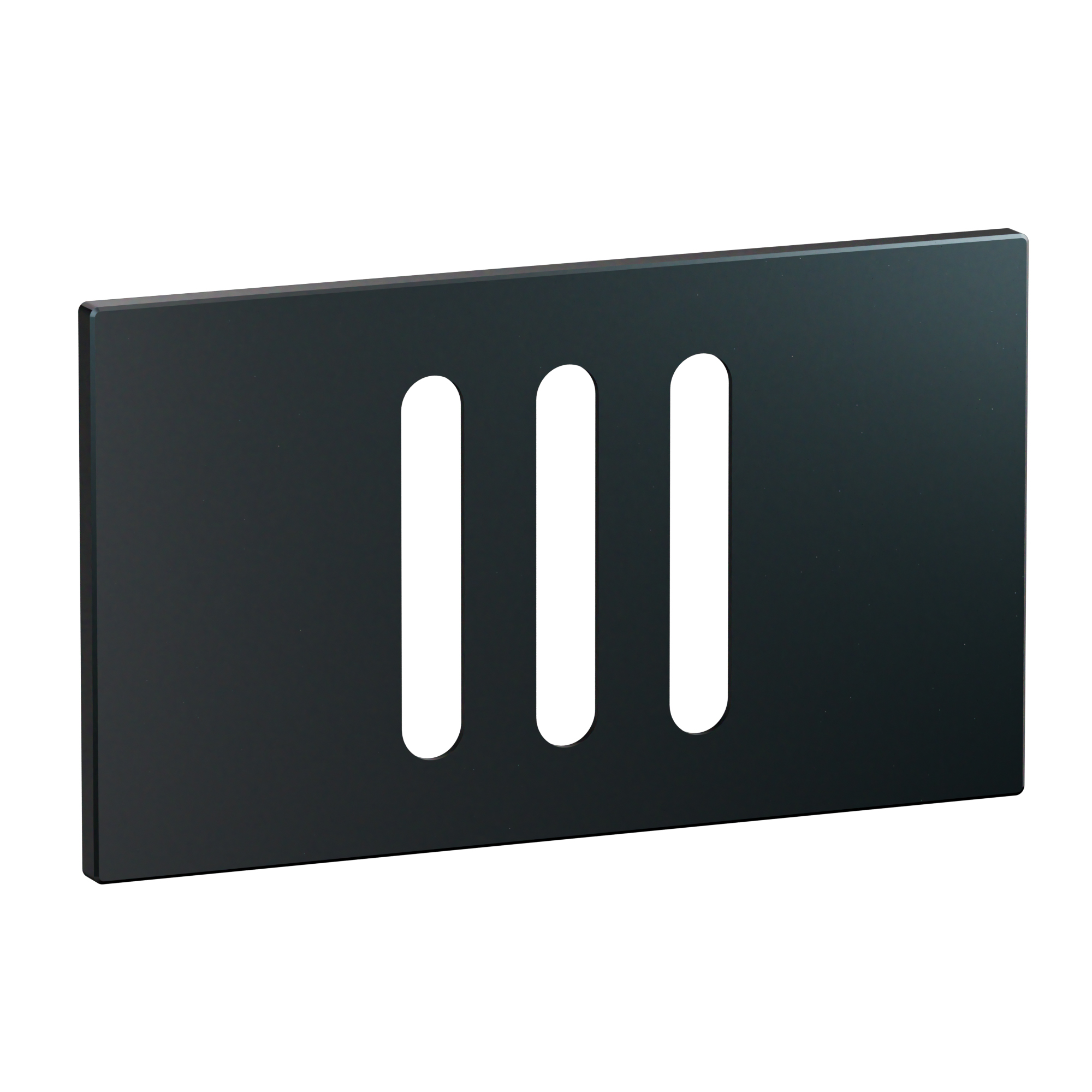

Arteor Advance - 2 gang plate for 3x1 module slender switches midnight blue - Matt lacquered aluminum - Horizontal flush-mounted frame

Arteor Advance Legrand

Arteor Advance - 2 gang plate for 3x1 module slender switches midnight blue - Matt lacquered aluminum - Horizontal flush-mounted frame

REF. AA1108NB EAN. 3414972721271
This 2 gang plate for 3x1 module slender switches in midnight blue features real plain aluminum with matt lacquered finish, halogen-free performance, snap fastening and integrated adjuster, with refined Arteor Advance pearlescent
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for 3x1 module slender switches in midnight blue features real plain aluminum with matt lacquered finish, halogen-free performance, snap fastening and integrated adjuster, with refined Arteor Advance pearlescent

Product characteristics
  • One-gang cover frame for domestic switching devices, 2-gang plate accommodating 3x1-module slender switches in horizontal configuration
  • Midnight blue lacquered finish with matt surface, delivering a dark blue pearlescent appearance suited to Arteor Advance aesthetics
  • Plate manufactured from real plain aluminum, halogen free metal construction for robust, long-life flush-mounted installations
  • Ultra-slender 8.5mm depth design providing a refined, minimalist profile that blends straight and organic lines for high-end interiors
  • Snap-on fastening without mounting grid, 157mm width, operating temperature -5 to 35° C, recommended for indoor flush wall mounting only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
