Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket midnight blue - Plain aluminum matt finish - Snap-on flush mounting

Arteor Advance Legrand

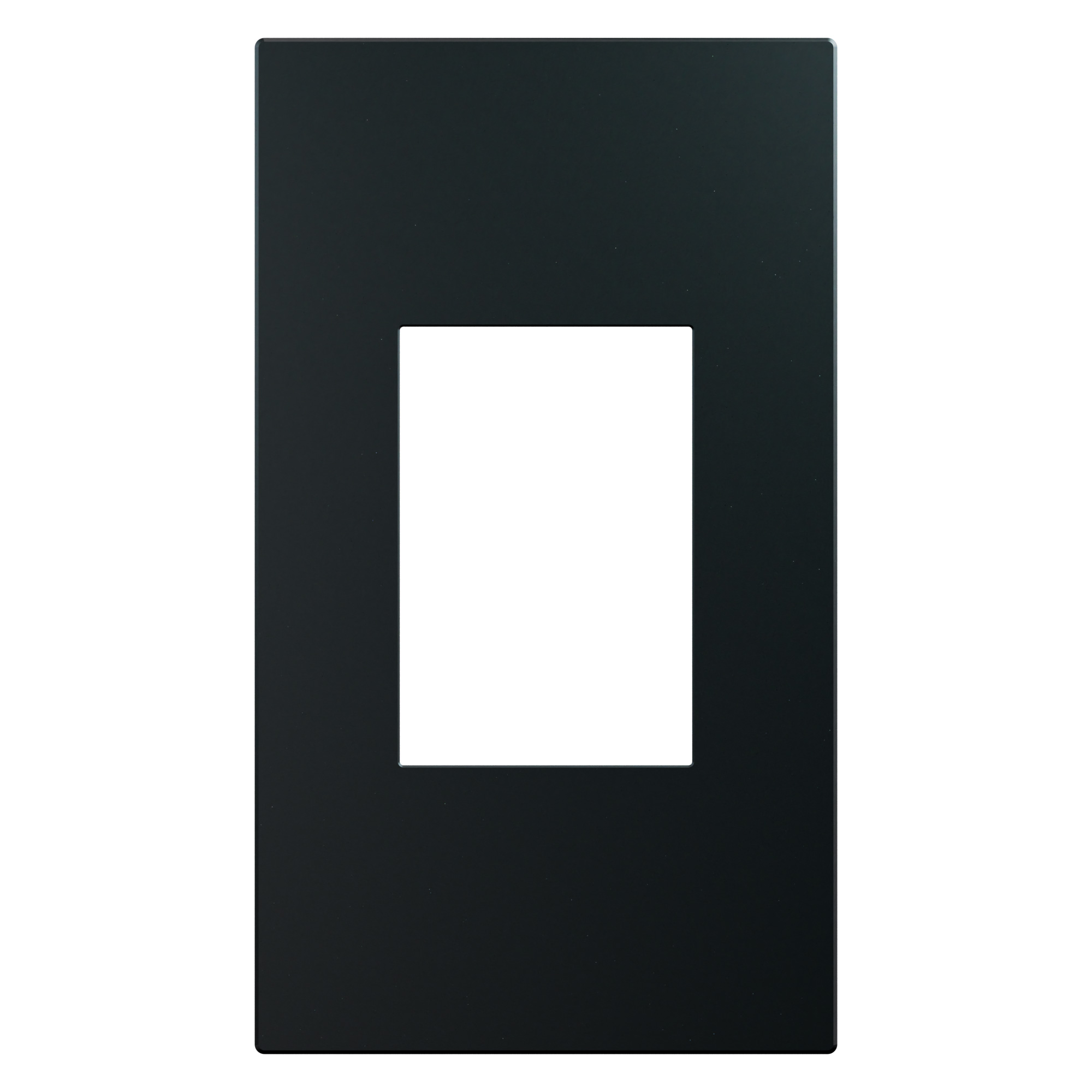

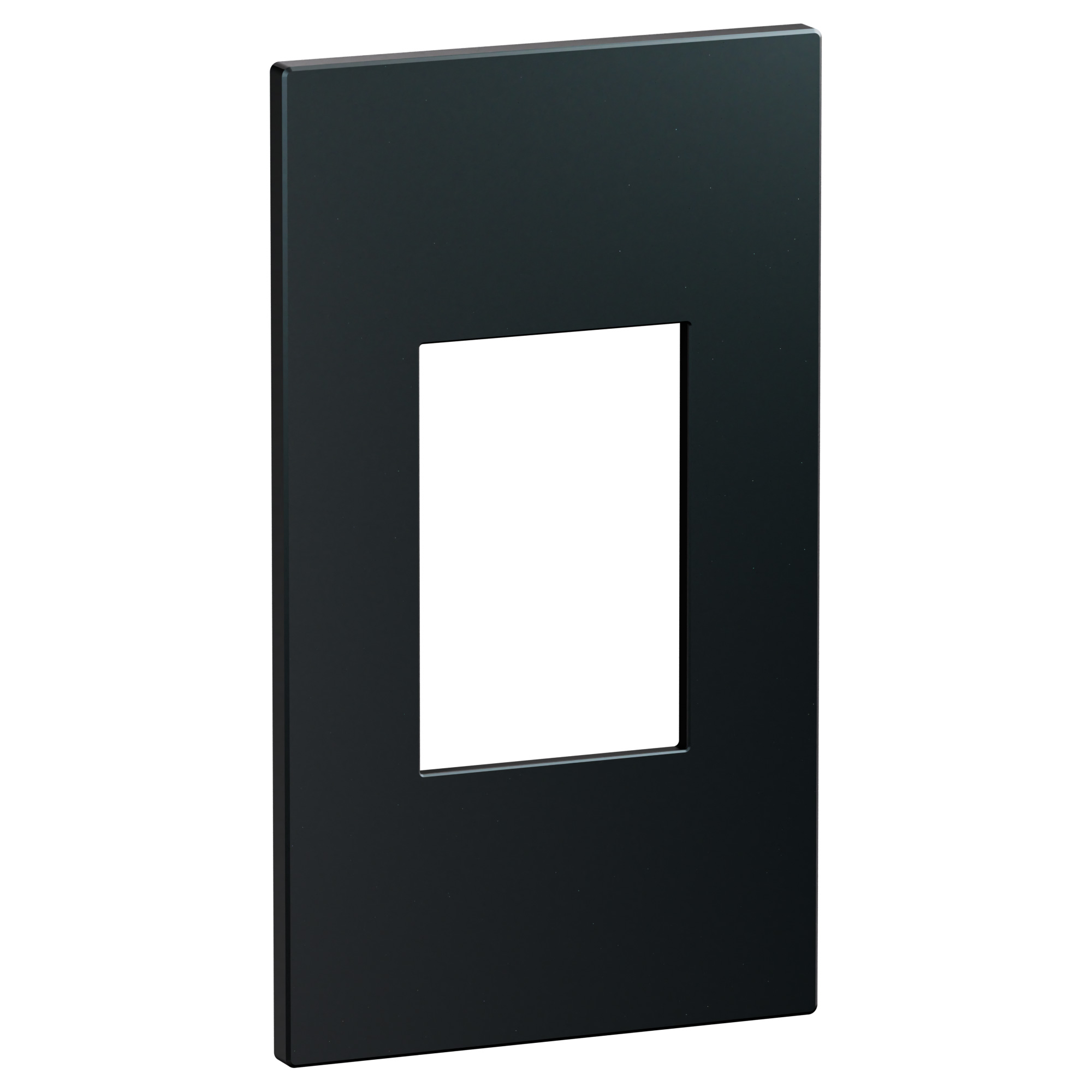

Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket midnight blue - Plain aluminum matt finish - Snap-on flush mounting

REF. AC1136NB EAN. 3414972977456
This 2 gang plate for 3M 45A DP switch or shaver socket combines real aluminum construction with a refined square design. Its midnight blue matt metallic finish and integrated adjuster ensure precise, flush-mounted vertical installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for 3M 45A DP switch or shaver socket combines real aluminum construction with a refined square design. Its midnight blue matt metallic finish and integrated adjuster ensure precise, flush-mounted vertical installation.

Product characteristics
  • Two-gang plate providing three vertical modules, optimized for 45A DP switch or shaver socket configurations
  • Midnight blue lacquered matte finish for a refined, contemporary aesthetic matching Arteor Advance ranges
  • Plate manufactured from real plain aluminum, halogen-free metal for enhanced durability and premium feel
  • Square cover frame geometry enabling modularity and flexibility in a compact, flush-mounted configuration
  • Snap-on metal plate with 157x90x8mm dimensions and integrated adjuster for precise indoor wall installation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation Yes
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Built-in width 45.2 mm
Built-in height 67.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
