Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket - Matt titanium thermoplastic - Minimalist square design

Arteor Advance Legrand

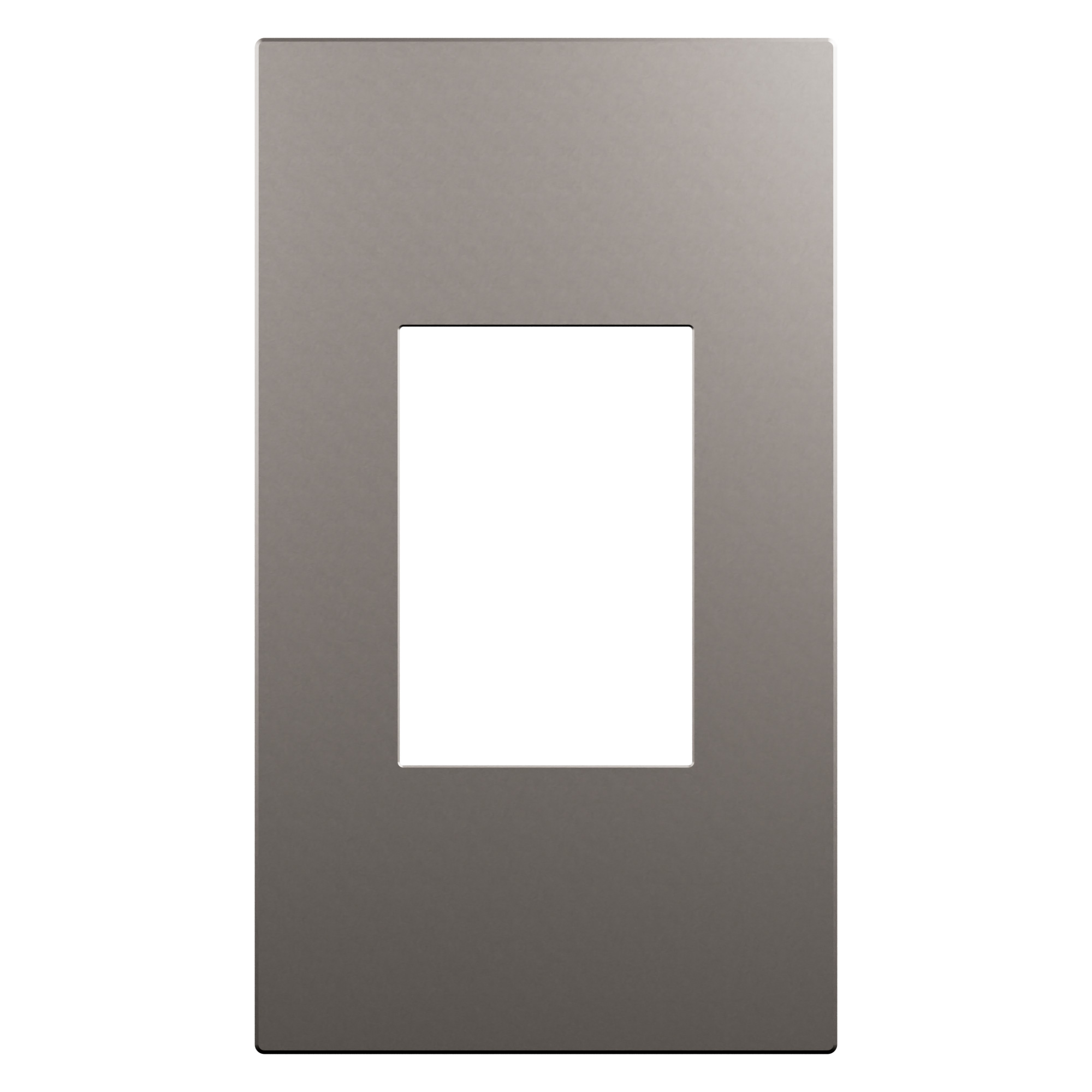

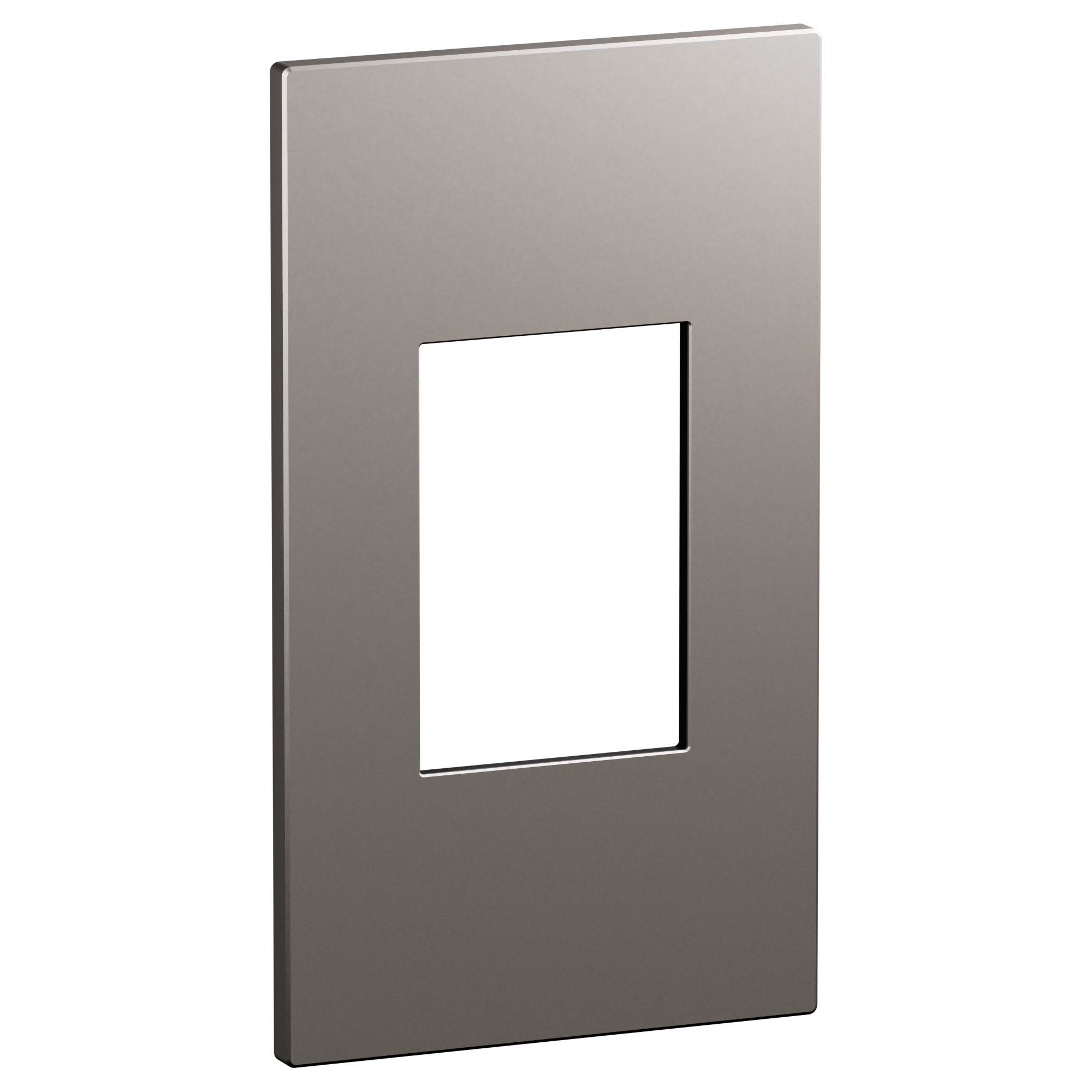

Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket - Matt titanium thermoplastic - Minimalist square design

REF. AC1136MT EAN. 3414972977395
This 2 gang plate for 3M 45A DP switch or shaver socket features a minimalist square design in matt titanium. Its halogen-free thermoplastic construction and IK02 impact resistance ensure durability.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for 3M 45A DP switch or shaver socket features a minimalist square design in matt titanium. Its halogen-free thermoplastic construction and IK02 impact resistance ensure durability.

Product characteristics
  • Two-gang cover plate for three-module 45A DP switch or shaver socket, optimized for vertical flush-mounted installation in Arteor Advance systems
  • Matt titanium finish providing a smooth, low-glare surface for a minimalist, high-end aesthetic
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Square, compact geometry with engage (snap) fastening for modularity, flexibility, and precise alignment
  • Integrated adjuster ensures perfect wall installation; suitable for indoor use only, with dimensions 157x90x8mm and IK02 impact resistance
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Titanium with a smooth matt aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Built-in width 45.2 mm
Built-in height 67.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
