Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket dark aluminum - Real brushed aluminum matt finish - Square design

Arteor Advance Legrand

Arteor Advance - 2 gang plate for 3M 45A DP switch or shaver socket dark aluminum - Real brushed aluminum matt finish - Square design

REF. AC1136DA EAN. 3414972977272

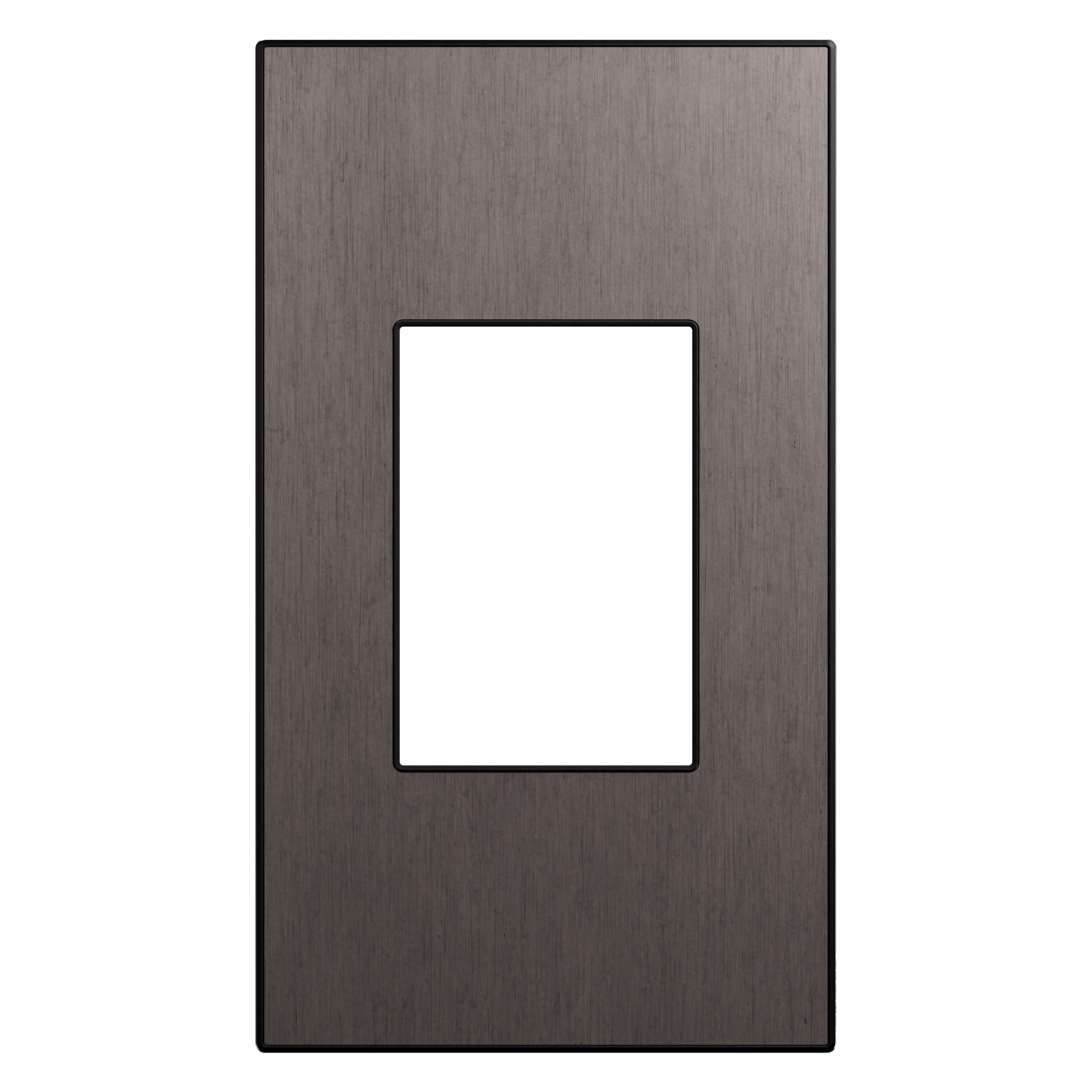

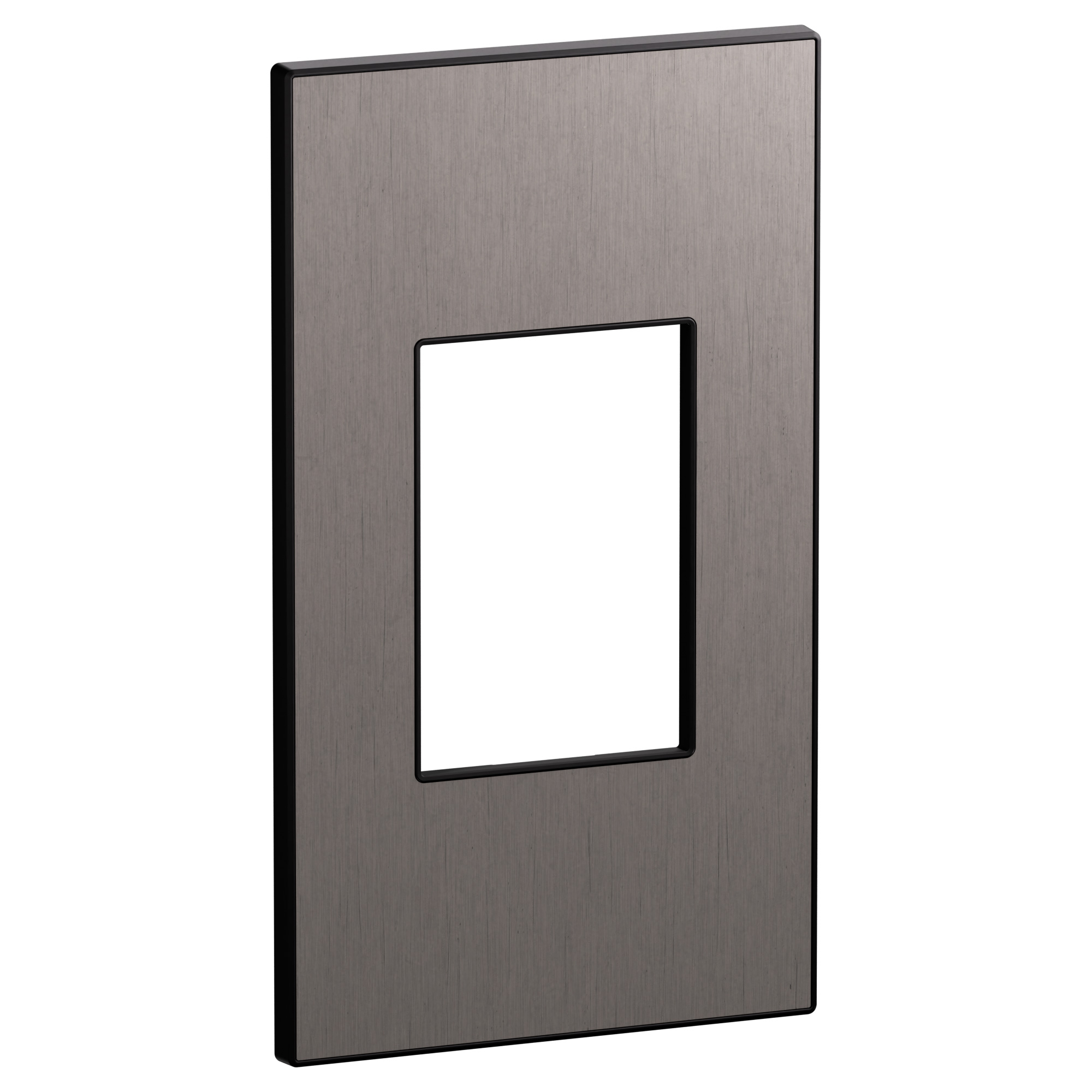

This 2 gang plate for 3M 45A DP switch or shaver socket in dark aluminium features real brushed aluminum with a matt warm gray reflection. Its square, two-gang three-module design ensures modularity and precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang plate for 3M 45A DP switch or shaver socket in dark aluminium features real brushed aluminum with a matt warm gray reflection. Its square, two-gang three-module design ensures modularity and precise flush-mounted installation.

Product characteristics
  • Two-gang plate providing three vertically aligned modules for 45A DP switch or shaver socket applications
  • Dark aluminum finish coordinated with Arteor Advance for a contemporary technical aesthetic
  • Front plates manufactured from real brushed aluminum for enhanced durability and premium material quality
  • Square geometry enabling modularity and flexibility in a compact, flush-mounted configuration
  • Matt, halogen-free cover frame with snap fastening, 157x90x8mm, IK02 impact resistance, operating from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation Yes
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Built-in width 45.2 mm
Built-in height 67.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
