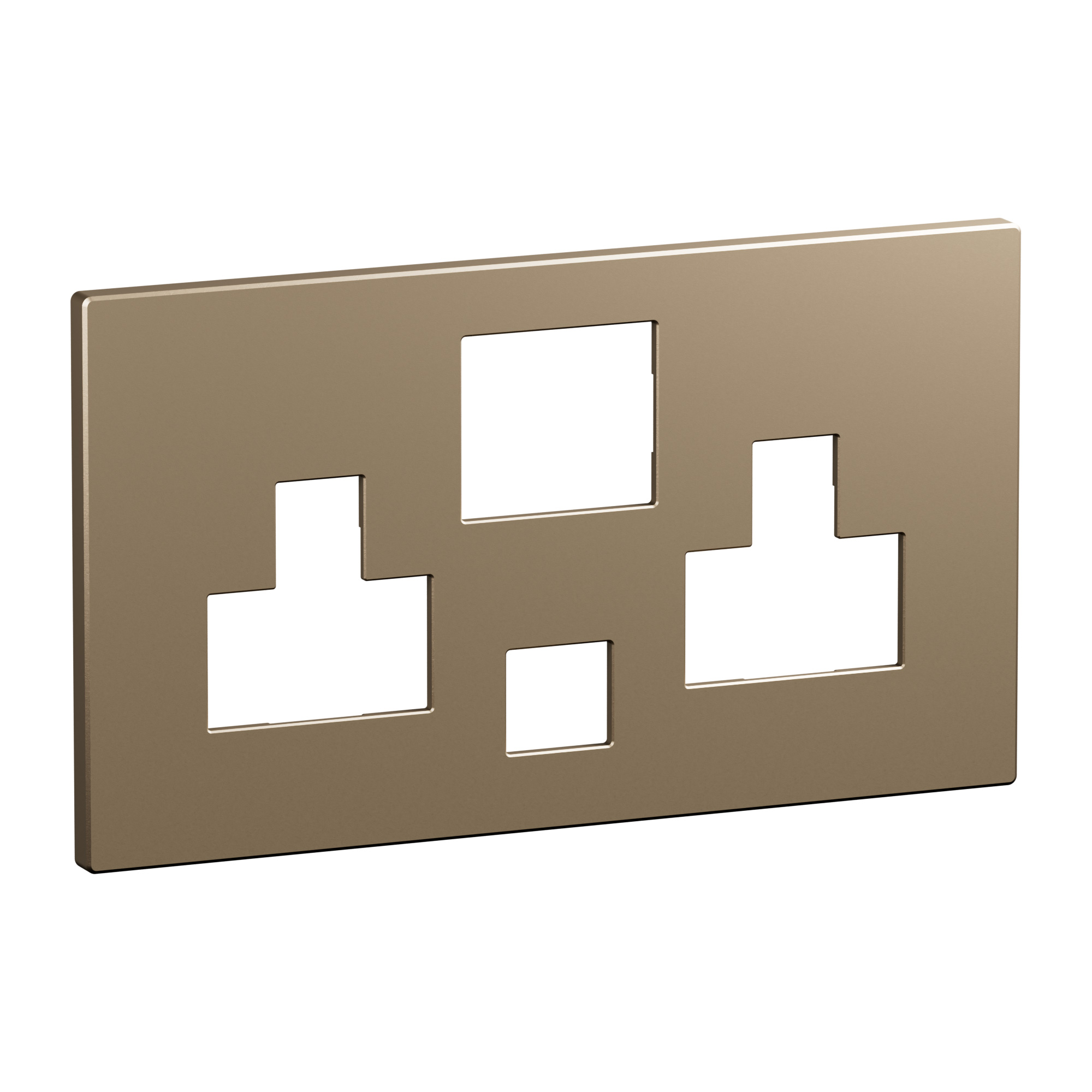

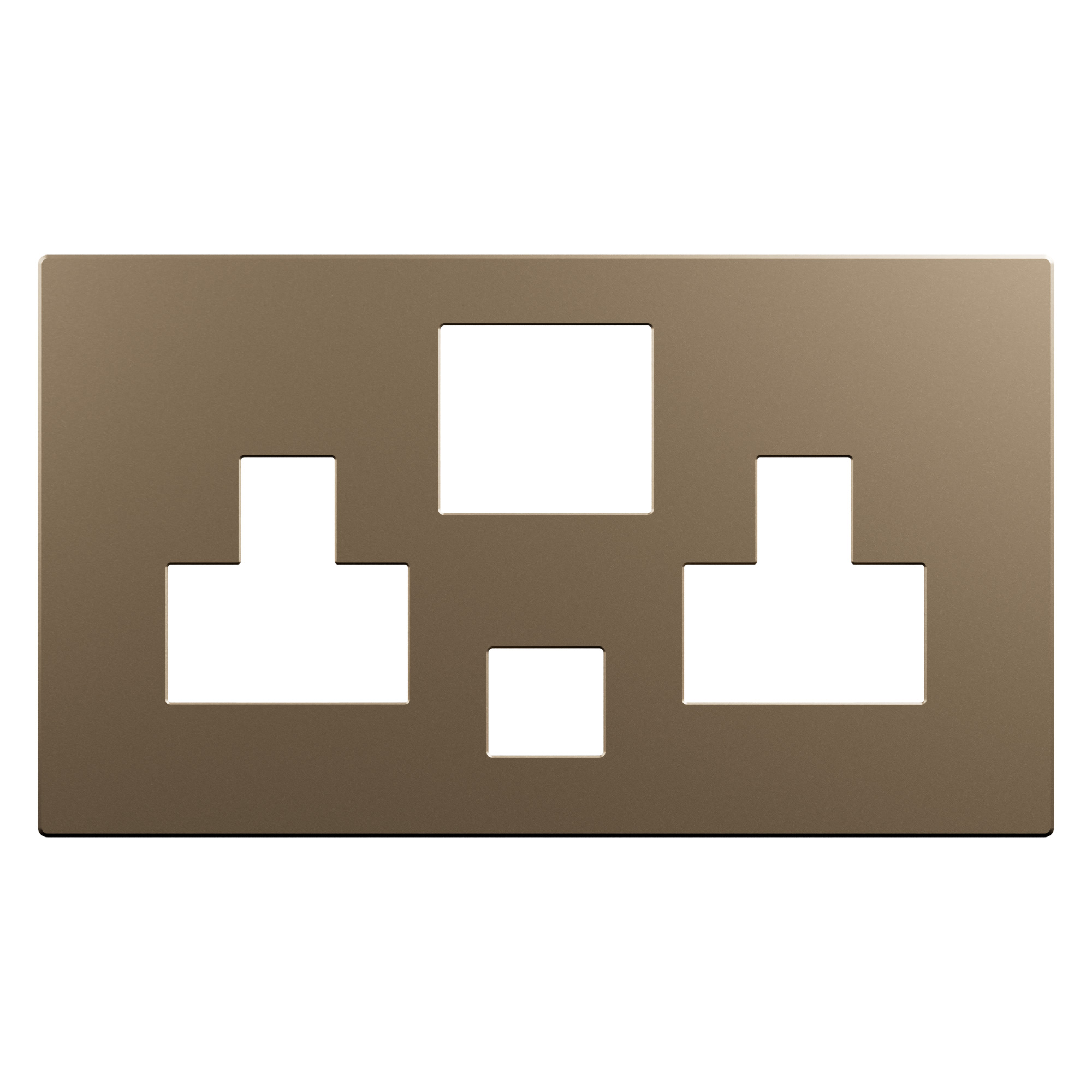

Arteor Advance - 2 gang multistandard plate for switched socket with USB 2 ports - Horizontal metal plate - Matt beige finish

Arteor Advance Legrand

Arteor Advance - 2 gang multistandard plate for switched socket with USB 2 ports - Horizontal metal plate - Matt beige finish

REF. AA1117SD EAN. 3414973055177
This 2 gang multistandard plate for switched socket with USB 2 ports in solid sand offers a minimalist, slender monobloc design and robust metal, lacquered, matt finish.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang multistandard plate for switched socket with USB 2 ports in solid sand offers a minimalist, slender monobloc design and robust metal, lacquered, matt finish.

Product characteristics
  • Two-gang multistandard cover plate for switched socket with dual USB ports, optimized for horizontal 2-unit/4 modules configurations
  • Solid sand beige, matt lacquered aluminum finish providing a metallic, mineral-inspired aesthetic aligned with Arteor Advance
  • Cover frame manufactured from lacquered aluminum, halogen free and IK02 impact rated for robust, long-term flush-mounted installations
  • Slender monobloc design with snap-on fastening for precise, low-profile integration into wall surfaces
  • Operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Sandy gold finish reminiscent of natural mineral elegance with cool sensation of metal
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Beige
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04500EN-01.pdf pdf (0.51 Mo)
