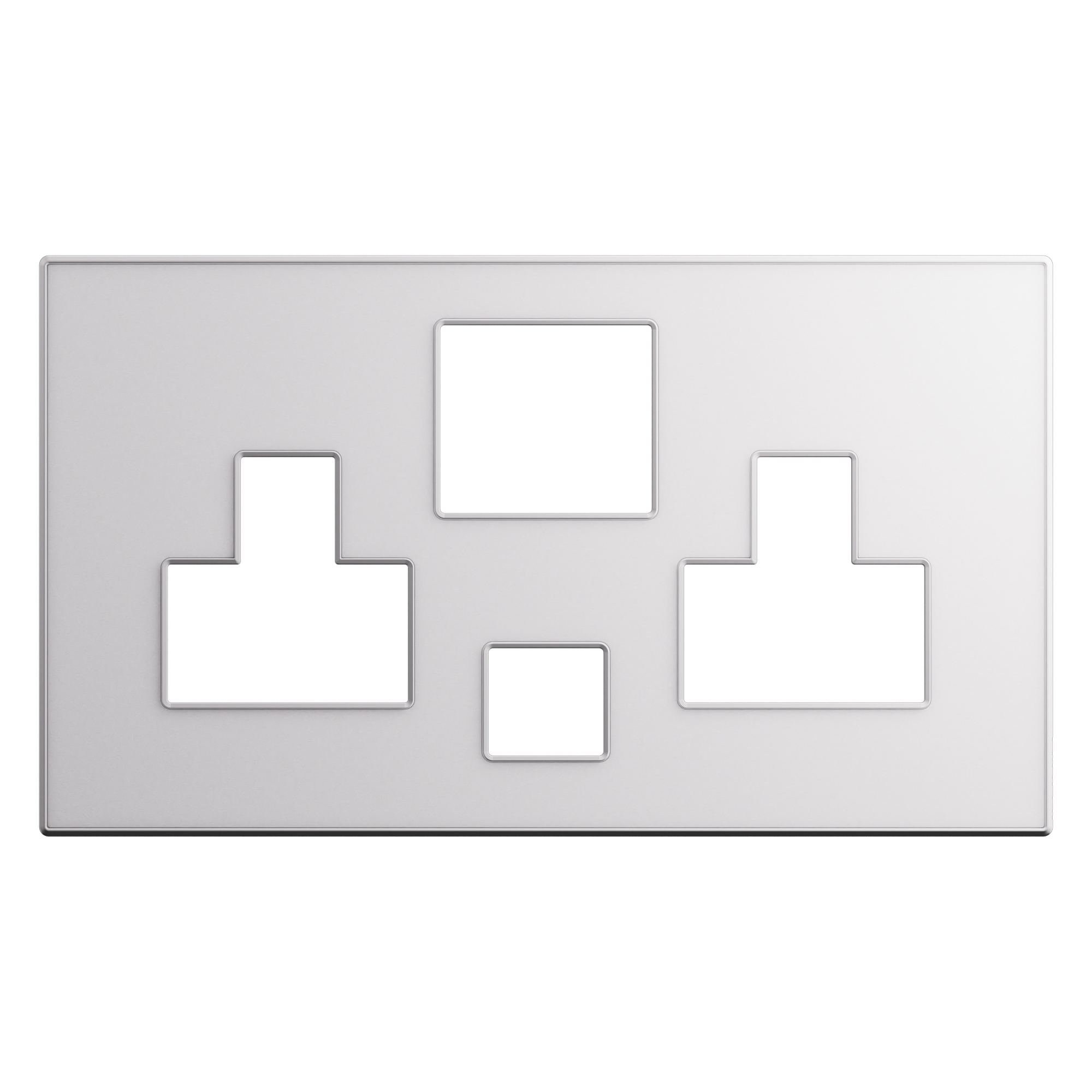

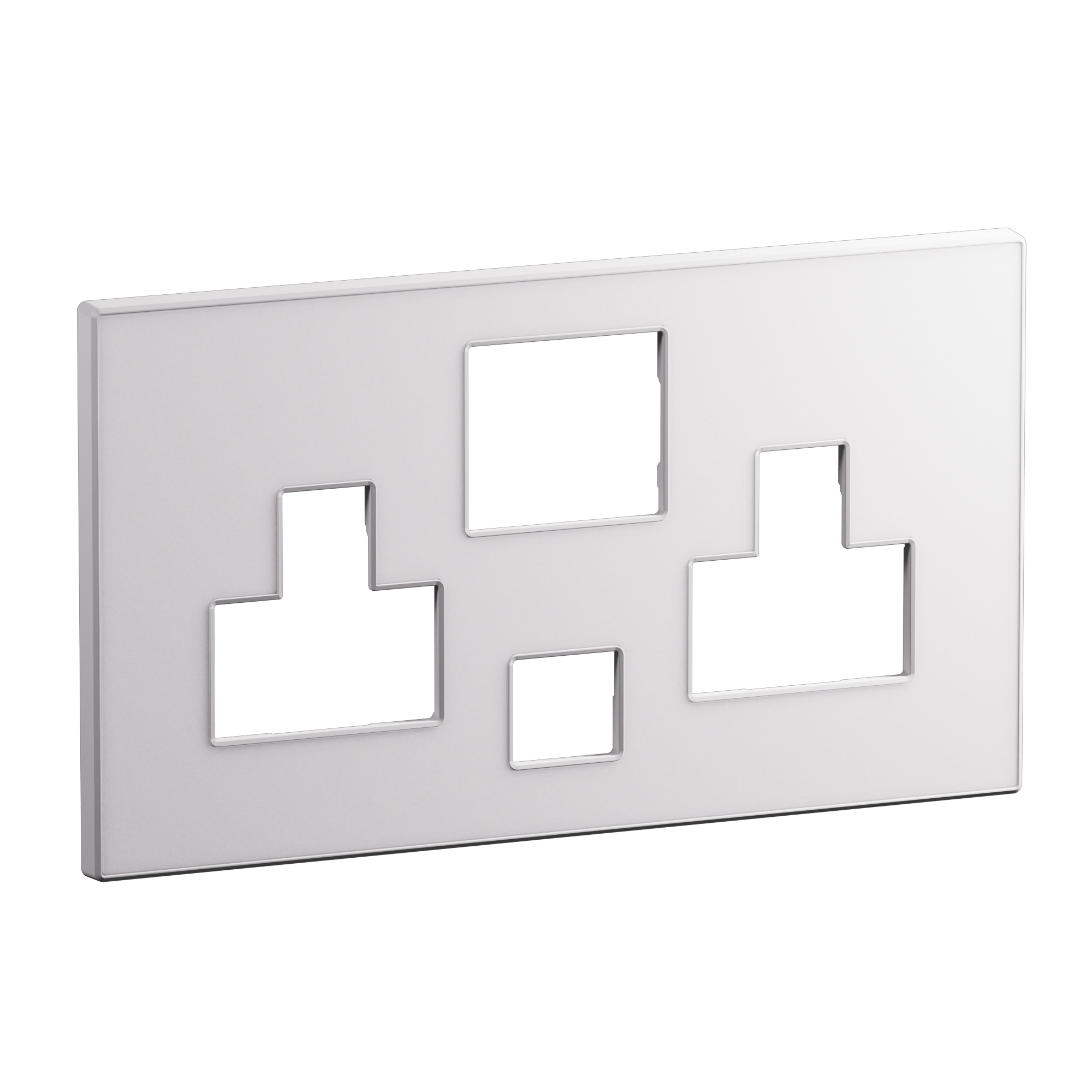

Arteor Advance - 2 gang multistandard plate for switched socket with USB 2 ports - Horizontal 2-gang cover frame - Matt thermoplastic

Arteor Advance Legrand

Arteor Advance - 2 gang multistandard plate for switched socket with USB 2 ports - Horizontal 2-gang cover frame - Matt thermoplastic

REF. AA1117FW EAN. 3414972722292
This 2 gang multistandard plate for switched socket with USB 2 ports in frosted white combines crystal polycarbonate construction with a slender monobloc design. Its velvet-touch finish and refined aesthetics provide a high-end, durable
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang multistandard plate for switched socket with USB 2 ports in frosted white combines crystal polycarbonate construction with a slender monobloc design. Its velvet-touch finish and refined aesthetics provide a high-end, durable

Product characteristics
  • Two-gang multistandard cover frame for switched socket with dual USB ports, optimized for horizontal flush-mounted installation
  • Frosted white matte lacquered finish providing subtle translucence and refined visual integration with Arteor Advance devices
  • Crystal polycarbonate thermoplastic plate offering high dimensional stability, halogen-free composition, and IK02 impact resistance
  • Slender monobloc design with snap-on fastening for precise alignment, reduced wall projection, and clean architectural aesthetics
  • 157x90x8mm low-profile plate, recommended for indoor use within -5° C to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and white translucence
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
