Arteor Advance - 2 gang multistandard plate for switched socket with 2-port USB - 2-gang horizontal cover frame - Thermoplastic

Arteor Advance Legrand

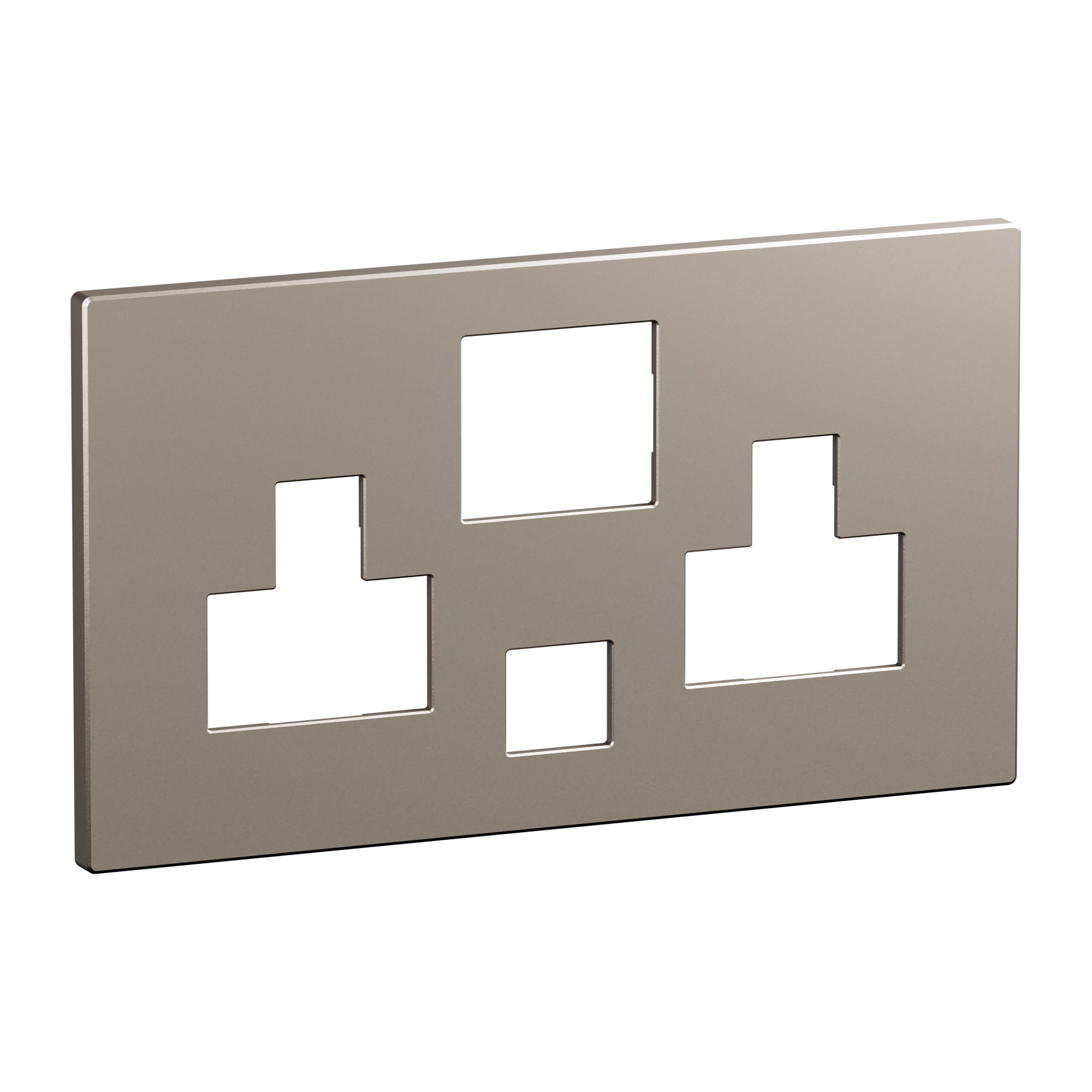

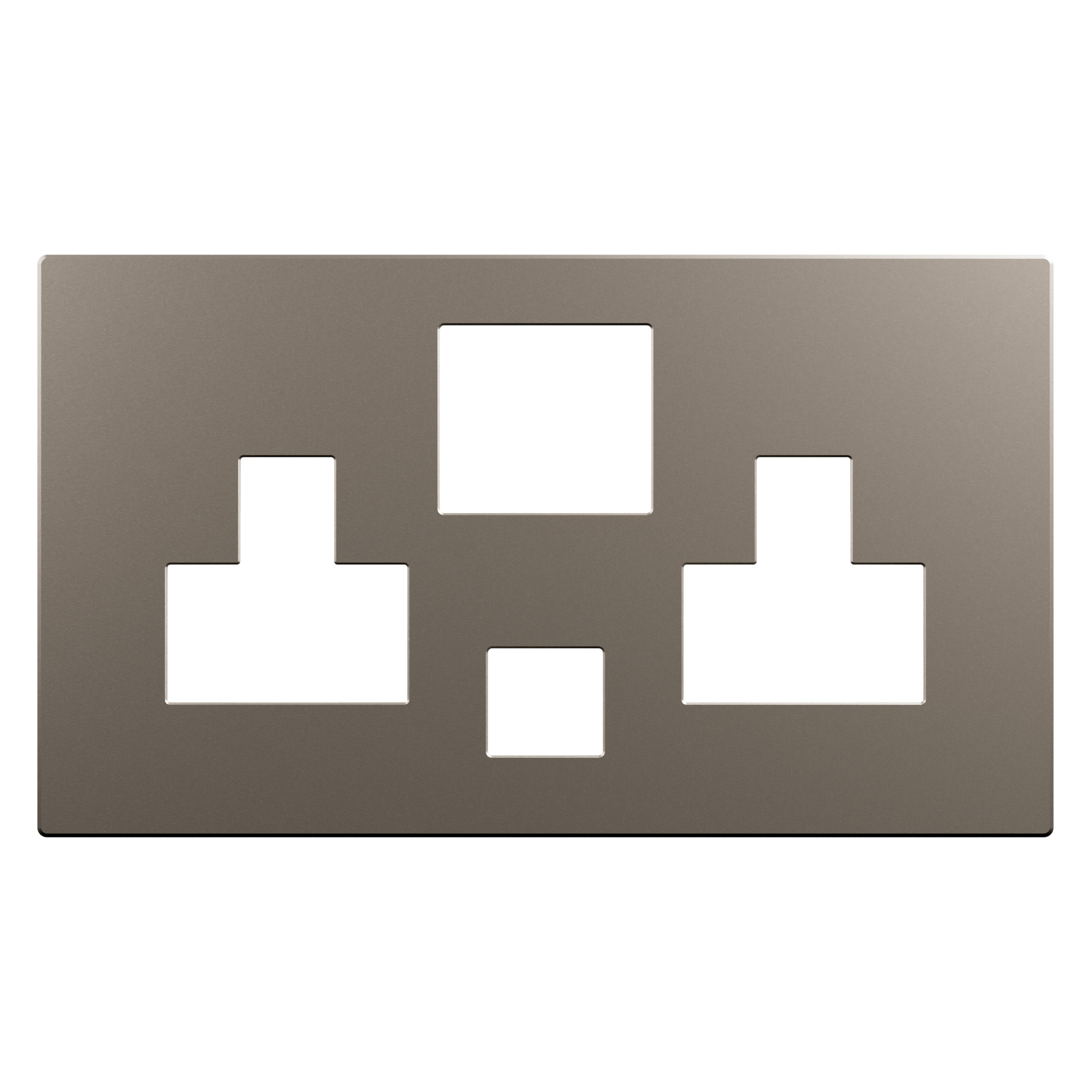

Arteor Advance - 2 gang multistandard plate for switched socket with 2-port USB - 2-gang horizontal cover frame - Thermoplastic

REF. AA1117CH EAN. 3414973055023
The 2 gang multistandard plate for switched socket with USB 2 ports champagne delivers dual-outlet plus USB capability in a minimalist, slender monobloc design.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2 gang multistandard plate for switched socket with USB 2 ports champagne delivers dual-outlet plus USB capability in a minimalist, slender monobloc design.

Product characteristics
  • Two-gang multistandard cover frame for switched socket with integrated dual USB ports, horizontal 2-unit/4 modules configuration
  • Champagne warm gray matt lacquered finish with ivory hues for a premium, minimalist aesthetic in the Arteor Advance range
  • Plate made of halogen-free thermoplastic polycarbonate for enhanced mechanical robustness and safety
  • Slender monobloc design with snap-on fastening for precise flush-mounted installation and clean wall integration
  • Impact resistance IK02, dimensions 157x8mm (W x D), operating temperature range -5° C to 35° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
