Arteor Advance - 2 gang multistandard plate for switched socket with 2-port USB - 2-gang horizontal cover frame - Matt titanium

Arteor Advance Legrand

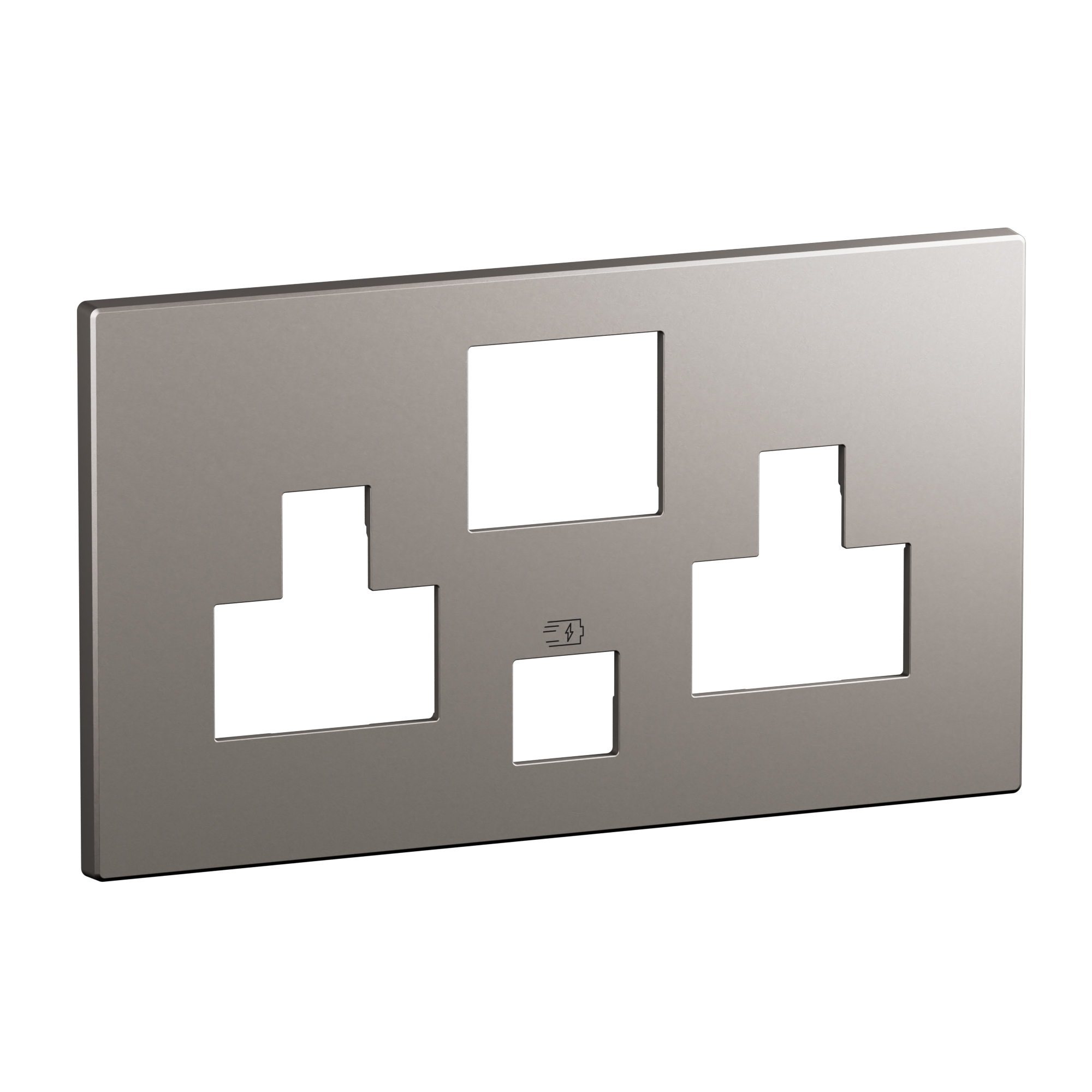

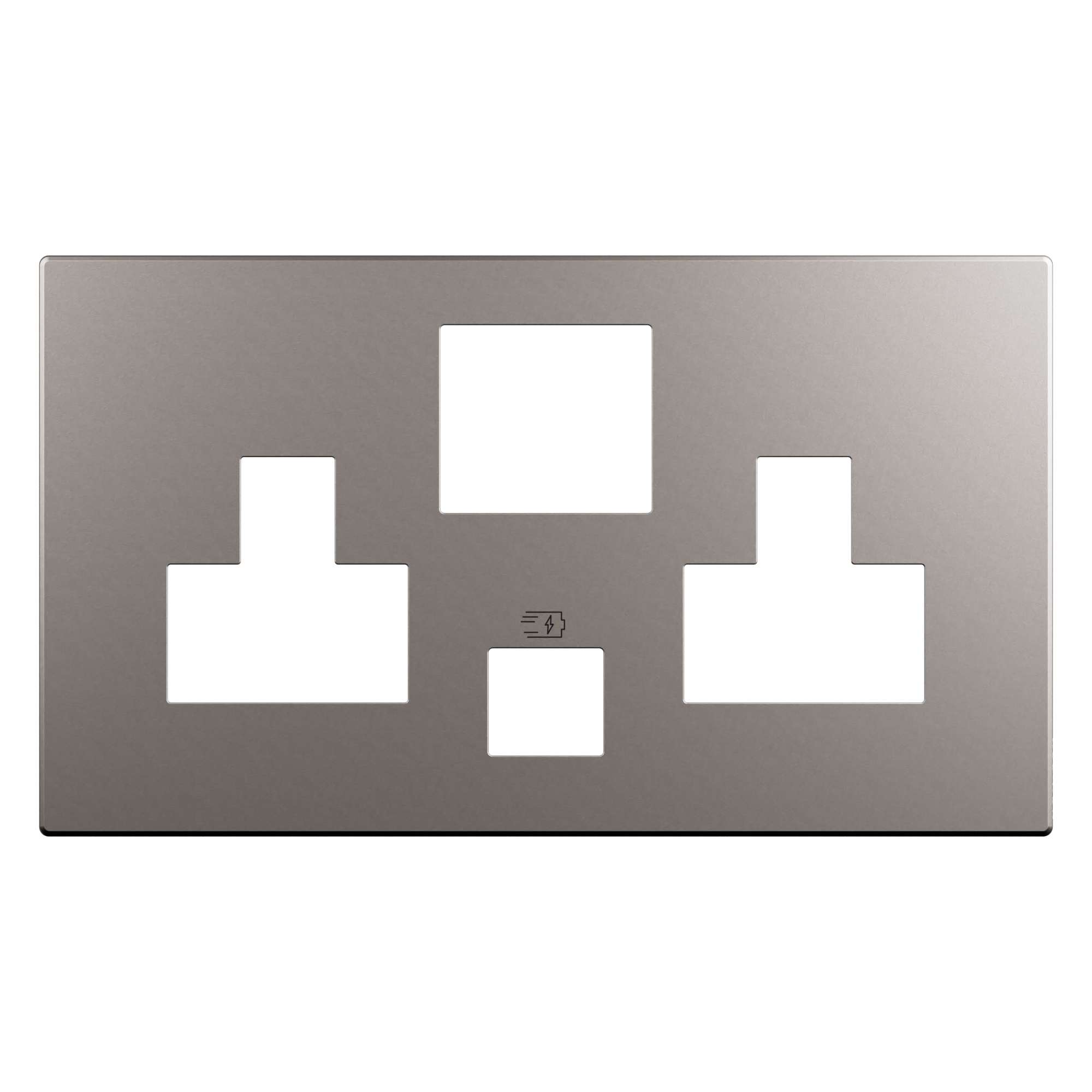

Arteor Advance - 2 gang multistandard plate for switched socket with 2-port USB - 2-gang horizontal cover frame - Matt titanium

REF. AA1117MT EAN. 3414972722353
The 2 gang multistandard plate for switched socket with USB 2 ports matt titanium delivers dual-outlet plus USB functionality in a minimalist monobloc design. Its matt titanium polycarbonate front offers a smooth, halogen-free finish.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2 gang multistandard plate for switched socket with USB 2 ports matt titanium delivers dual-outlet plus USB functionality in a minimalist monobloc design. Its matt titanium polycarbonate front offers a smooth, halogen-free finish.

Product characteristics
  • Two-gang multistandard cover plate for switched socket with dual USB ports, optimized for horizontal 2-unit configurations (4 modules) in the Arteor Advance range
  • Matt titanium finish providing a smooth, low-gloss aesthetic with minimalist design for contemporary electrical installations
  • Plate manufactured from thermoplastic polycarbonate, halogen free and IK02 impact rated for robust, safe residential and commercial use
  • Ultra-slim monobloc construction with snap-on fastening for precise flush-mounted installation and clean wall integration
  • Designed for indoor flush mounting, 157x90x8mm, operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Titanium with a smooth matte finish
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
