Arteor Advance - 2 gang British Standard plate for cooker unit - Solid aluminum matt lacquered metal - Flush-mounted horizontal 2-unit

Arteor Advance Legrand

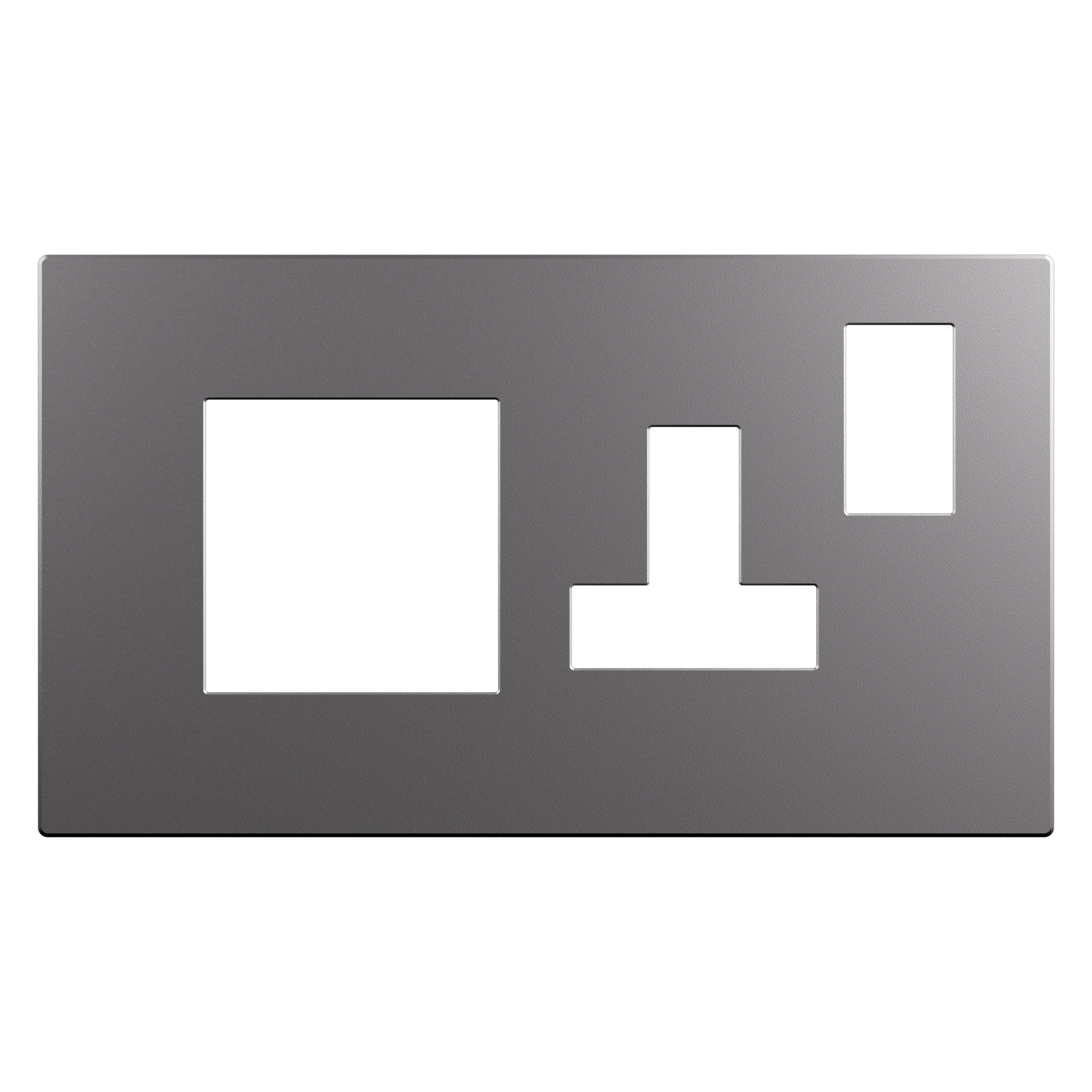

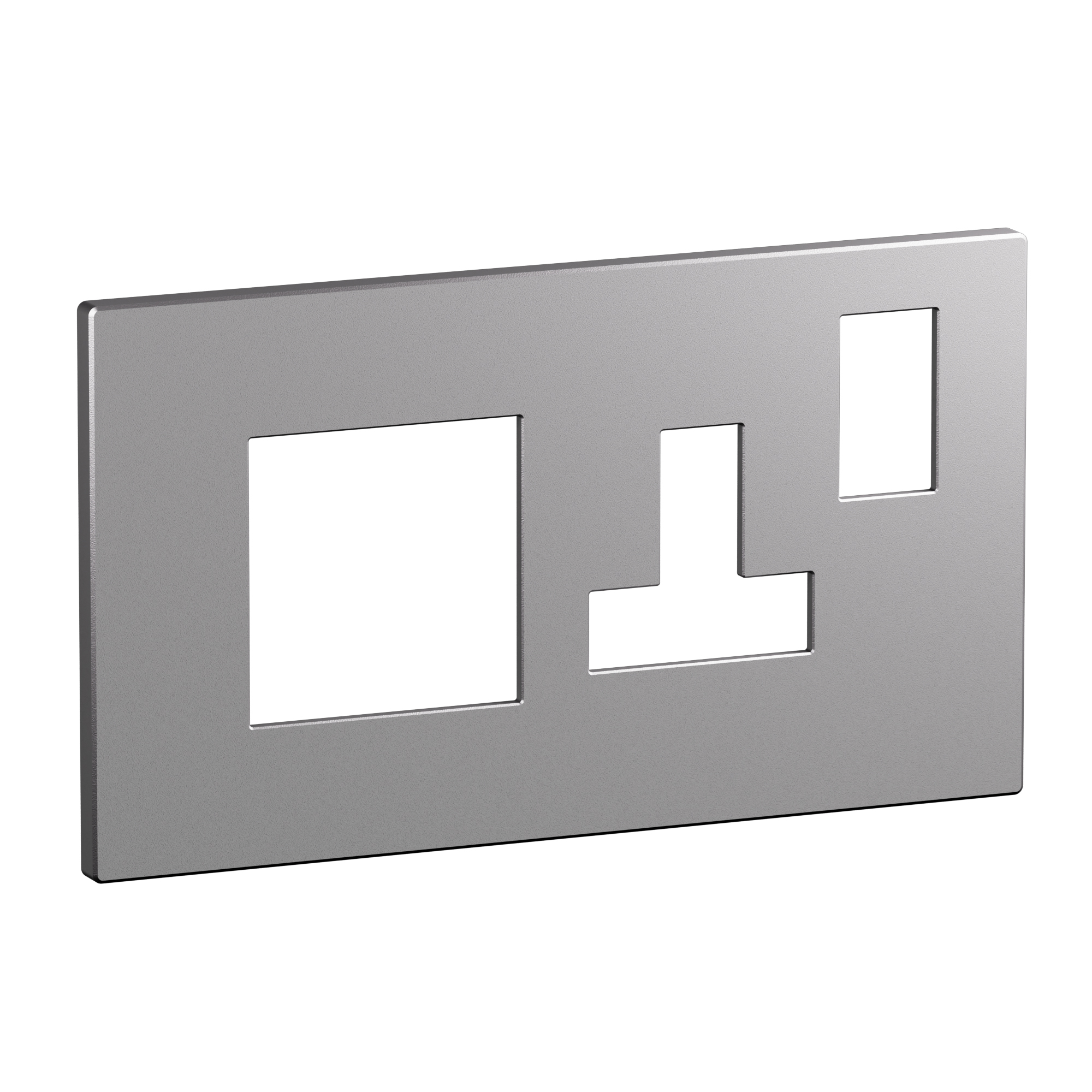

Arteor Advance - 2 gang British Standard plate for cooker unit - Solid aluminum matt lacquered metal - Flush-mounted horizontal 2-unit

REF. AC1109SA EAN. 3414972736176
This 2 gang British Standard plate for cooker unit in solid aluminum ensures robust, halogen-free, flush-mounted installation. Its matt lacquered finish and square design deliver refined aesthetics.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 gang British Standard plate for cooker unit in solid aluminum ensures robust, halogen-free, flush-mounted installation. Its matt lacquered finish and square design deliver refined aesthetics.

Product characteristics
  • Two-gang British Standard cover plate for cooker unit applications, providing a dedicated interface for domestic switching devices
  • Solid aluminum construction with lacquered, matt finish for enhanced mechanical robustness and muted reflection
  • Plates are made of real plain aluminum, halogen free and corrosion resistant for long-term reliability in residential installations
  • Square, horizontal 2 x 1 configuration (157x90x8mm) enabling modularity and flexibility in a compact footprint
  • Snap-on fastening without mounting grid, optimized for flush-mounted indoor use with integrated adjuster to ensure precise wall alignment
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
