Arteor Advance - 2 gang British Standard blanking plate matt black - Thermoplastic finish - Flush-mounted horizontal plate

Arteor Advance Legrand

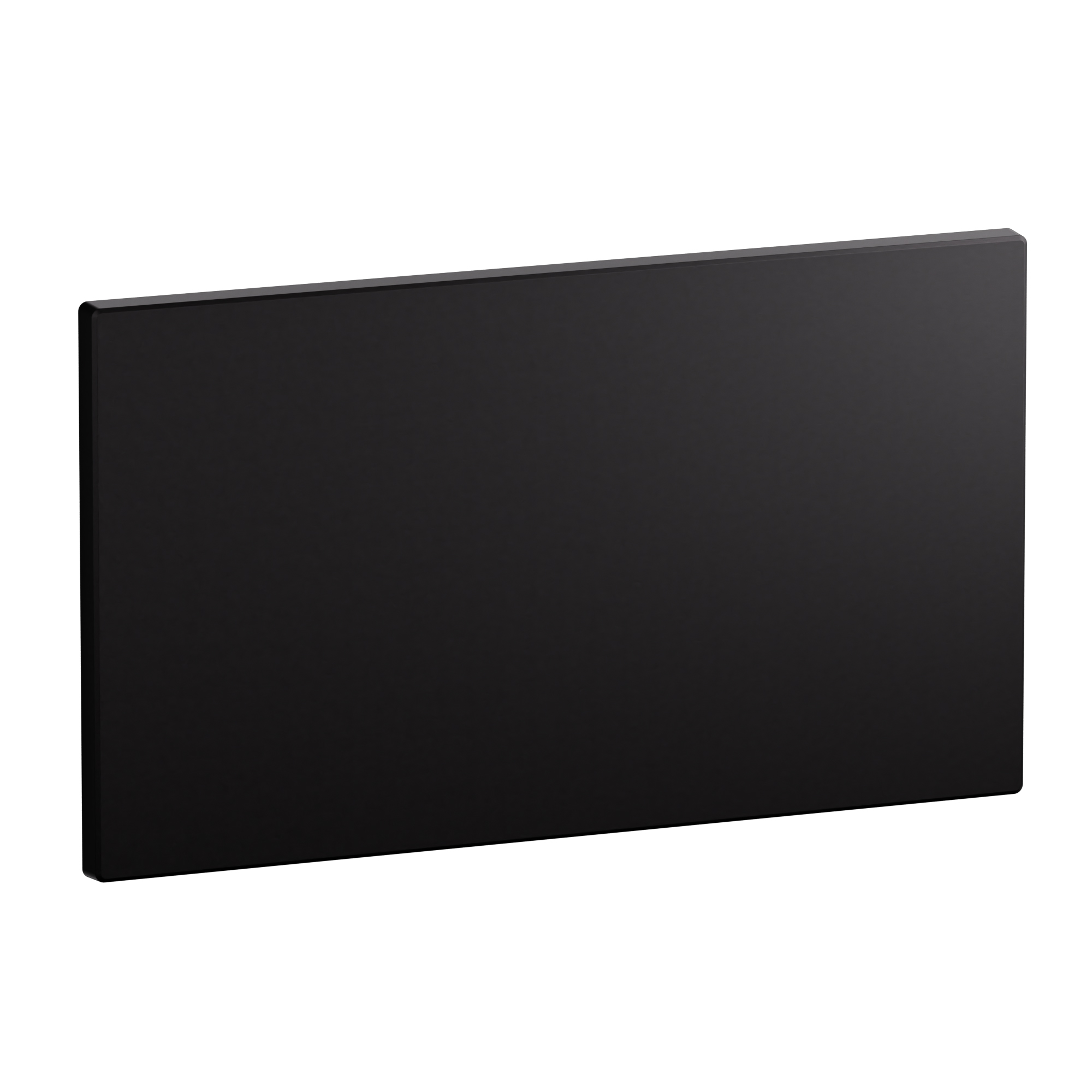

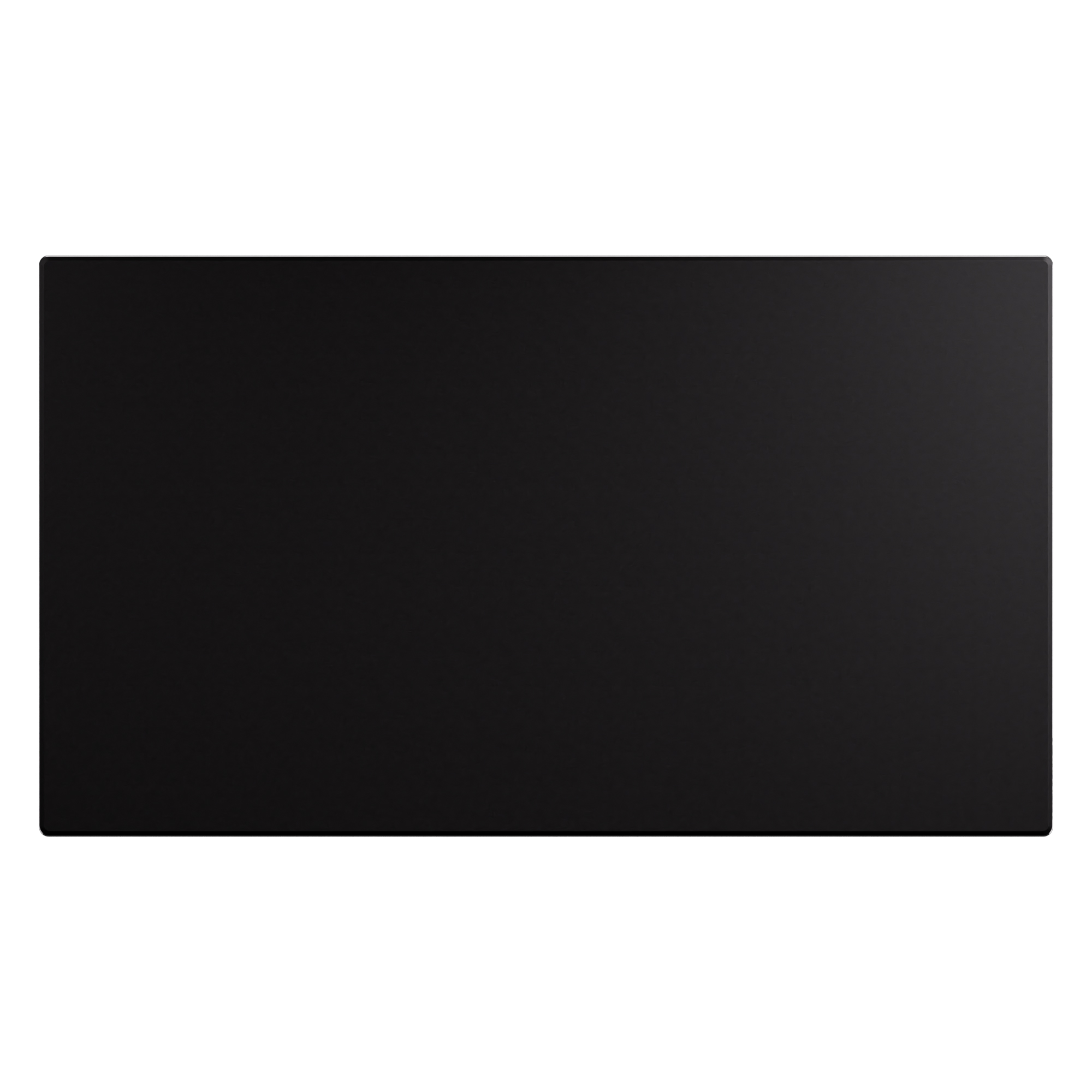

Arteor Advance - 2 gang British Standard blanking plate matt black - Thermoplastic finish - Flush-mounted horizontal plate

REF. AC1502MB EAN. 3414972739924
The 2 gang British Standard blanking plate matt black delivers deep black, smooth matt aesthetics with minimalist, square design. Its halogen-free thermoplastic construction, IK02 impact resistance, and snap fastening ensure robust flush
Download product sheet
Finition :
Number of units :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2 gang British Standard blanking plate matt black delivers deep black, smooth matt aesthetics with minimalist, square design. Its halogen-free thermoplastic construction, IK02 impact resistance, and snap fastening ensure robust flush

Product characteristics
  • Two-gang British Standard blanking plate providing coverage for two horizontal units (4 modules) in Arteor Advance installations
  • Deep matt black lacquered finish delivering a smooth, minimalist aesthetic suitable for contemporary interiors
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical robustness and safety
  • Square, flush-mounted cover frame (157x90x8mm) with snap-on fastening for precise, compact wall integration
  • Designed for indoor use with operating temperature from -5 to 35° C and IK02 impact resistance for reliable service in residential and commercial environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 0
Number of modules vertical (module system) 0
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04610EN-00.pdf pdf (0.49 Mo)
