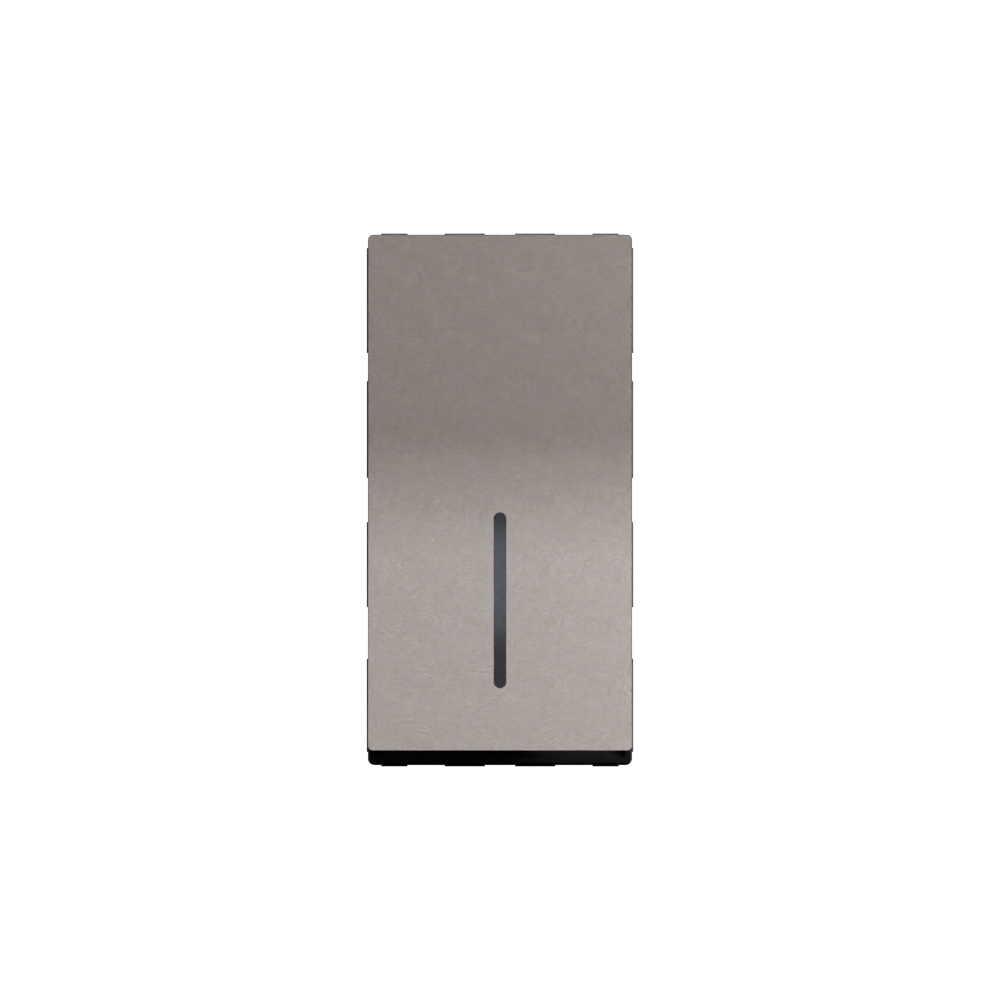

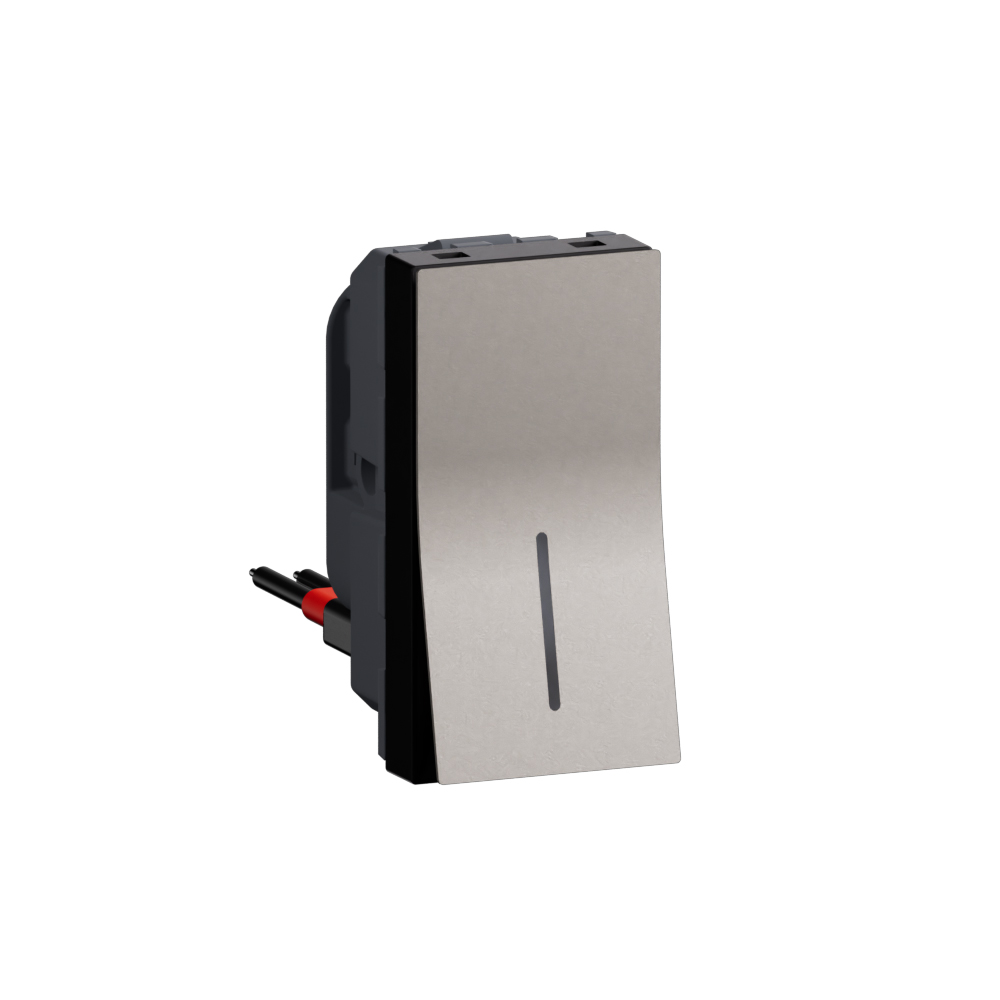

Arteor Advance - 1M scenario push 230V and 12V with 12V indicator - Grms compatible - Matt Titanium finish

Arteor Advance Legrand

Arteor Advance - 1M scenario push 230V and 12V with 12V indicator - Grms compatible - Matt Titanium finish

REF. AC23110MT EAN. 3414972750219
Offers a gentle touch for effortless light control with smooth, quiet operation. This 1-module electromechanical push button handles 230V and 12V and automatically returns to its original state. Matt titanium finish and screw terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 1-module electromechanical push button handles 230V and 12V and automatically returns to its original state. Matt titanium finish and screw terminals.

Product characteristics
  • One-module electromechanical scenario push button for 230V and 12V DC circuits, with 1 NO contact and screw terminals for flexible or rigid cables 0.75mm² to 1.5mm².
  • Matt titanium thermoplastic front with lacquered surface finish, providing a robust, low-glare aesthetic aligned with Arteor Advance modular devices.
  • Single push button with snap-in mounting that automatically returns to its original position, ensuring reliable momentary control and long mechanical endurance.
  • Compatible with grms for centralized scenario control, enabling advanced customization of room functions according to client preferences.
  • Compact 1M modular device (22.5x45x38mm, IP20) for indoor use, with 12V indicator or locator LED option and operating temperature range from -5° C to 35° C.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Titanium with a smooth matte finish
  • The square format enables modularity for lighting control

Technical characteristics

Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of rockers 1
Number of modules (module system) 1
Nominal voltage 12 V
With lighting Yes
With light source Yes
With complemantary luminous signal Yes
Mounting method Module frame
Colour Titanium
