Arteor Advance - 1G plate for British Standard 5A and 13A switched socket outlet - Solid aluminium matt lacquered plate

Arteor Advance Legrand

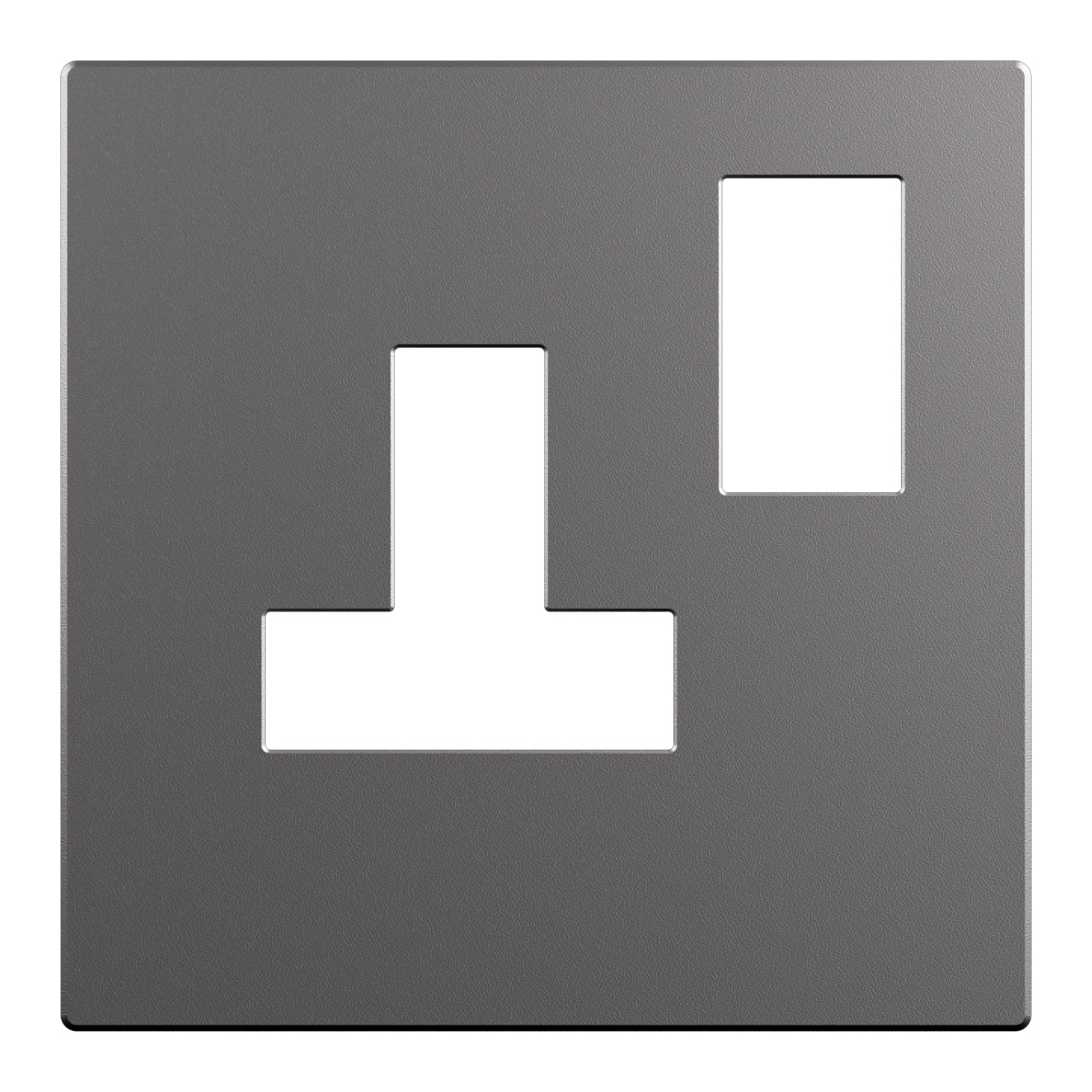

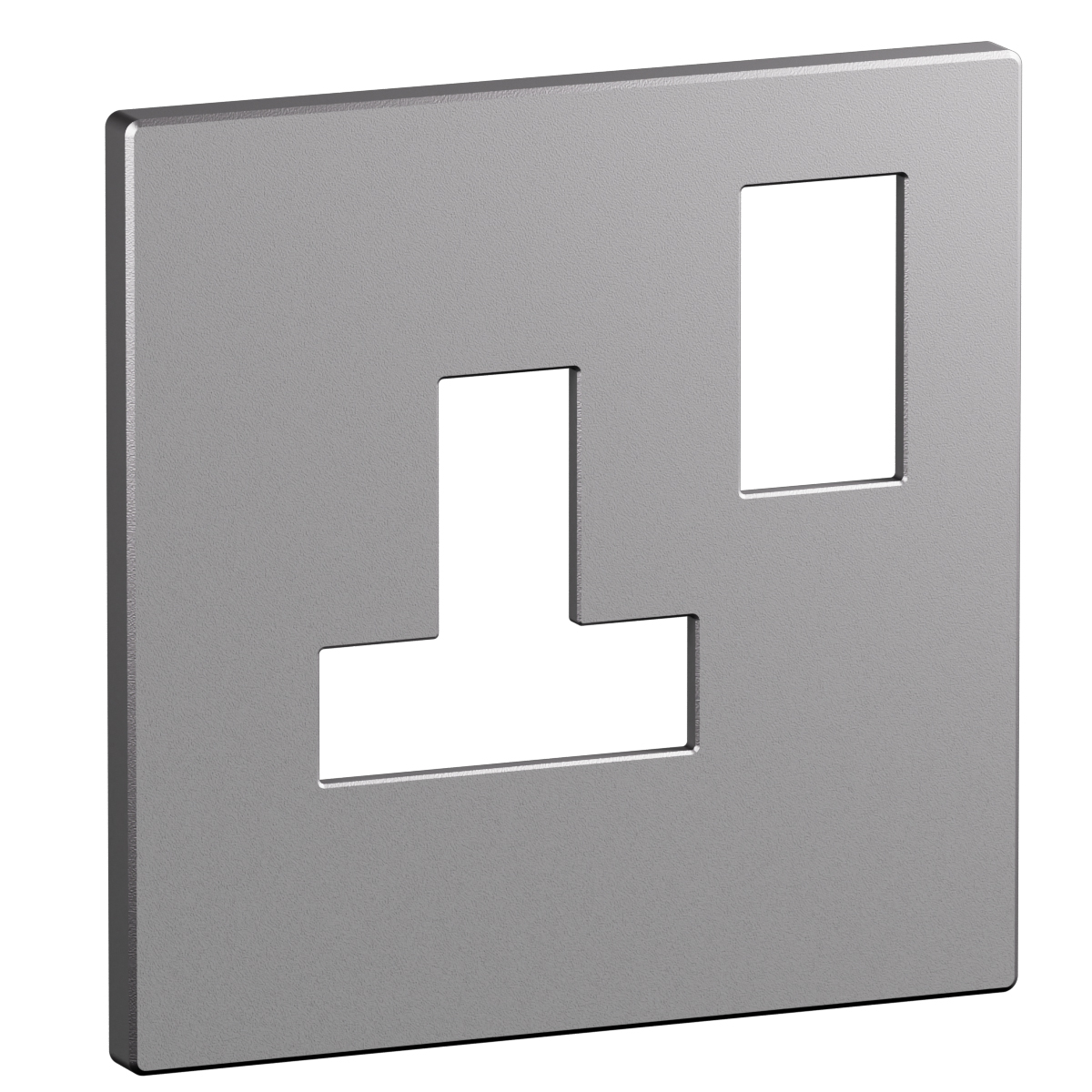

Arteor Advance - 1G plate for British Standard 5A and 13A switched socket outlet - Solid aluminium matt lacquered plate

REF. AA1100SA EAN. 3414972719810
This 1-gang solid aluminum plate for British Standard 5A and 13A switched socket outlets offers robust metal construction and halogen-free safety. Its lacquered matt finish and slender monobloc design ensure refined aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-gang solid aluminum plate for British Standard 5A and 13A switched socket outlets offers robust metal construction and halogen-free safety. Its lacquered matt finish and slender monobloc design ensure refined aesthetics.

Product characteristics
  • Eight modules cover frame architecture optimizes device layout within a 1-gang British Standard 5A / 13A switched socket outlet plate.
  • Solid aluminum construction with lacquered, matt surface provides high mechanical robustness and a cool metallic touch for demanding residential and commercial applications.
  • Front plates are made of real plain aluminum, halogen free and non-transparent, ensuring material authenticity and consistent aluminum color appearance.
  • Slender monobloc design with 90x90x8mm flush-mounted profile delivers a refined, low-projection aesthetic compatible with Arteor Advance installations.
  • Snap-on fastening without mounting grid enables quick horizontal installation within -5 to 35° C operating temperature range for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Aluminum with muted reflection and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
