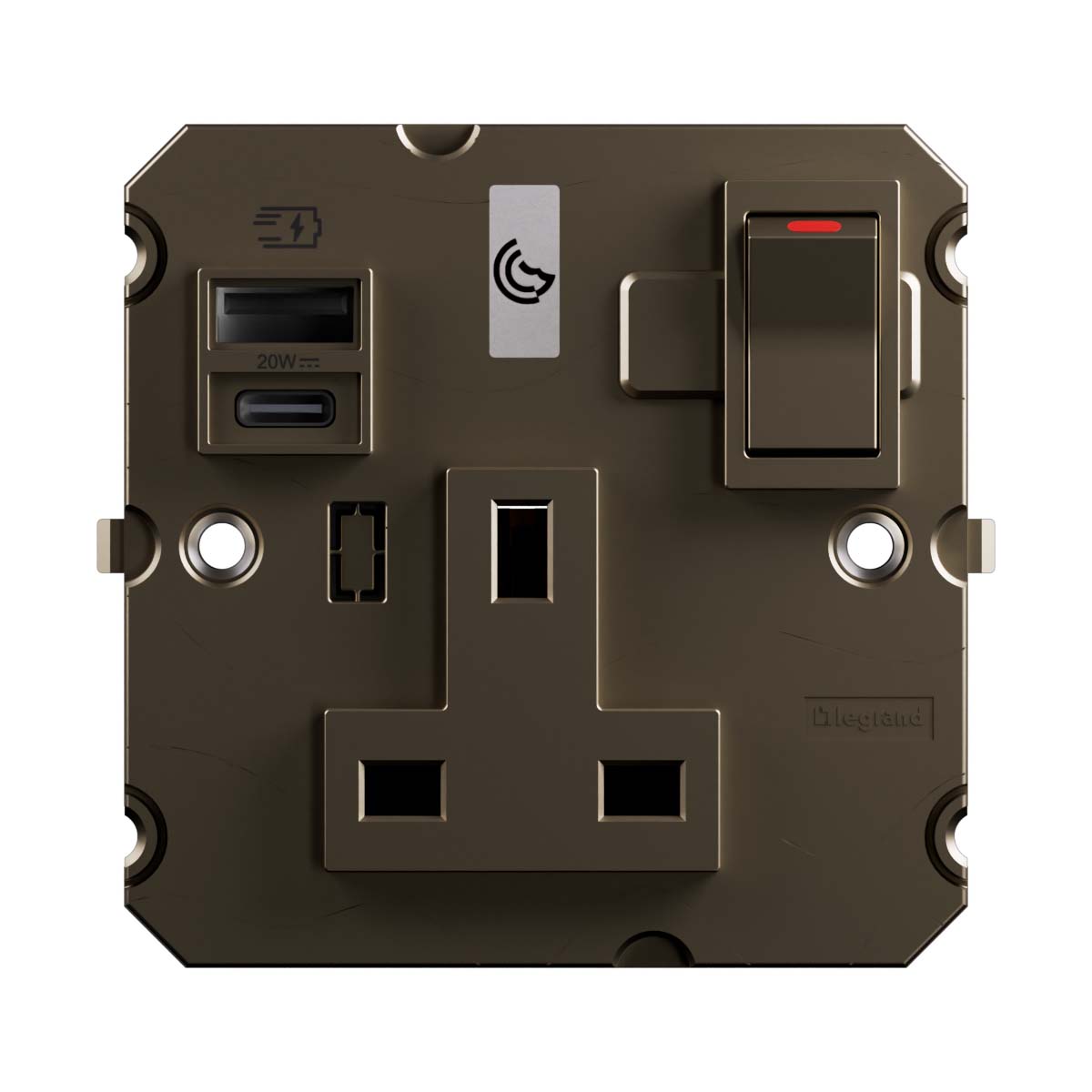

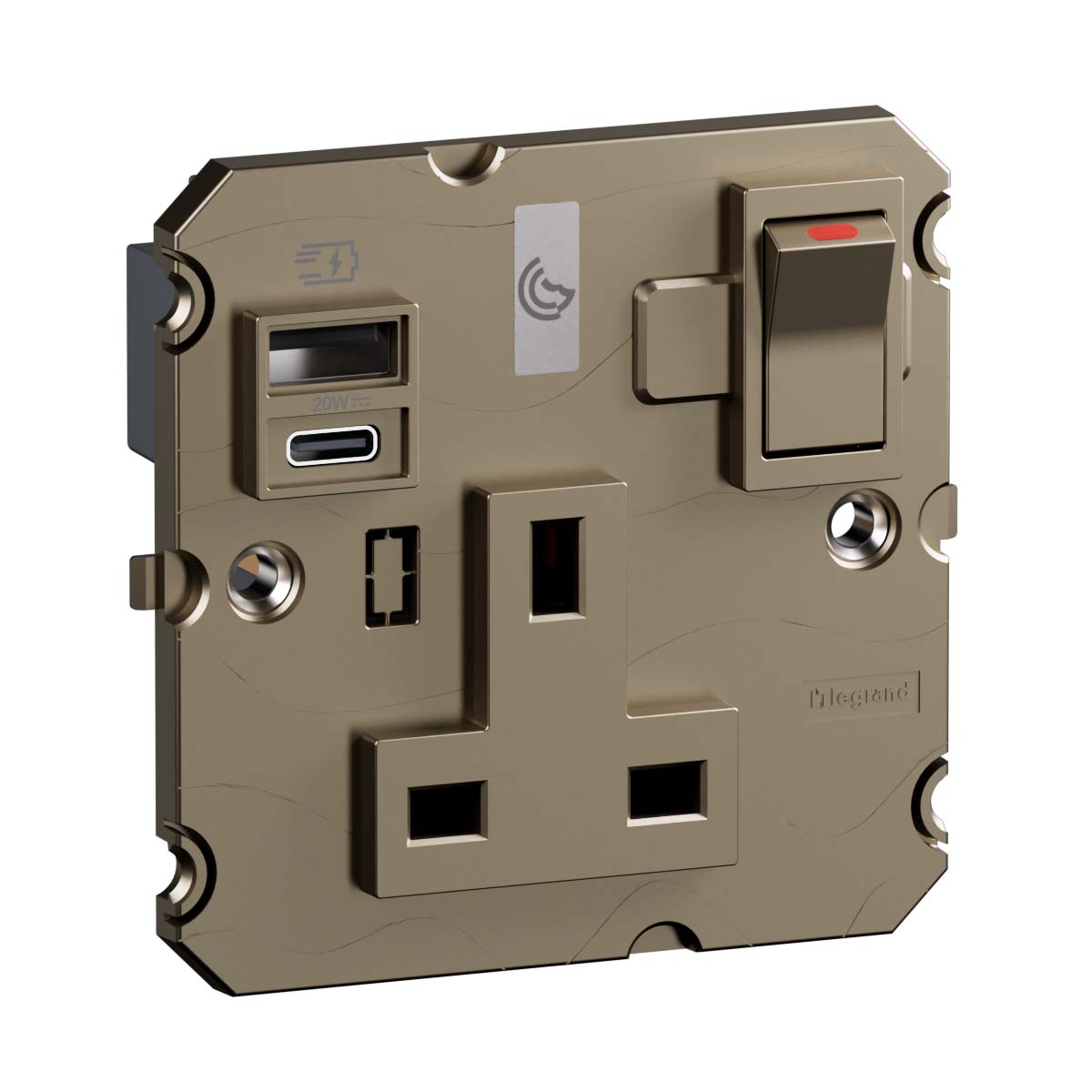

Name: Arteor Advance - 1G BS13A switched socket 2 USB A+C 20W dark bronze - 13A one gang outlet - 20W USB fast charging
SKU: AA3328DB

Description

Combines the convenience of a 1 gang 13A switched socket with dual USB A+C 20W power delivery for fast charging. Dark bronze, matt lacquered finish enhances aesthetics while safety shutters and fault current protection improve safety.

Product characteristics

One-gang 13A British Standard switched socket with integrated 20W USB A and USB C power delivery for combined mains and fast device charging
Dark bronze matt lacquered finish aligned with Arteor Advance aesthetics for a premium, coordinated installation
Integrated 20W USB power delivery (max. 3A) via 1x USB-A and 1x USB-C port for high-speed charging of compatible devices
Clearly marked screw terminals with 1to6mm² capacity for fast, error-free wiring and secure connection of flexible or rigid cables
Flush-mounted thermoplastic socket outlet, 250V AC/DC, IP20, IK04, with safety shutters, fault current protection, miniature fuse, and compliance with UK Building Regulations Part M for safe indoor use

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

All-in-one convenience for powering and charging devices.
Deep bronze finish evoking classic aesthetic
Compact design integrating fast charging USB ports

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	No
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	2
Number of active contacts (square)	0
Mounting direction	Horizontal and vertical
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	1
Number of empty module positions	1
Max. current rating of USB power supply	3 A
Number of socket outlets	1
Socket outlets phase-separated	No
Number of socket outlets switchable	1
Connection type	Screwed terminal
Label space/information surface	Yes
Colour	Bronze
Transparent	No
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	Yes
With miniature fuse	Yes
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No

With on/off switch	Yes
Colour of switch operator	Bronze
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	83.5 mm
Device height	78.5 mm
Device depth	37.7 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
Compliant with UK Building Regulations Part M	Yes
Built-in depth	26.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC/DC
Power Delivery	Yes
USB Output Power	20 W
Terminal marking indication	Yes
Terminals capacity (Min-Max)	1-6 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-6 mm²
Connected object	No
With voice command	No
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	No

Arteor Advance - 1G BS13A switched socket 2 USB A+C 20W dark bronze - 13A one gang outlet - 20W USB fast charging
