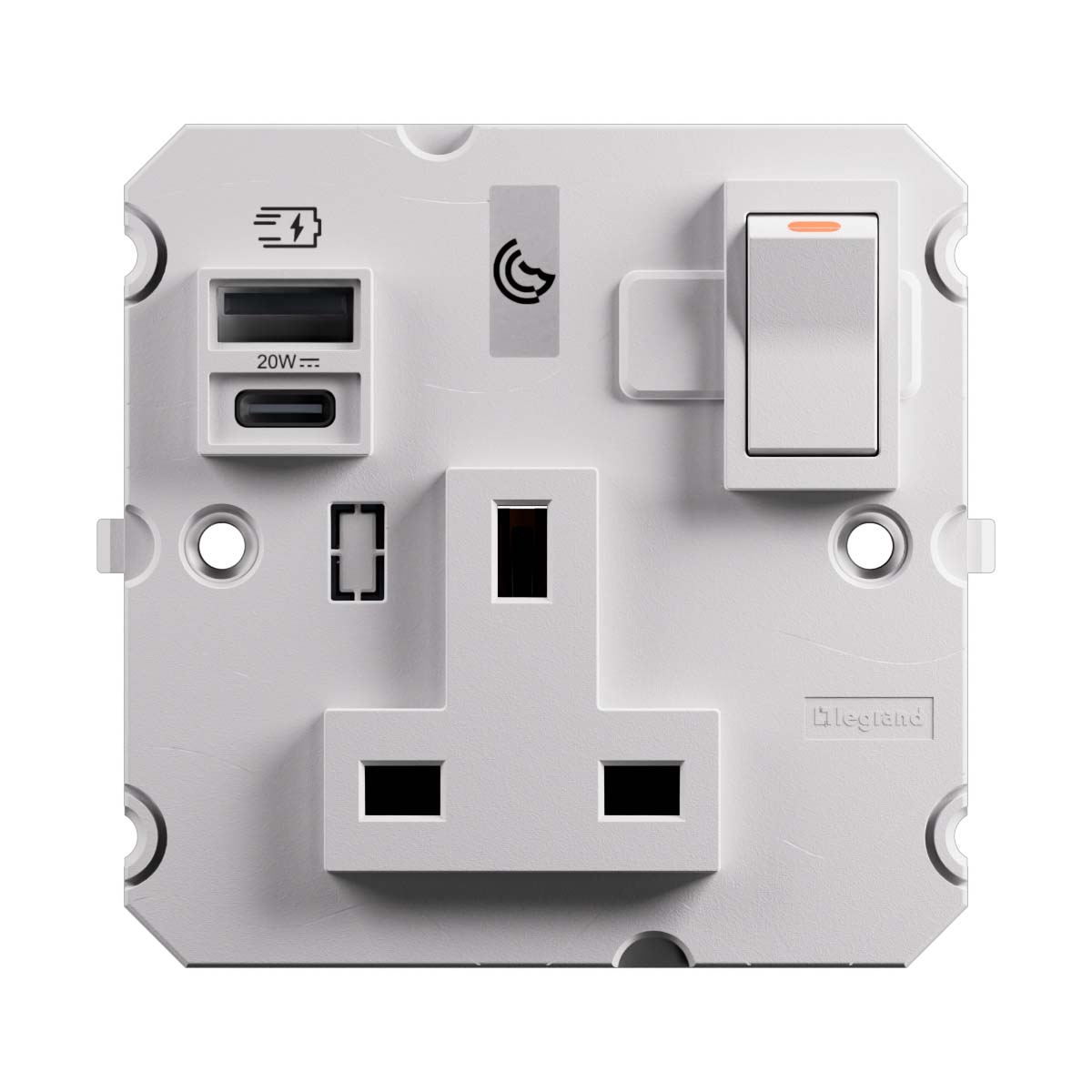

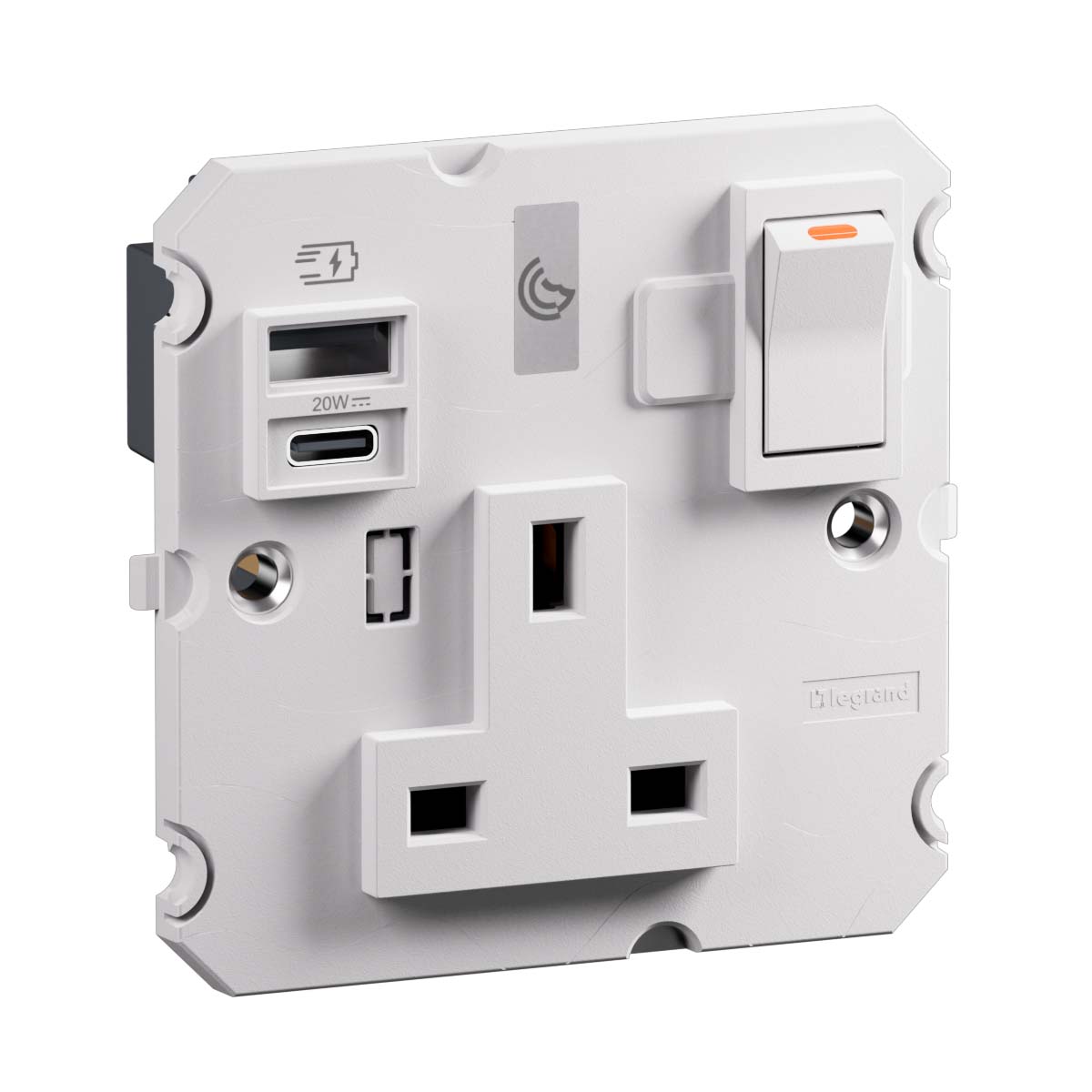

Name: Arteor Advance - 1G BS13A single pole switched socket USB A+C 20W matt white - Integrated USB-A and USB-C 3A charging
SKU: AA3328MW

Description

Combines a 1G 13A switched socket with integrated 20W USB A+C power delivery for fast charging. Matt white thermoplastic finish offers a compact, flush-mounted design. Safety shutters ensure protection.

Product characteristics

One-gang 13A 250V AC British Standard single pole switched socket with integrated USB-A and USB-C charging, total 20W output
Matt white thermoplastic front plate (similar to RAL 9003) with smooth, non-reflective finish for a discreet architectural appearance
Integrated USB power delivery up to 20W (max 3A) for fast charging of compatible devices without external adapters
Clearly marked screwed terminals with terminal marking indication and 1mm² to 6mm² flexible or rigid cable capacity for fast, error-free wiring
Flush-mounted IP20 socket outlet with fault current protection, miniature fuse, and safety shutters, suitable for indoor residential and commercial installations

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

All-in-one convenience for powering and charging devices.
Powdery white with a smooth matte aspect
Compact design efficiently integrating USB ports

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	No
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	2
Number of active contacts (square)	0
Mounting direction	Horizontal and vertical
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	1
Number of empty module positions	1
Max. current rating of USB power supply	3 A
Number of socket outlets	1
Socket outlets phase-separated	No
Number of socket outlets switchable	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	Yes
Colour	White
RAL-number (similar)	9003
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	Yes
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	Yes
With miniature fuse	Yes
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt

Antimicrobial treatment	No
With loop through function	No
With on/off switch	Yes
Colour of switch operator	White
Rotated central insert	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	83.5 mm
Device height	78.5 mm
Device depth	37.7 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Compliant with UK Building Regulations Part M	No
Built-in depth	26.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	20 W
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-6 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-6 mm²
Cable support	Not applicable
Connected object	No
With voice command	No
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	No
