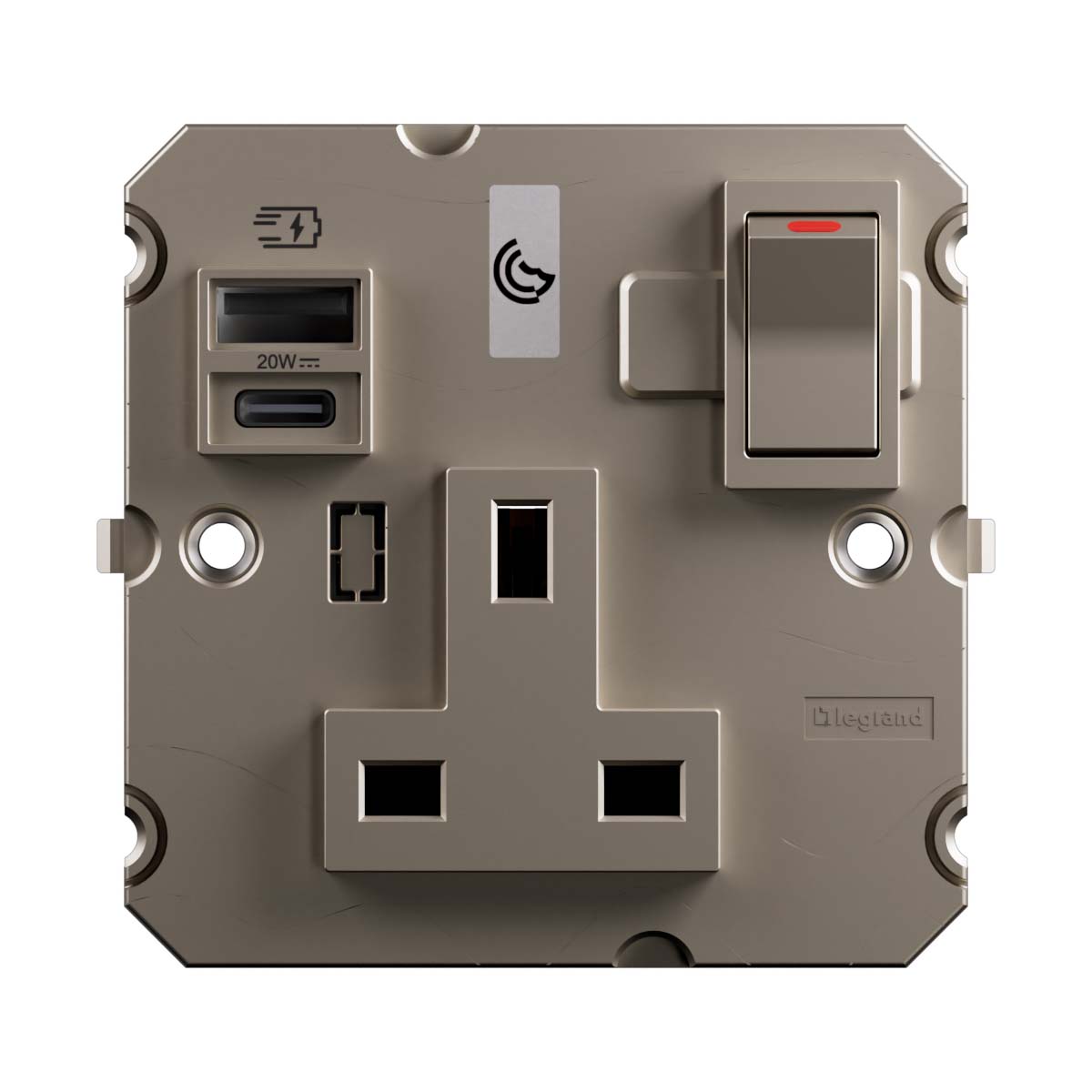

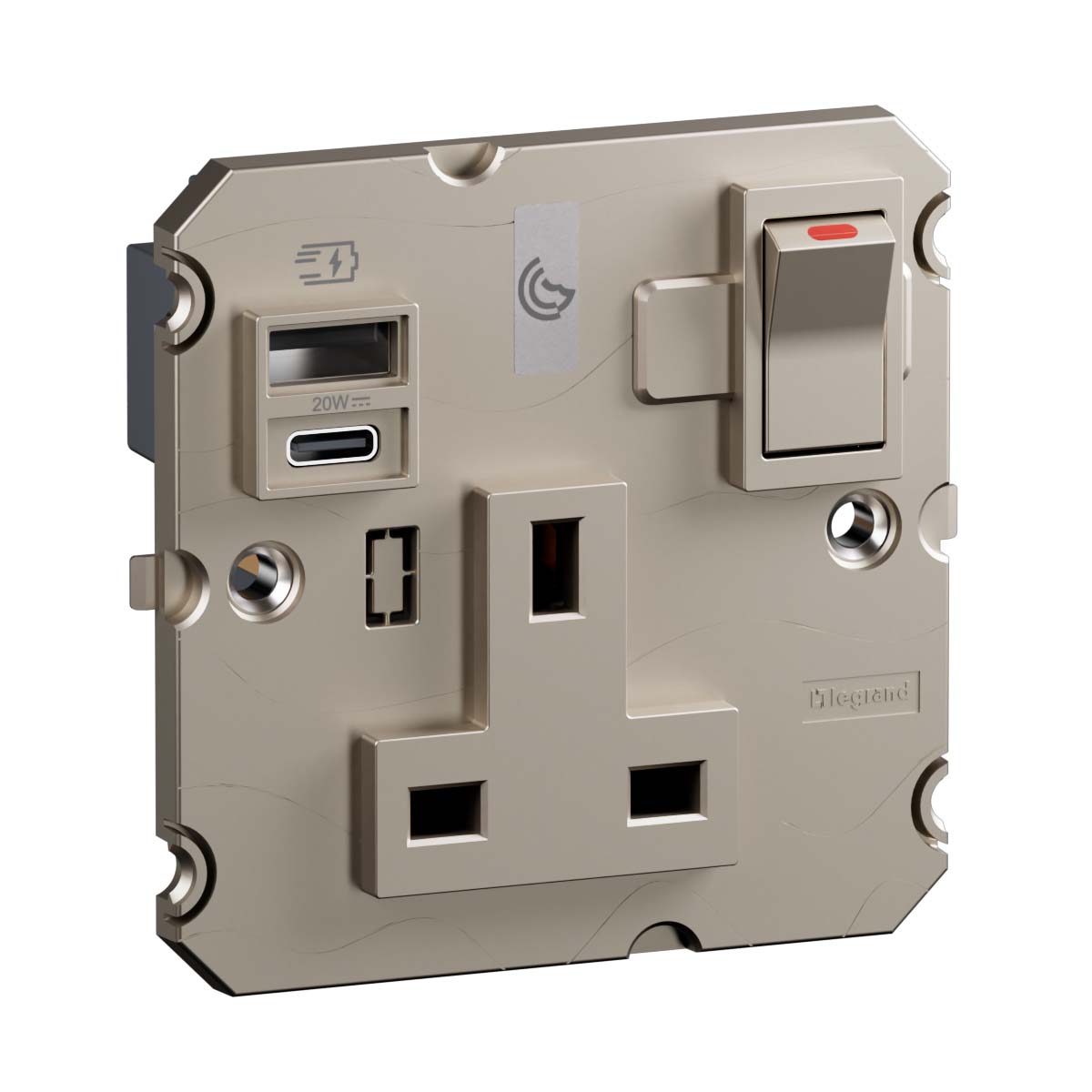

Name: Arteor Advance - 1G BS13A double pole switched socket with power delivery and 2 USB A+C 20W Champagne - 13A socket
SKU: AA3330CH

Description

Combines a power outlet with USB-A and USB-C ports for easy charging, delivering 20W power delivery. The 13A double pole switched socket with safety shutters and fault current protection enhances safety. Marked terminals simplify

Product characteristics

One-gang 13A British Standard double pole switched socket with integrated USB-A and USB-C 20W power delivery
Champagne gold matt lacquered finish coordinates with Arteor Advance aesthetic for premium interior applications
20W USB power delivery (1x USB-A, 1x USB-C, max 3A) for fast, efficient charging of compatible devices
Clearly marked screwed terminals with terminal marking indication and 1mm² to 6mm² capacity for fast, error-free wiring
Flush-mounted IP20 socket outlet with safety shutters, fault current protection, miniature fuse, and compliance with UK Building Regulations Part M

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

All-in-one convenience for powering and charging devices.
Warm gray finish infused with ivory hues highlights silky elegance
Compact design integrating USB ports efficiently

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	Yes
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	2
Number of active contacts (square)	0
Mounting direction	Horizontal and vertical
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	1
Number of empty module positions	1
Max. current rating of USB power supply	3 A
Number of socket outlets	1
Socket outlets phase-separated	No
Number of socket outlets switchable	1
Connection type	Screwed terminal
Label space/information surface	Yes
Colour	Gold
Transparent	No
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	Yes
With miniature fuse	Yes
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No

With on/off switch	Yes
Colour of switch operator	Gold
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	83.5 mm
Device height	78.5 mm
Device depth	37.7 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
Compliant with UK Building Regulations Part M	Yes
Built-in depth	26.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC/DC
Power Delivery	Yes
USB Output Power	20 W
Terminal marking indication	Yes
Terminals capacity (Min-Max)	1-6 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-6 mm²
Connected object	No
With voice command	No
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	No

Arteor Advance - 1G BS13A double pole switched socket with power delivery and 2 USB A+C 20W Champagne - 13A socket
