Arteor Advance - 1G BS multistandard plate 13A switched socket with 2 USB ports - Solid dark bronze matt metal - Flush-mounted

Arteor Advance Legrand

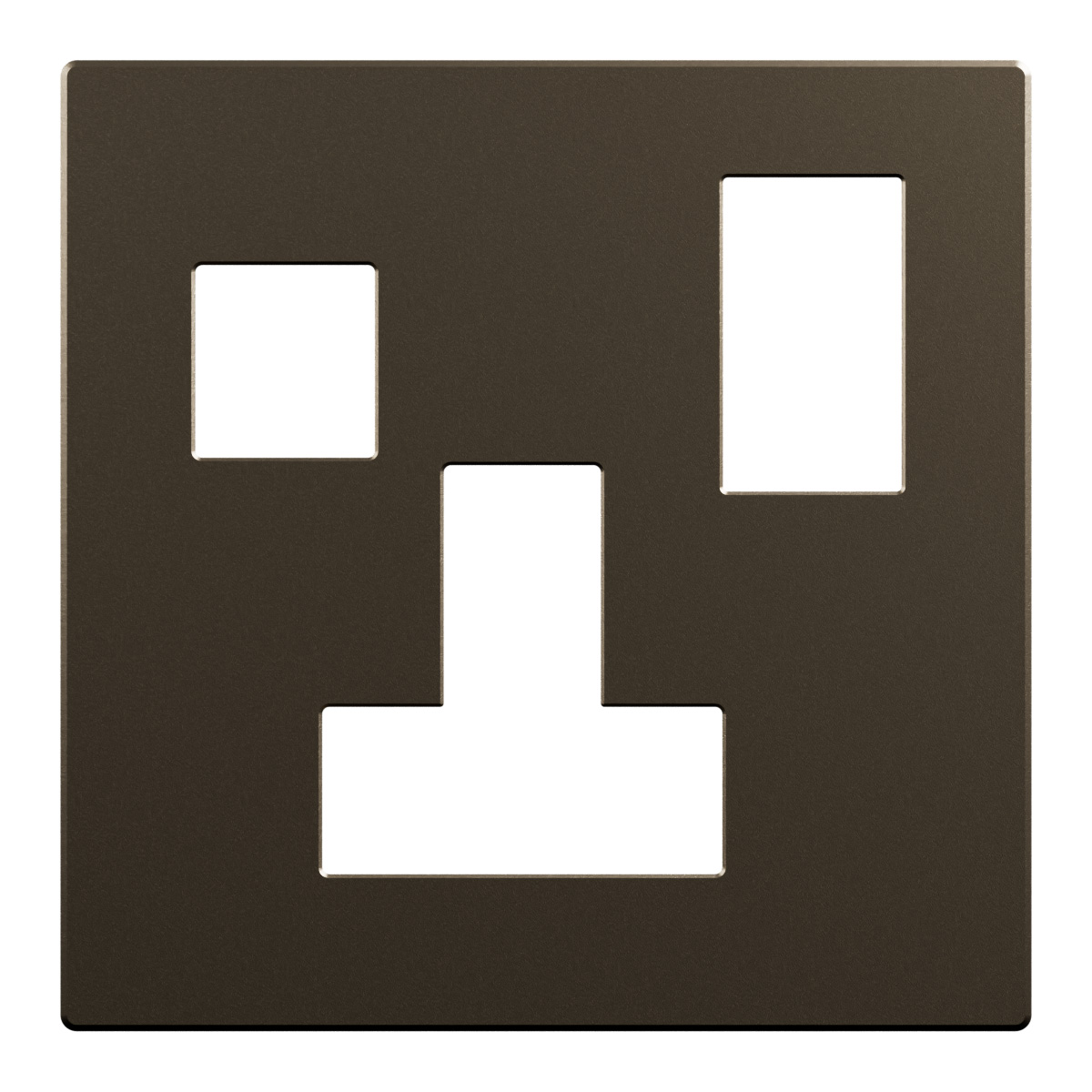

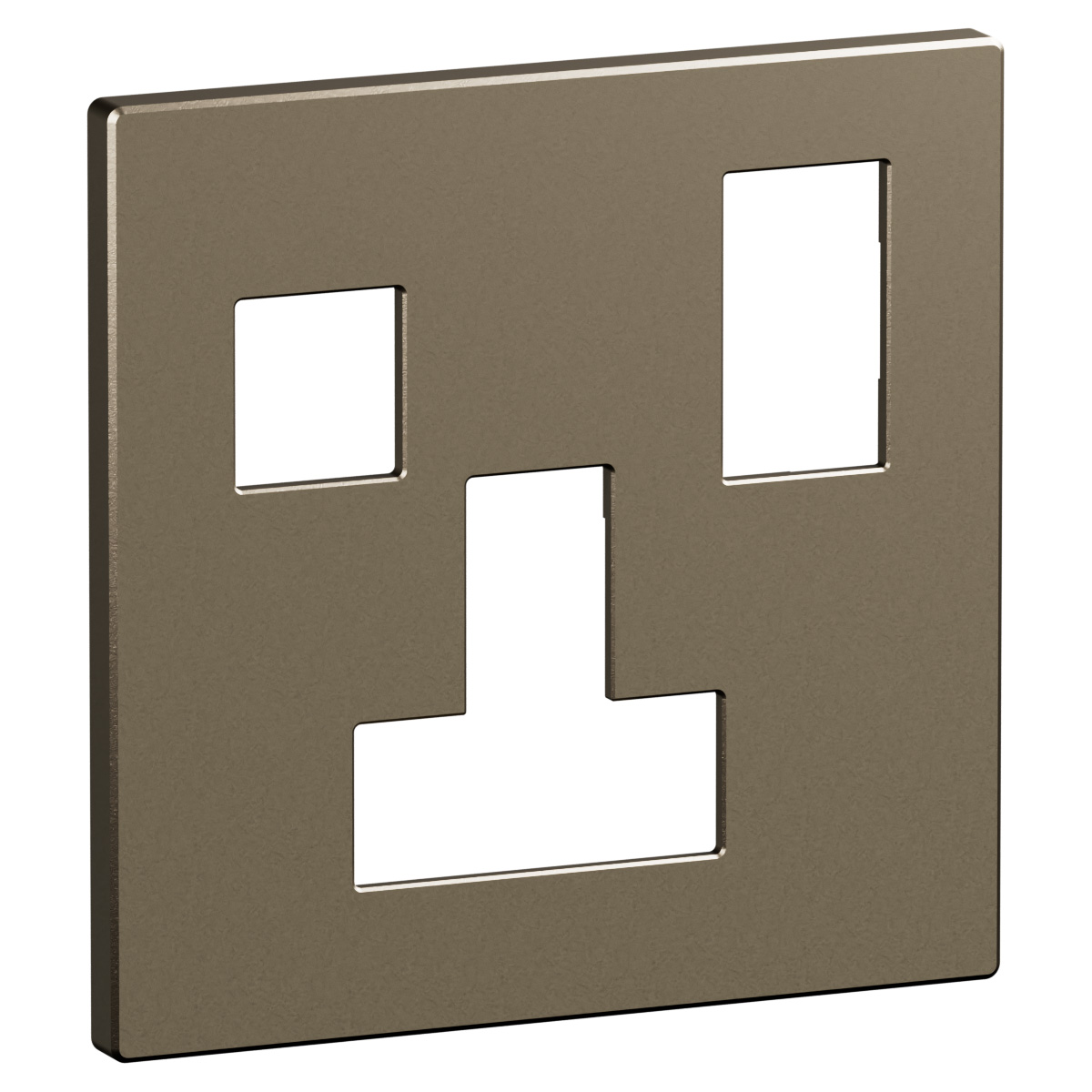

Arteor Advance - 1G BS multistandard plate 13A switched socket with 2 USB ports - Solid dark bronze matt metal - Flush-mounted

REF. AA1113SZ EAN. 3414972974813
The Arteor Advance 1G BS multistandard plate combines a 13A switched socket with 2 USB ports in a solid dark bronze finish. Its minimalist monobloc design and lacquered matt metal surface deliver a premium deep bronze aesthetic.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The Arteor Advance 1G BS multistandard plate combines a 13A switched socket with 2 USB ports in a solid dark bronze finish. Its minimalist monobloc design and lacquered matt metal surface deliver a premium deep bronze aesthetic.

Product characteristics
  • One-gang British Standard or multistandard plate with integrated 13A switched socket and 2 USB charging ports for flush-mounted horizontal installation
  • Solid dark bronze lacquered aluminum plate with matt finish for a deep, metallic aesthetic aligned with Arteor Advance
  • Metal front plate in aluminum, halogen free and IK02 impact rated, providing robust mechanical protection for domestic switching devices
  • Slender monobloc design with snap-on fastening for precise alignment and minimalist visual integration on the wall
  • Operating temperature range -5 to 35° C and storage temperature -10 to 70° C, recommended for indoor use in residential and commercial environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Deep bronze finish evoking classic ambiance with cool sensation of metal
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04500EN-01.pdf pdf (0.51 Mo)
