Arteor Advance - 1G British Standard plate for 5A and 13A switched socket outlet - Matt titanium - Matt polycarbonate monobloc

Arteor Advance Legrand

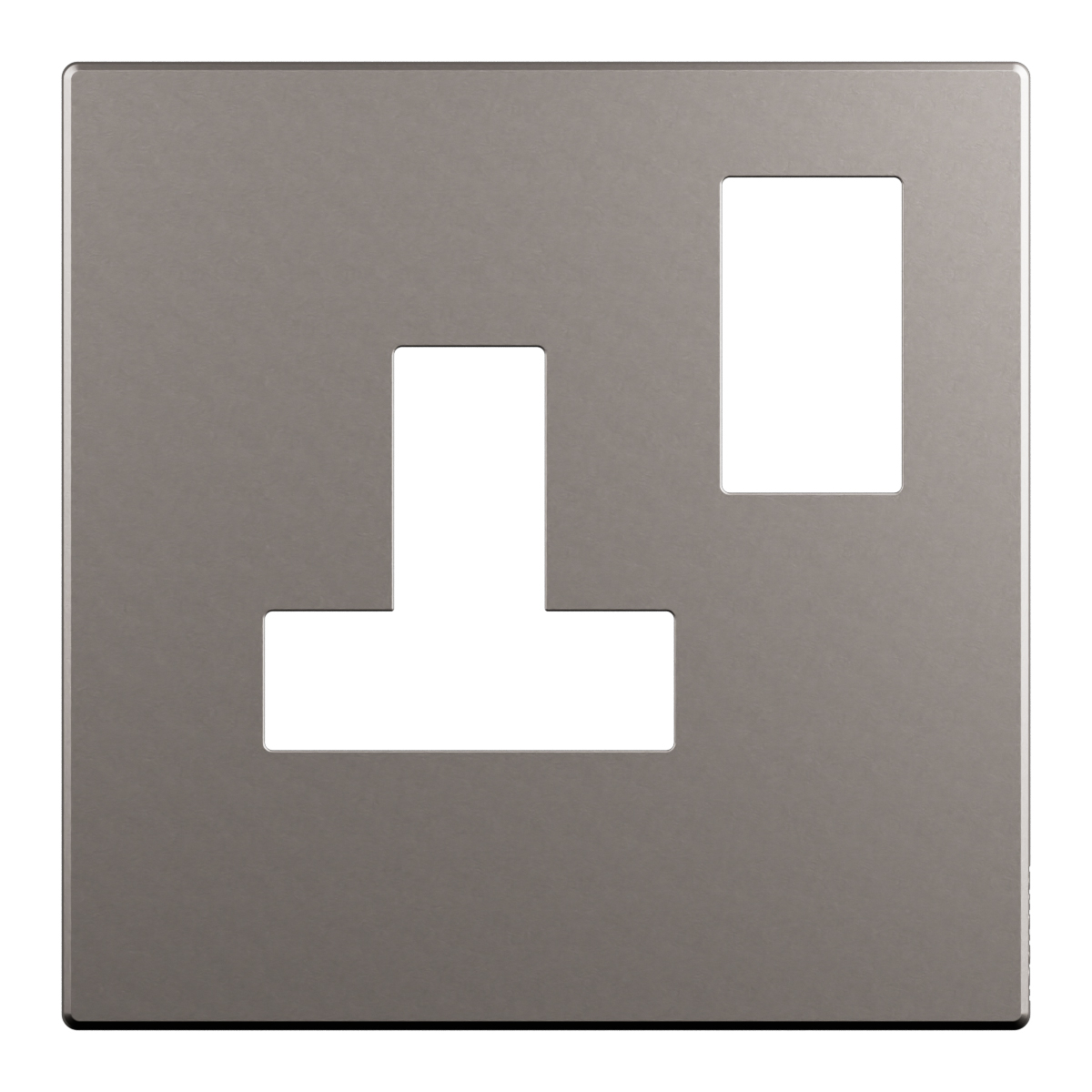

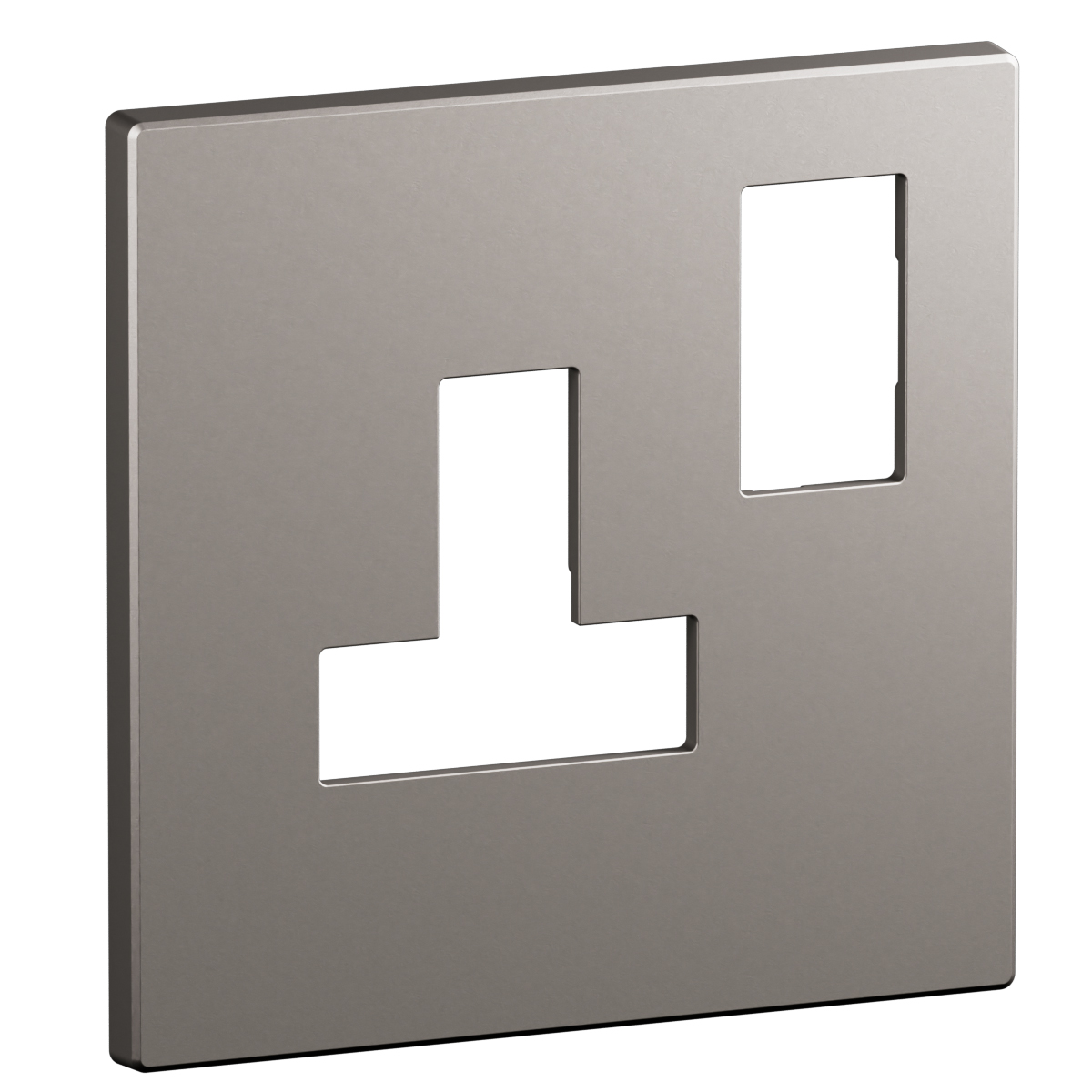

Arteor Advance - 1G British Standard plate for 5A and 13A switched socket outlet - Matt titanium - Matt polycarbonate monobloc

REF. AA1100MT EAN. 3414972719735
This 1-gang Arteor Advance plate for British Standard 5A and 13A switched socket outlets combines a minimalist monobloc design with durable, halogen-free thermoplastic.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-gang Arteor Advance plate for British Standard 5A and 13A switched socket outlets combines a minimalist monobloc design with durable, halogen-free thermoplastic.

Product characteristics
  • One-gang cover plate for British Standard 5A and 13A switched socket outlets, optimized for single-point installations
  • Matt titanium finish providing a smooth, low-glare metallic appearance for high-end architectural integration
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact rated IK02 for robust, safe use
  • Slender monobloc design with snap-on fastening for clean aesthetics and quick flush-mounted installation
  • Part of the Arteor Advance range, horizontal 1-module frame (2 horizontal modules) for indoor residential and commercial applications, operating from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Titanium with a smooth matte aspect
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
