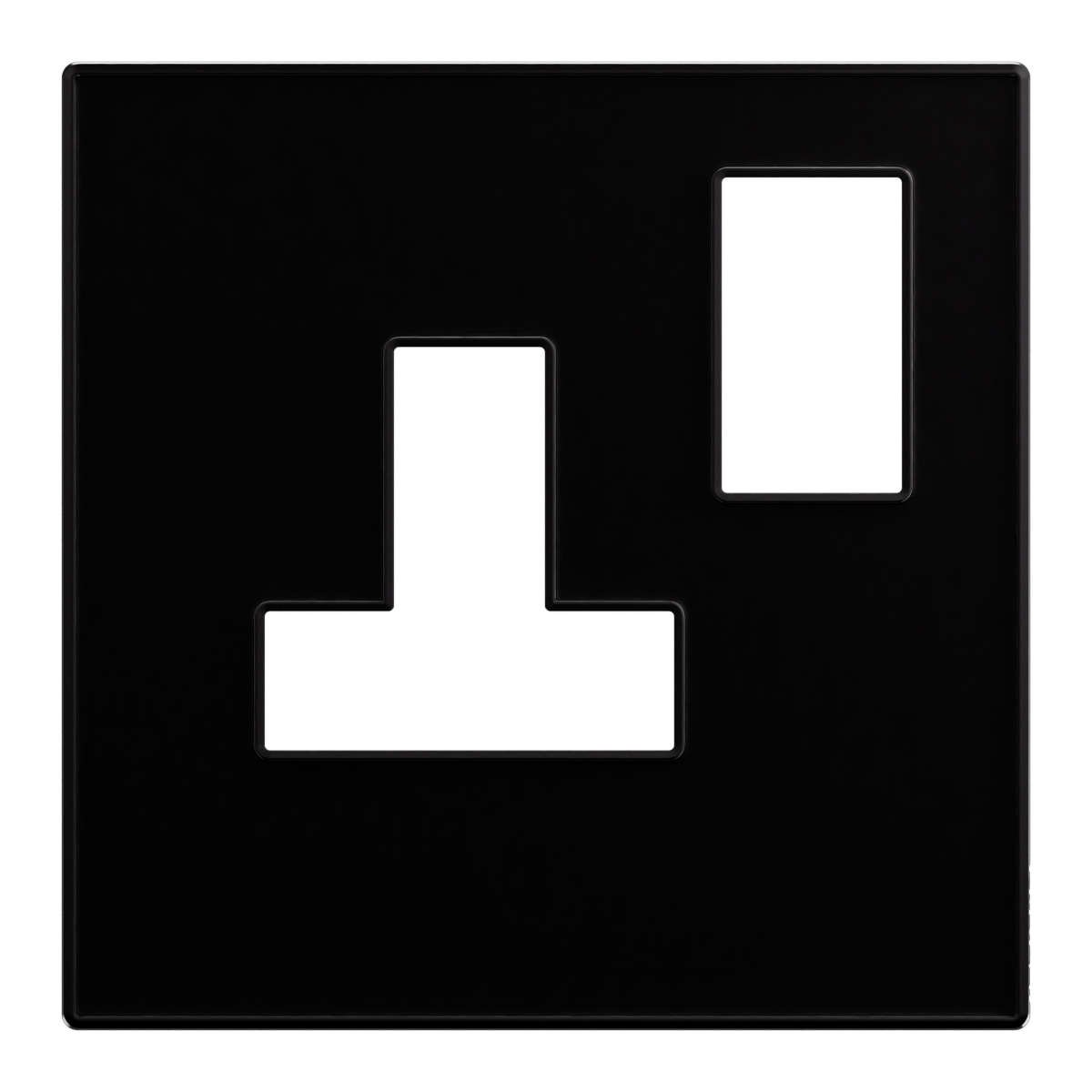

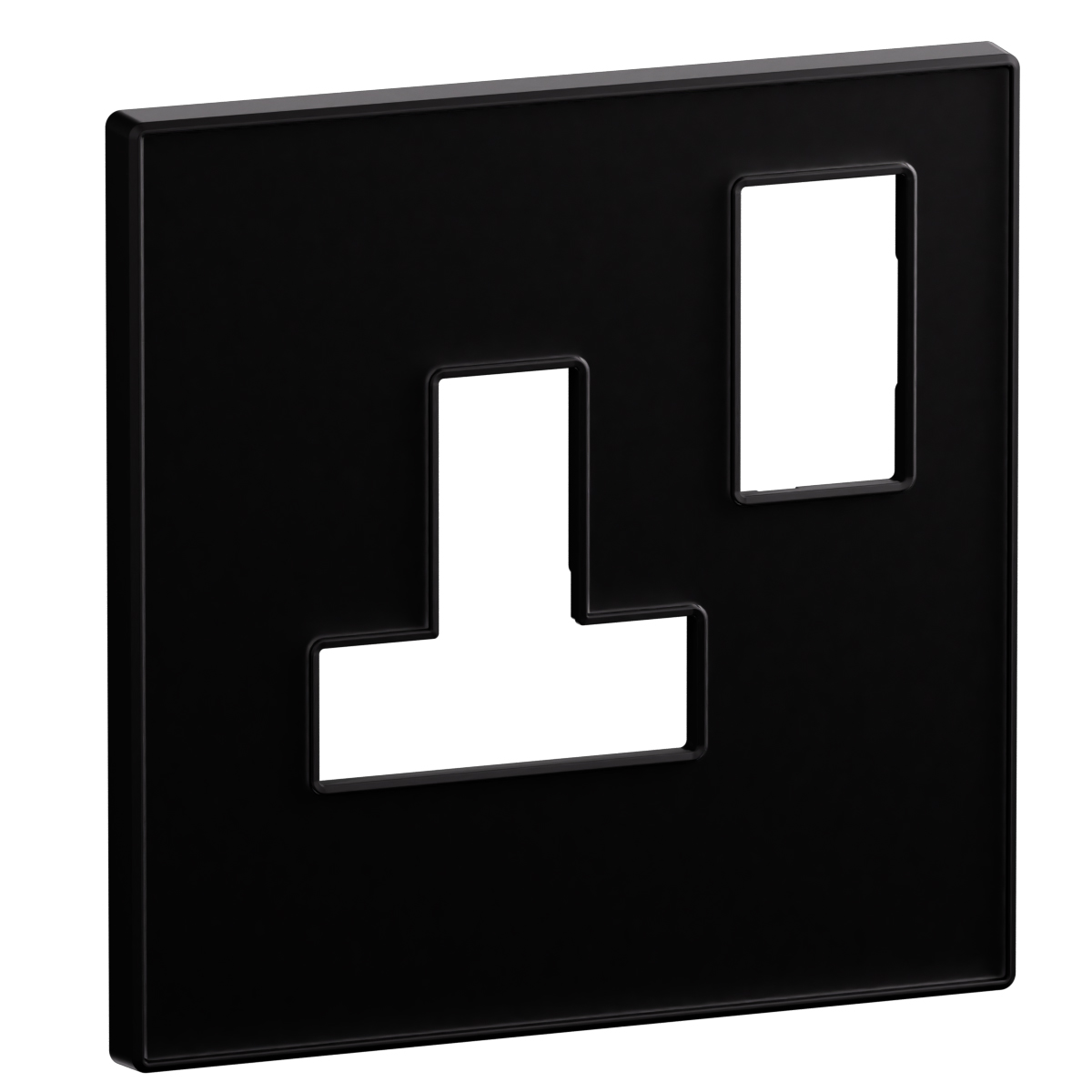

Arteor Advance - 1G British Standard plate for 5A and 13A switched socket outlet - Frosted black crystal polycarbonate

Arteor Advance Legrand

Arteor Advance - 1G British Standard plate for 5A and 13A switched socket outlet - Frosted black crystal polycarbonate

REF. AA1100FB EAN. 3414972719643
This 1-gang Arteor Advance plate for British Standard 5A and 13A switched socket outlets features a frosted black matt crystal polycarbonate front for velvet touch and full opacity.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-gang Arteor Advance plate for British Standard 5A and 13A switched socket outlets features a frosted black matt crystal polycarbonate front for velvet touch and full opacity.

Product characteristics
  • One-gang cover plate for British Standard 5A and 13A switched socket outlet, optimized for single-point installations
  • Frosted black matte finish providing refined aesthetics, reduced glare, and consistent black opacity
  • Crystal polycarbonate thermoplastic plate offering high mechanical stability, halogen-free composition, and IK02 impact resistance
  • Slender monobloc design with snap-on fastening for precise flush-mounted installation and clean wall integration
  • Horizontal 1-module x 2 modules configuration, operating temperature range -5 to 35° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
