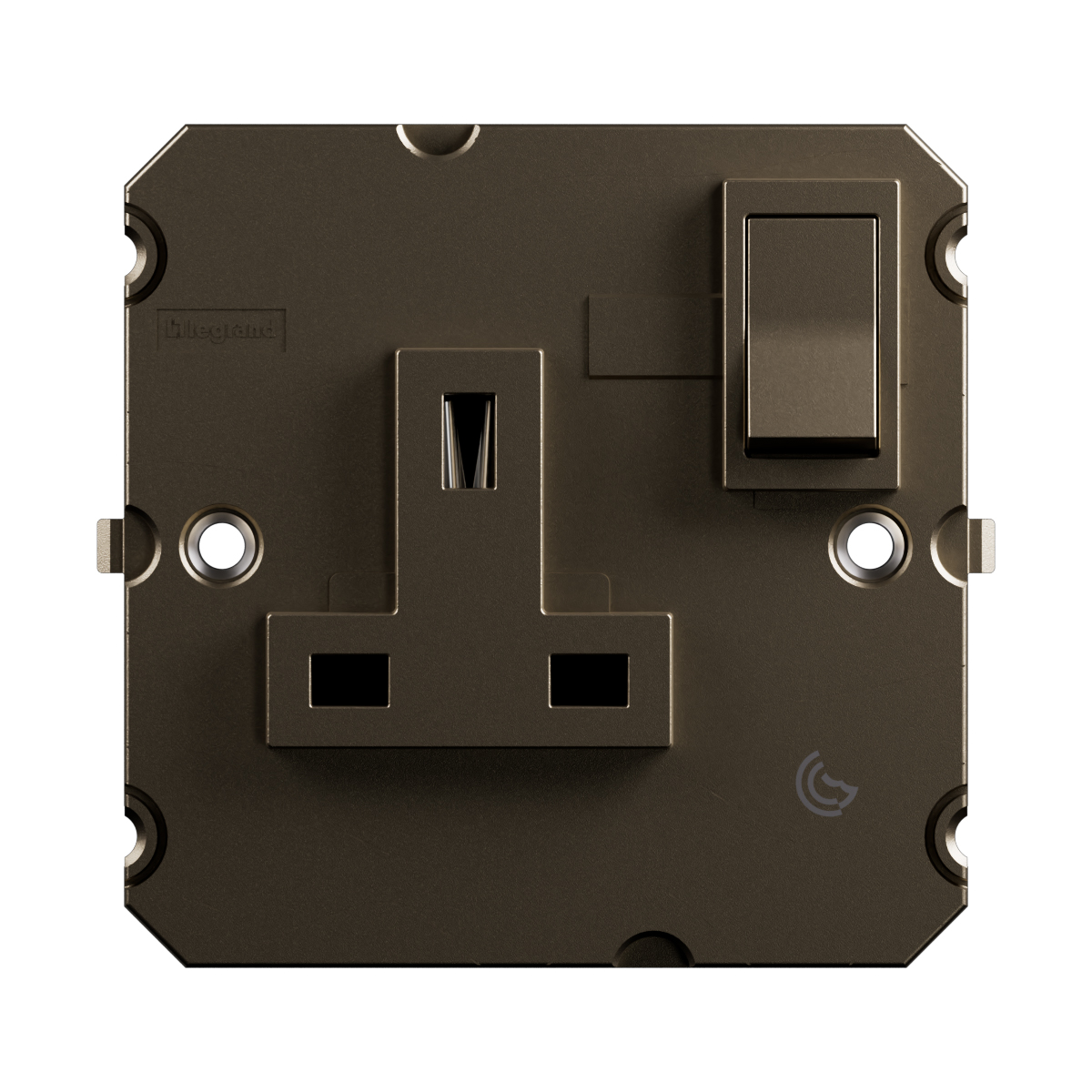

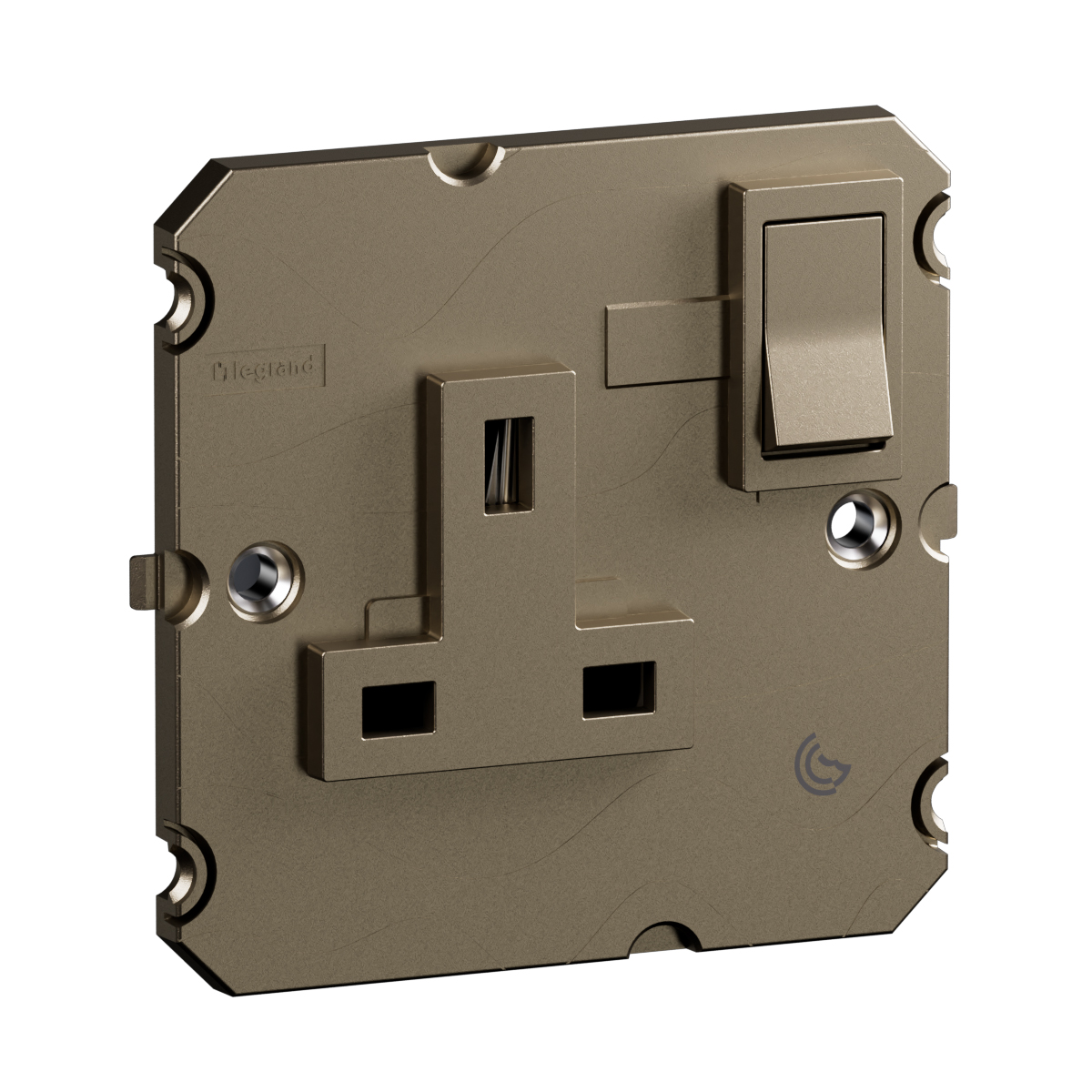

Name: Arteor Advance - 1G British Standard 13A 2P+E double pole switched socket dark bronze - Flush-mounted IP20 - Safety shutters
SKU: AA3202DB

Description

Allows connecting an electrical appliance through a 1 gang British Standard 13A 2P+E double pole switched socket. Dark bronze matt lacquered thermoplastic finish enhances durability and aesthetics. Marked screw terminals.

Product characteristics

One-gang British Standard 13A 2P+E double-pole switched socket outlet, 250V AC, 50-60Hz
Dark bronze matt lacquered thermoplastic finish aligned with Arteor Advance aesthetic
Integrated earth contact with flat protective pin for reliable grounding
Clearly marked screwed terminals with terminal marking indication for fast, error-free wiring (1mm² to 4mm² flexible or rigid)
Flush-mounted, insulated IP20 socket for indoor use, nominal current 13A, operating temperature -5 to 35° C

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

Deep bronze finish evoking classic aesthetic

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	Yes
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	2
Number of active contacts (square)	0
Mounting direction	Horizontal and vertical
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	0
Number of empty module positions	0
Number of socket outlets	1
Socket outlets phase-separated	No
Number of socket outlets switchable	1
Number of phases	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	No
Colour	Bronze
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	Yes
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic

Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No
With on/off switch	Yes
Colour of switch operator	Bronze
Rotated central insert	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	83.5 mm
Device height	78.5 mm
Device depth	30.8 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	20 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
Cable support	Not applicable
Contains Batteries	No
Connected object	No
