Arteor Advance - 13A unswitched fused connection unit matt titanium - Double pole fused 13A - Flex outlet with cord grip

Arteor Advance Legrand

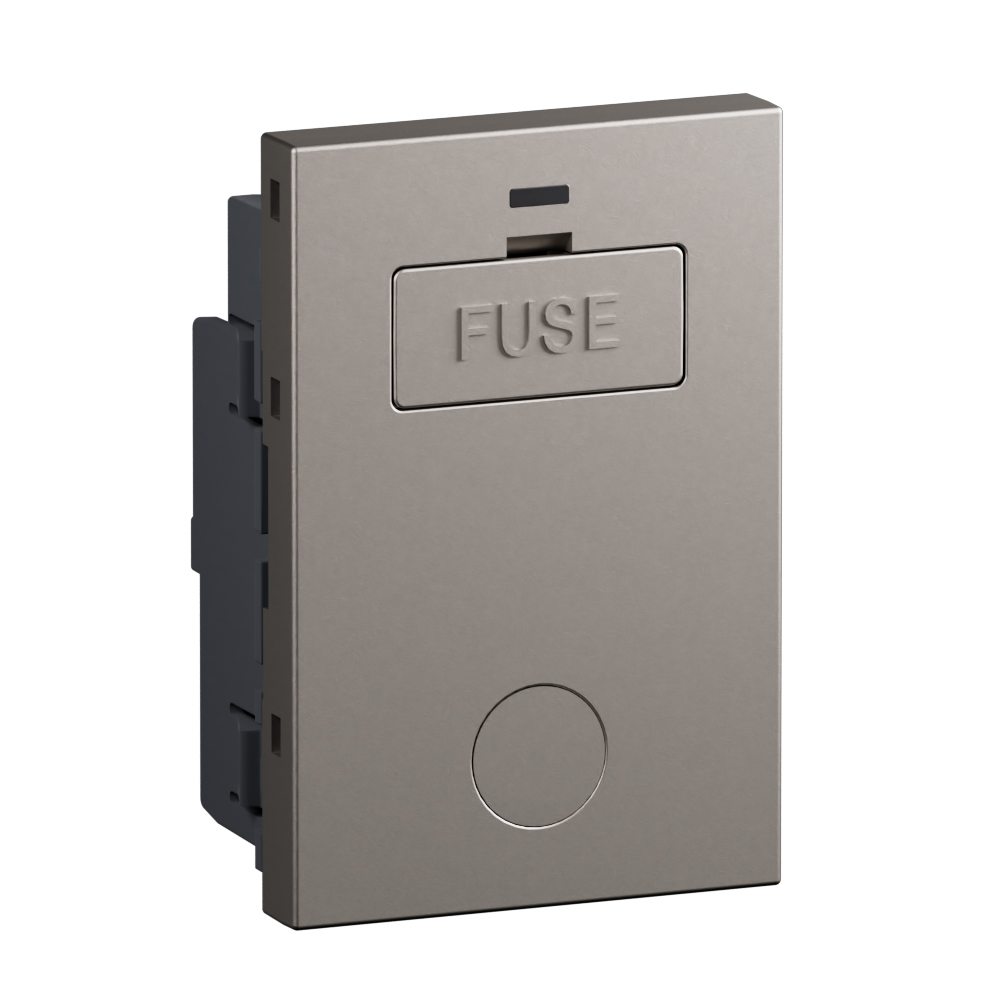

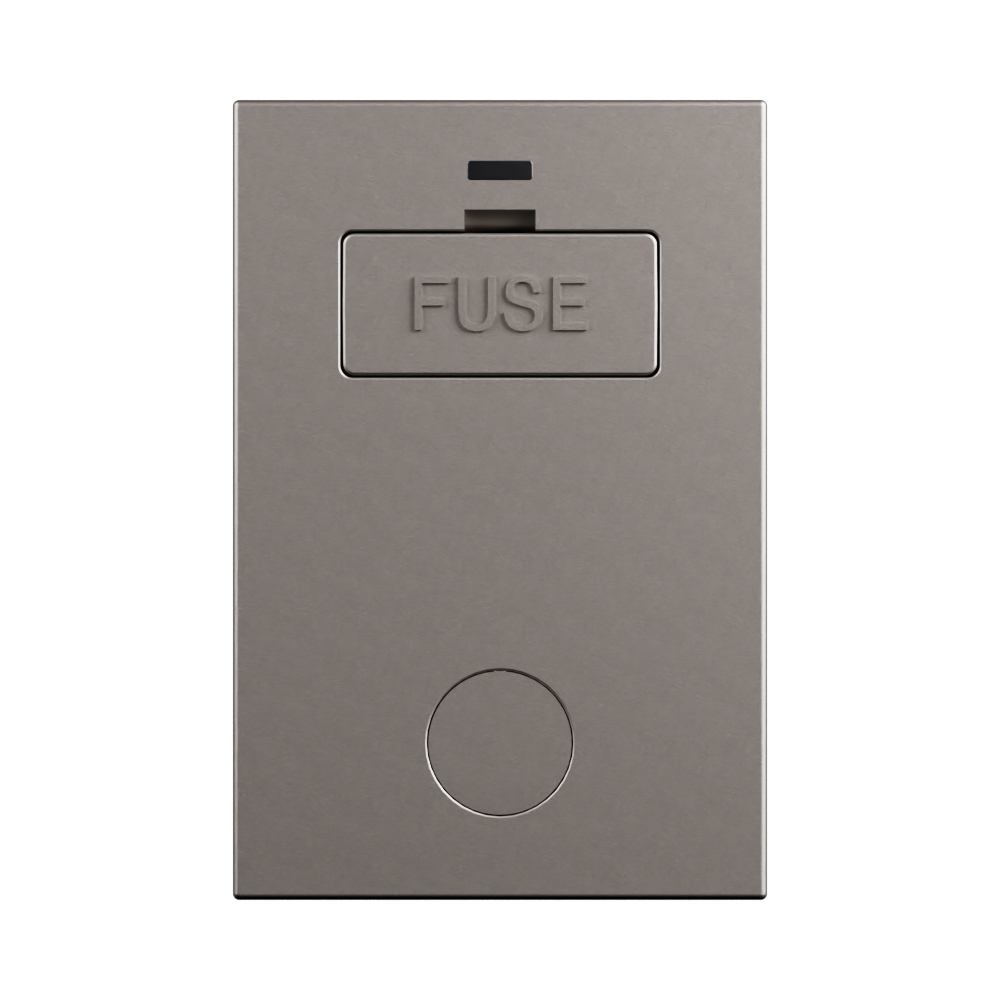

Arteor Advance - 13A unswitched fused connection unit matt titanium - Double pole fused 13A - Flex outlet with cord grip

REF. AC620MT EAN. 3414972767972
Used as a 13A unswitched fused connection unit for permanent appliance connections, this outlet ensures double-pole protection. Its flex outlet knockout with cord grip and padlockable fuse carrier enhance safety.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as a 13A unswitched fused connection unit for permanent appliance connections, this outlet ensures double-pole protection. Its flex outlet knockout with cord grip and padlockable fuse carrier enhance safety.

Product characteristics
  • Double pole 13A unswitched fused connection unit with supplied fuse for permanent appliance connection
  • Matt titanium thermoplastic front with smooth titanium finish for coordinated Arteor Advance aesthetics
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit
  • Captive, padlockable fuse carrier for secure isolation and simplified maintenance
  • Flush-mounted appliance connection box, IP20, with screwed terminals and captive terminal screws for reliable indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Titanium
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 32 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
