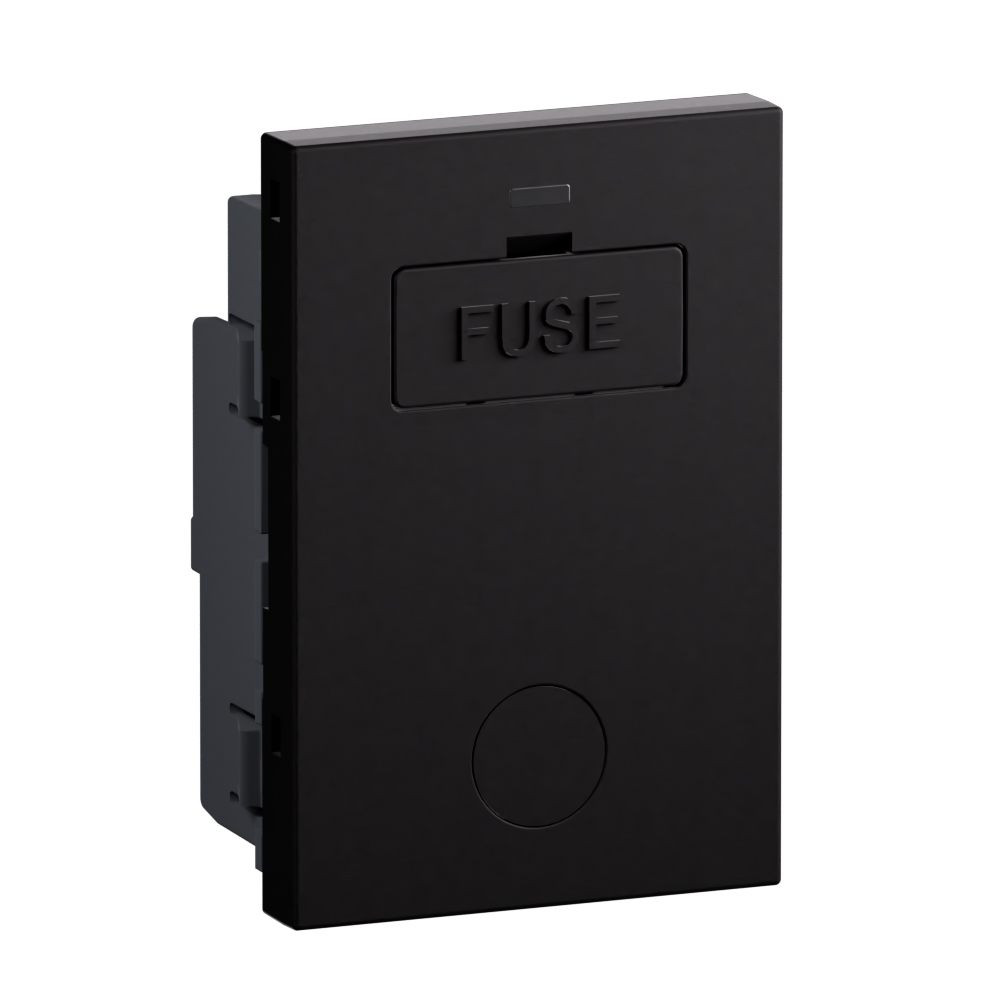

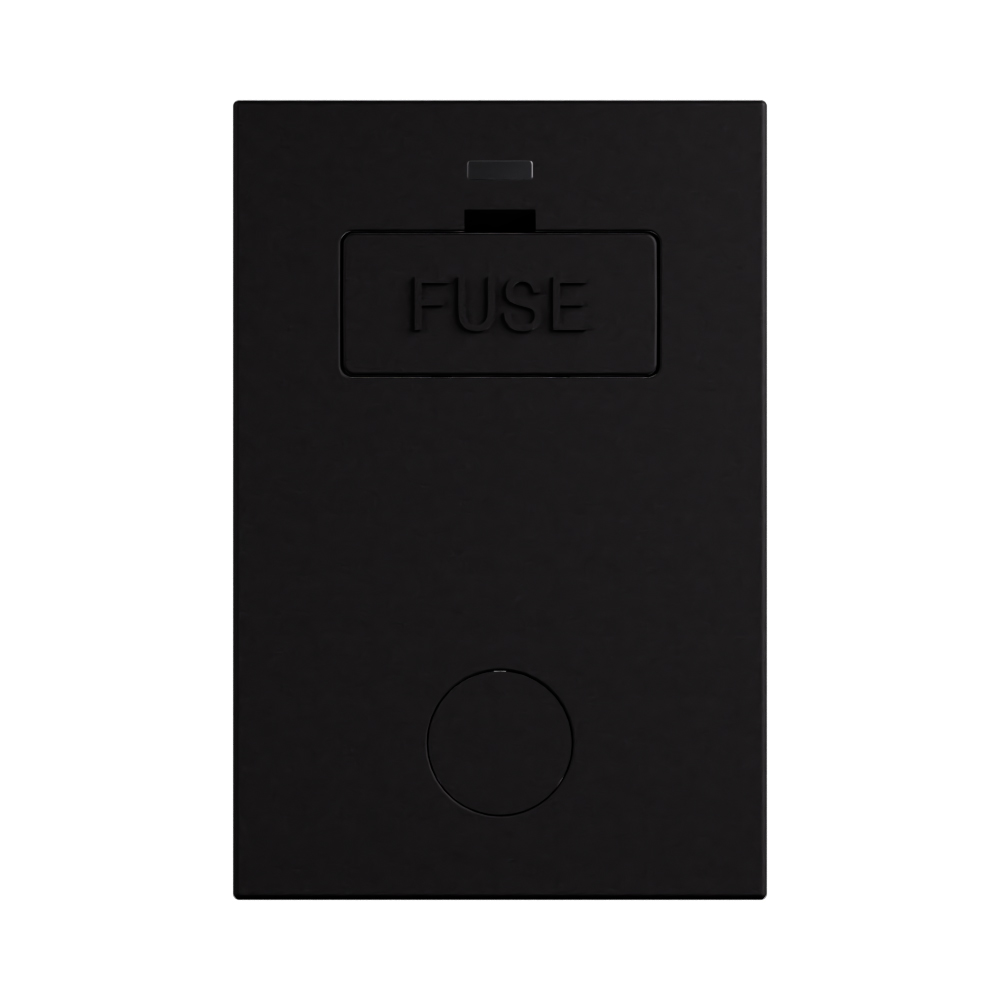

Arteor Advance - 13A unswitched fused connection unit matt black - Double pole fused 13A - Flex outlet knockout and cord grip

Arteor Advance Legrand

Arteor Advance - 13A unswitched fused connection unit matt black - Double pole fused 13A - Flex outlet knockout and cord grip

REF. AC620MB EAN. 3414972767941
Used as an outlet with built-in fuse for permanent appliance connections, this 13A unswitched fused connection unit ensures secure double pole isolation. Its flex outlet knockout with cord grip enhances safety, while the matt black finish
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A unswitched fused connection unit ensures secure double pole isolation. Its flex outlet knockout with cord grip enhances safety, while the matt black finish

Product characteristics
  • Double pole 13A unswitched fused connection unit (fuse supplied) for permanent appliance connection
  • Matt black thermoplastic front with deep black smooth matt aspect for coordinated aesthetics
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit
  • Captive, padlockable fuse carrier for secure maintenance and prevention of unauthorized access
  • Flush-mounted appliance connection box, IP20, with screwed terminals and captive terminal screws for reliable indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Deep black with a smooth matte finish

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Black
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 32 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No
