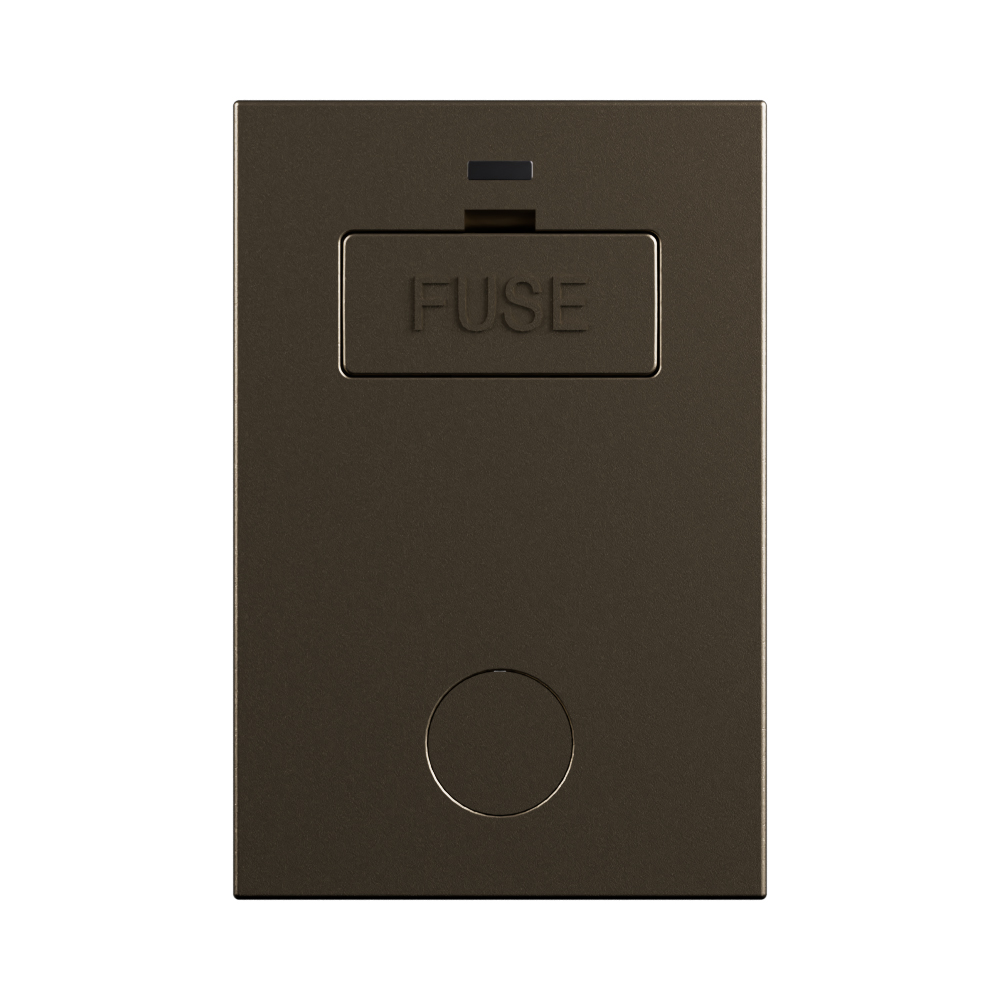

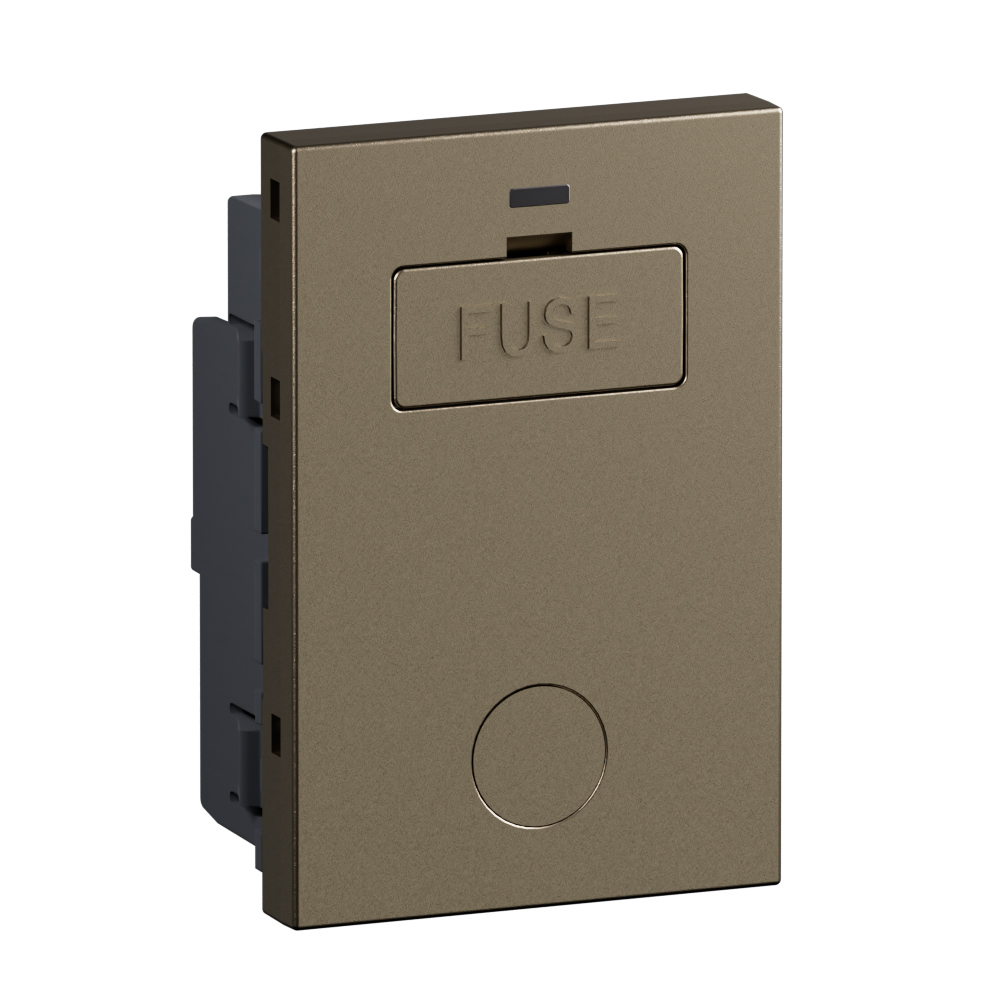

Arteor Advance - 13A unswitched fused connection unit dark bronze - Double pole fused 13A - Flex outlet knockout and cord grip

Arteor Advance Legrand

Arteor Advance - 13A unswitched fused connection unit dark bronze - Double pole fused 13A - Flex outlet knockout and cord grip

REF. AC620DB EAN. 3414972928281
Used as an outlet with built-in 13A fuse for permanent appliance connections, this unswitched fused connection unit ensures secure double pole isolation. Its flex outlet knockout with cord grip and padlockable fuse carrier enhance safety.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in 13A fuse for permanent appliance connections, this unswitched fused connection unit ensures secure double pole isolation. Its flex outlet knockout with cord grip and padlockable fuse carrier enhance safety.

Product characteristics
  • Double pole 13A unswitched fused connection unit with supplied fuse for permanent appliance connection
  • Dark bronze thermoplastic front plate providing a deep bronze finish that complements Arteor Advance aesthetics
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit
  • Captive, padlockable fuse carrier for secure fuse retention and safe isolation during maintenance
  • Flush-mounted appliance connection box with screwed terminals, captive terminal screws, IP20 rating, and compact 45.1x67.5x32mm dimensions for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Deep bronze finish evoking classic aesthetic

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Bronze
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 32 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
