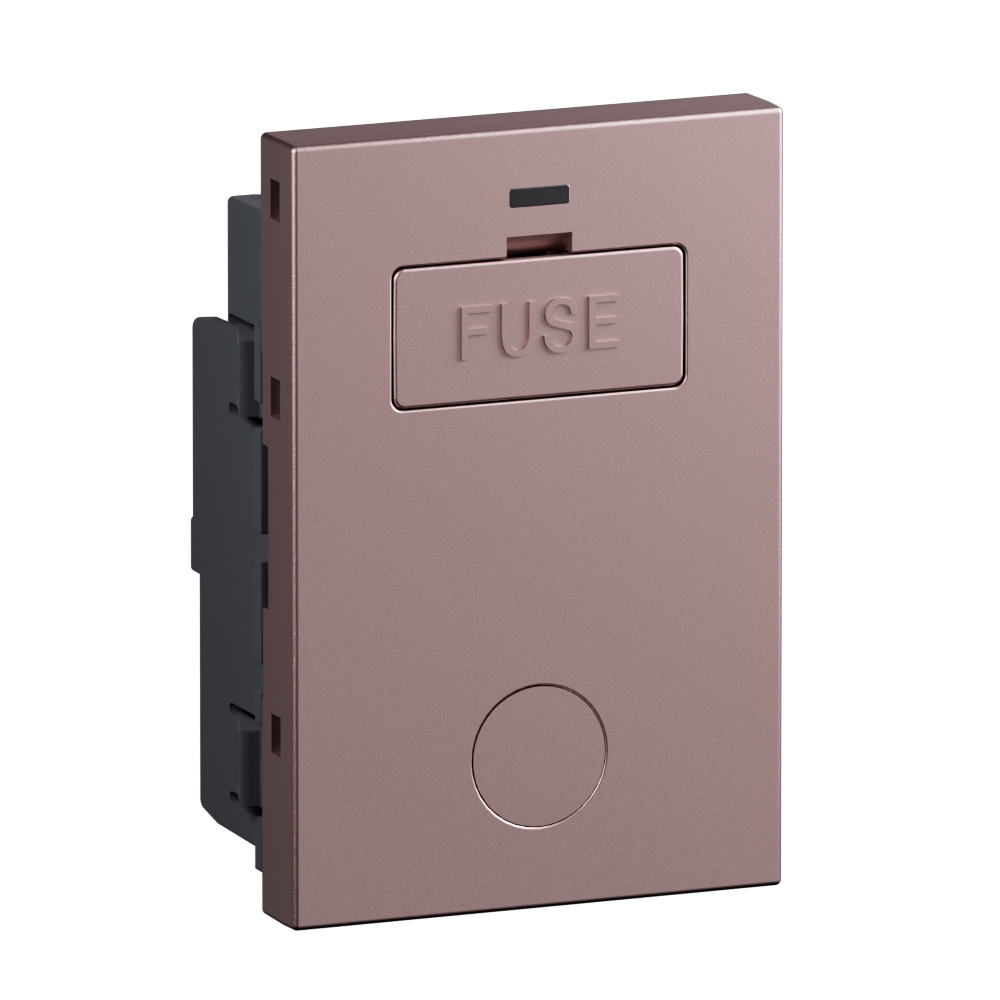

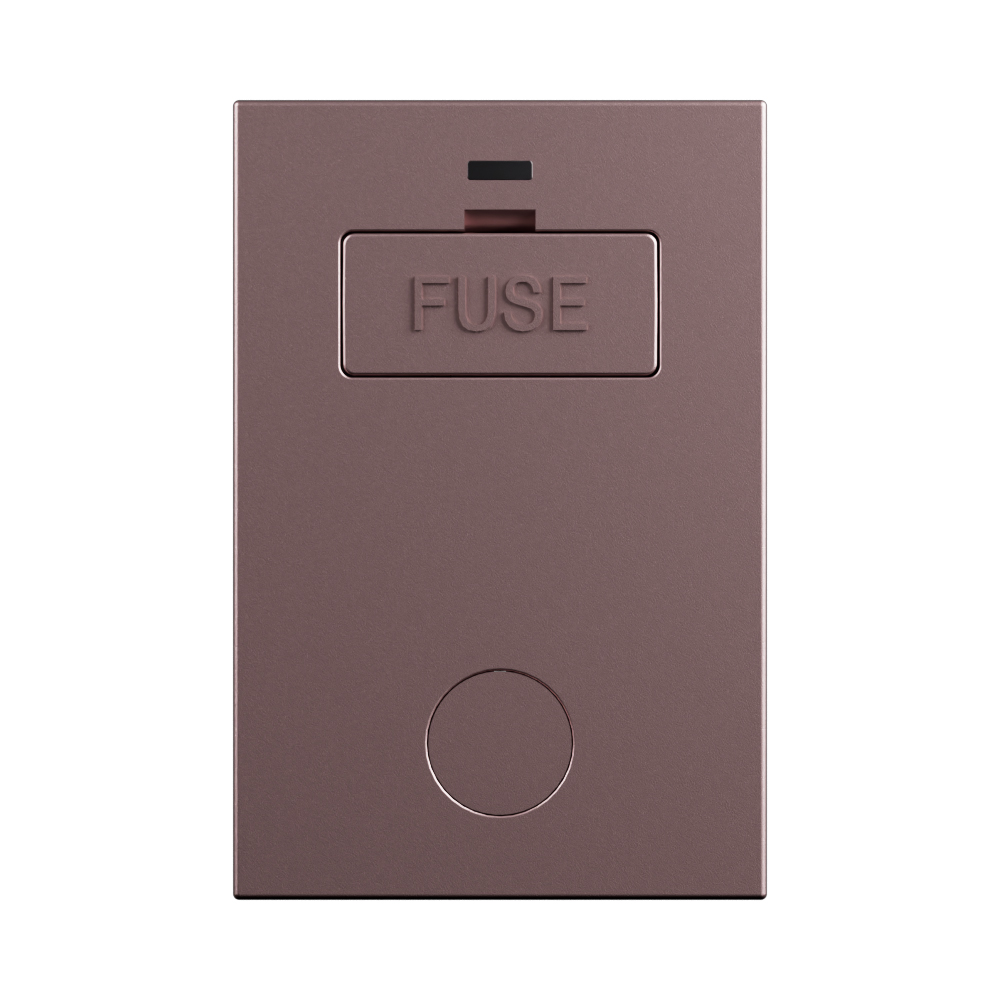

Arteor Advance - 13A unswitched fused connection unit + cord outlet rose - Double pole 13A - Flex outlet knockout and cord grip

Arteor Advance Legrand

Arteor Advance - 13A unswitched fused connection unit + cord outlet rose - Double pole 13A - Flex outlet knockout and cord grip

REF. AC620RS EAN. 3414972928311
Used as an outlet with built-in fuse for permanent appliance connections, this 13A unswitched fused connection unit ensures double pole protection with a padlockable fuse carrier, flex outlet knockout, cord grip, and captive terminal screws
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A unswitched fused connection unit ensures double pole protection with a padlockable fuse carrier, flex outlet knockout, cord grip, and captive terminal screws

Product characteristics
  • Double pole 13A fused connection unit supplied with integral fuse for permanent appliance connection
  • Cord outlet rose configuration for direct appliance termination and neat ceiling or wall interface
  • Integrated flex outlet knockout with cord grip for secure cable retention and strain relief
  • Captive, padlockable fuse carrier enabling safe isolation and preventing unauthorized fuse removal
  • Flush-mounted thermoplastic appliance connection box, IP20, IK04, 45.1x67.5x32mm, for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Other
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 32 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
