Arteor Advance - 13A switched fused connection unit with cord outlet and LED power indicator - Double pole - Padlockable fuse carrier

Arteor Advance Legrand

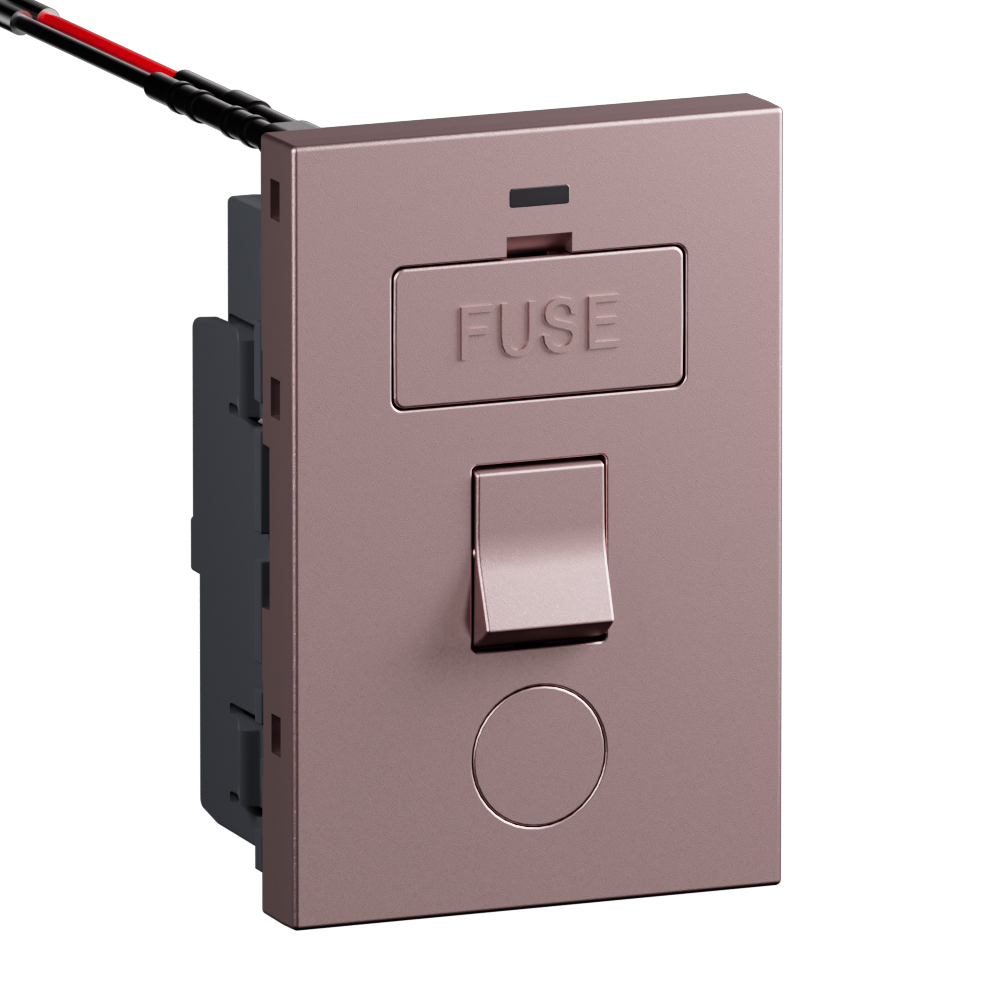

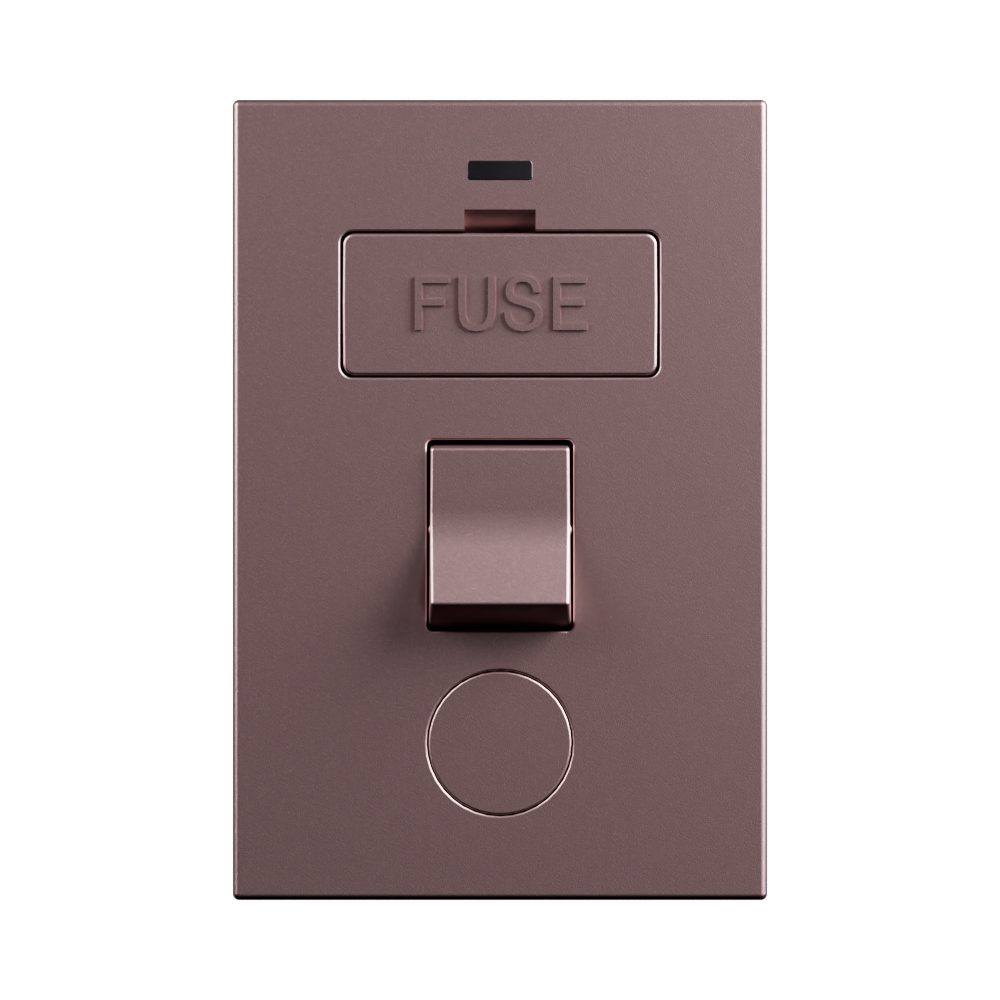

Arteor Advance - 13A switched fused connection unit with cord outlet and LED power indicator - Double pole - Padlockable fuse carrier

REF. AC622RS EAN. 3414972928496
Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit includes a flex outlet knockout with cord grip and captive, padlockable fuse carrier with LED power indicator.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit includes a flex outlet knockout with cord grip and captive, padlockable fuse carrier with LED power indicator.

Product characteristics
  • Double pole 13A switched fused connection unit with supplied fuse for permanent appliance connection
  • Rose finish front plate providing a distinctive aesthetic within the Arteor Advance range
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit
  • Captive, padlockable fuse carrier enhancing safety and preventing unauthorized fuse removal
  • Flush-mounted thermoplastic appliance connection box, IP20, with screwed terminals and captive terminal screws for reliable indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Other
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 34.6 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
