Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator matt white - Double pole 13A IP20 plastic

Arteor Advance Legrand

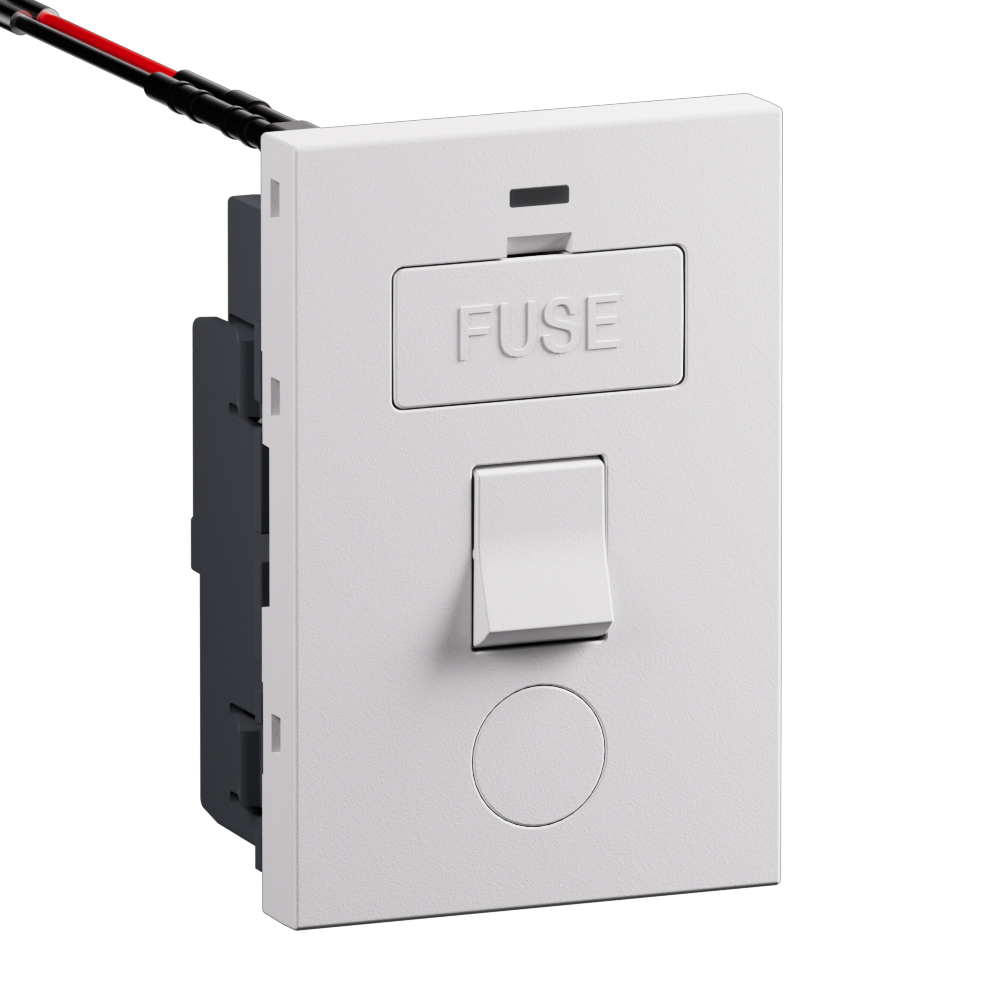

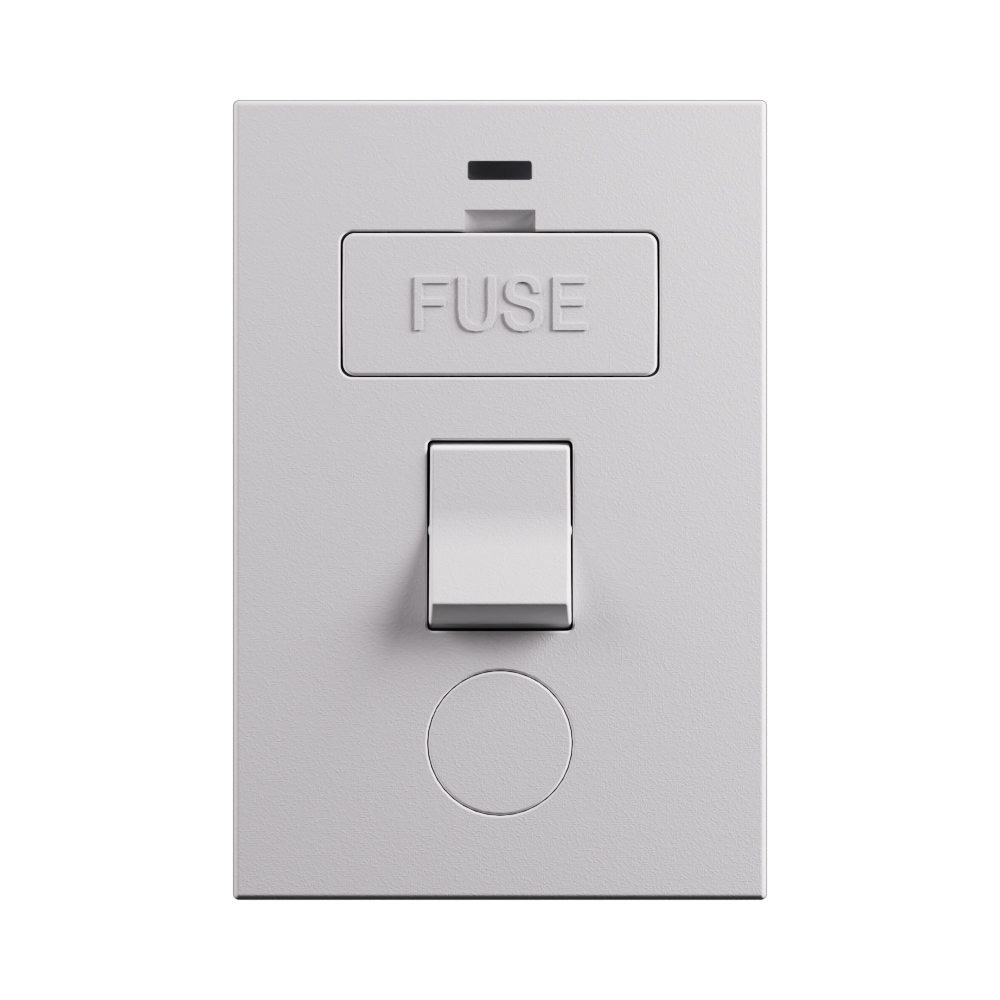

Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator matt white - Double pole 13A IP20 plastic

REF. AC622MW EAN. 3414972768184
Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit offers a flex outlet knockout with cord grip, padlockable fuse carrier, LED power indicator.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit offers a flex outlet knockout with cord grip, padlockable fuse carrier, LED power indicator.

Product characteristics
  • Double pole 13A switched fused connection unit with supplied fuse for permanent appliance connection
  • Smooth matt white thermoplastic front (similar to RAL 9003) for a discreet, contemporary finish
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit
  • Captive, padlockable fuse carrier for enhanced safety and secure isolation during maintenance
  • Flush-mounted appliance connection box with screwed terminals, IP20 rating, and compact 45.1x67.5x34.6mm dimensions
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour White
RAL-number (similar) 9003
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 34.6 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
