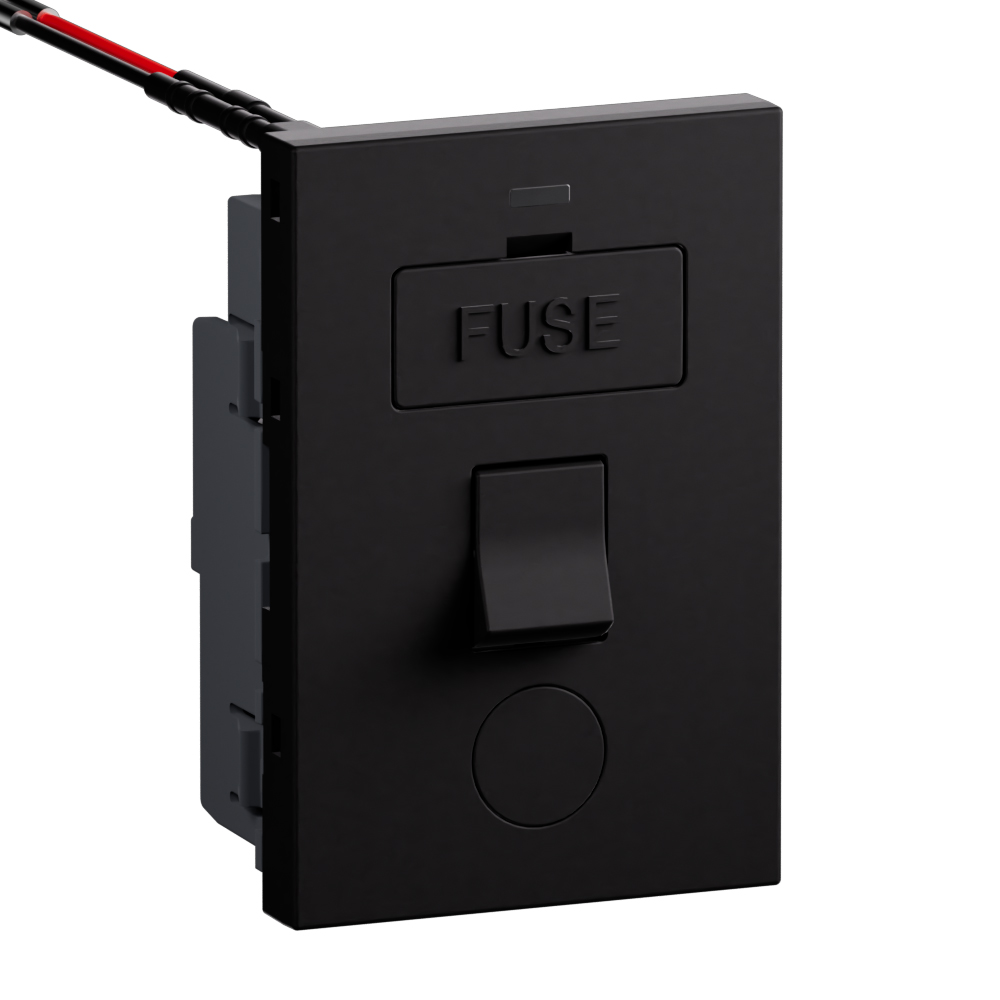

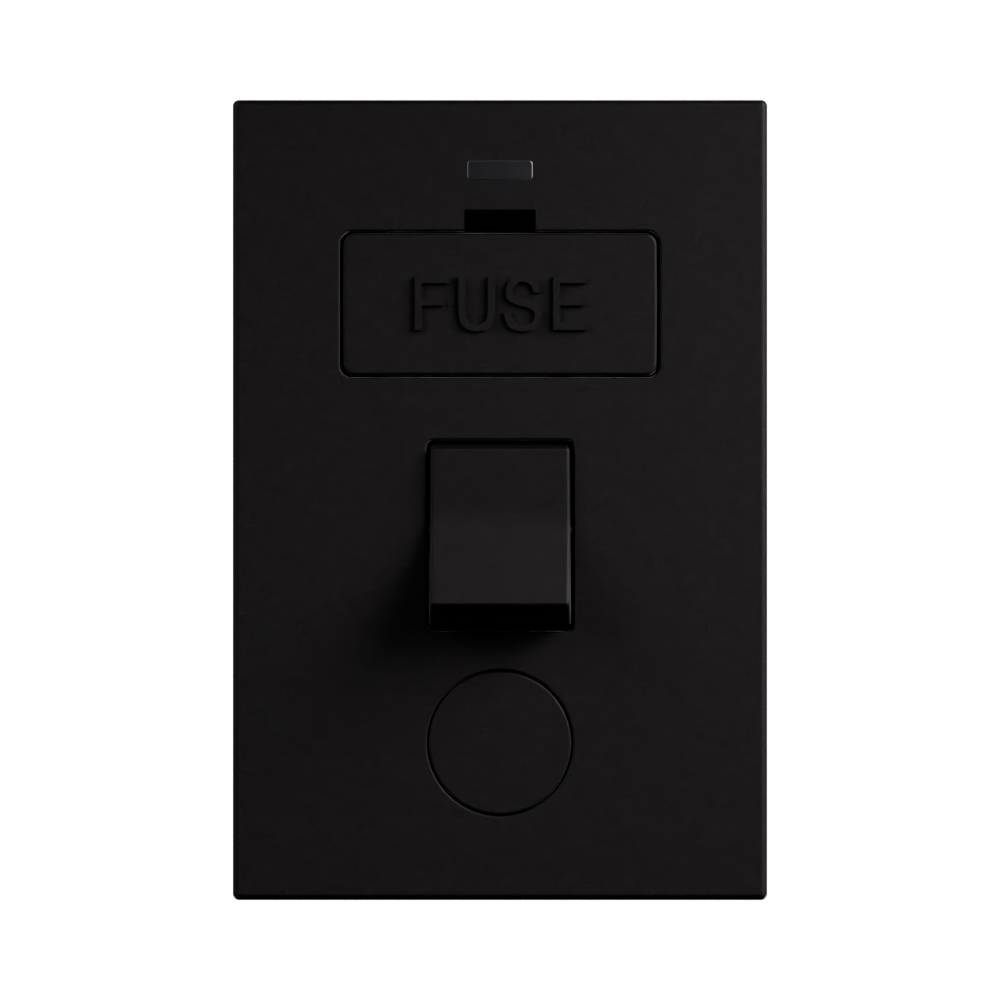

Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator - Double pole - Deep matt black finish

Arteor Advance Legrand

Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator - Double pole - Deep matt black finish

REF. AC622MB EAN. 3414972768122
Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit ensures safe loads. Its LED power indicator, flex outlet knockout with cord grip, and padlockable fuse carrier
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit ensures safe loads. Its LED power indicator, flex outlet knockout with cord grip, and padlockable fuse carrier

Product characteristics
  • Double pole 13A switched fused connection unit with supplied fuse for permanent appliance connection and circuit protection
  • Deep matt black thermoplastic front in Arteor Advance design for a discreet, contemporary aesthetic in premium interiors
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit on fixed appliances
  • Captive, padlockable fuse carrier to prevent fuse loss and enable safe isolation during maintenance
  • Flush-mounted appliance connection box with screwed terminals, IP20 rating, IK04 impact resistance, and operating temperature range -5 to 35° C for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Deep black with a smooth matte aspect

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Black
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 34.6 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
