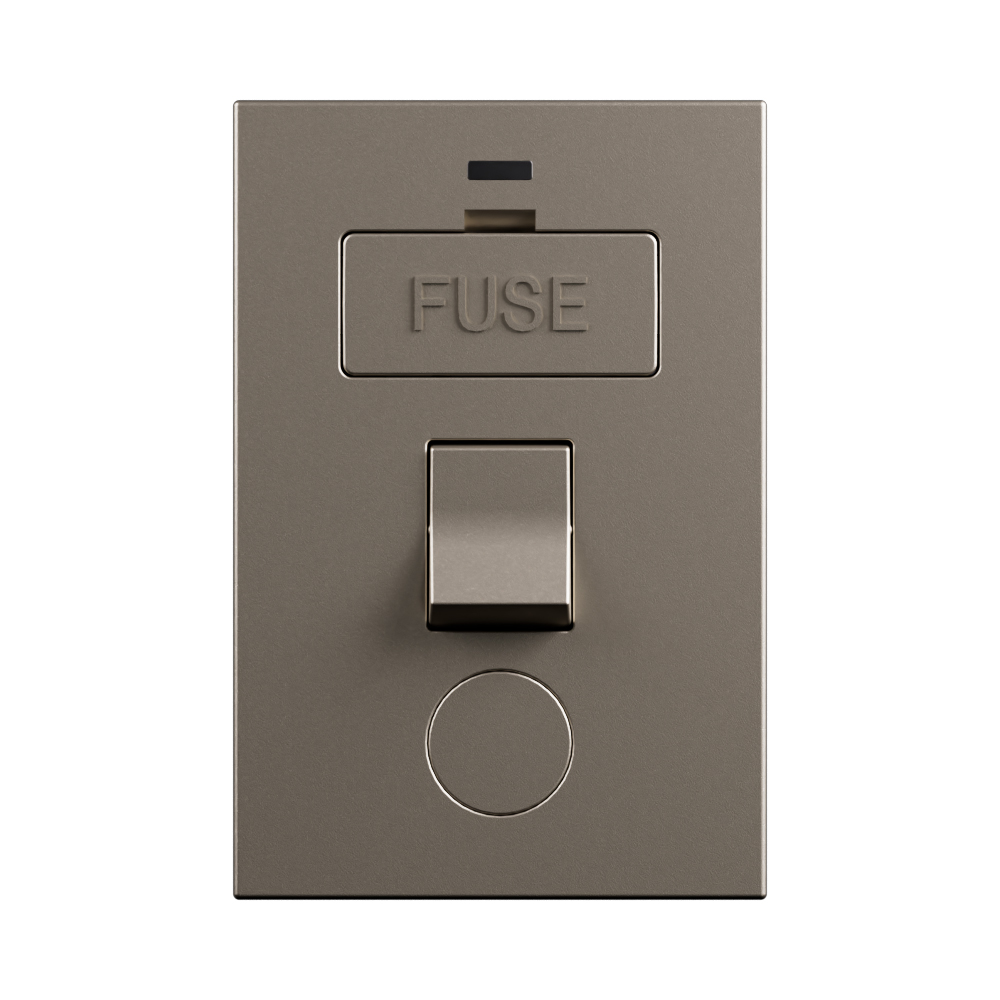

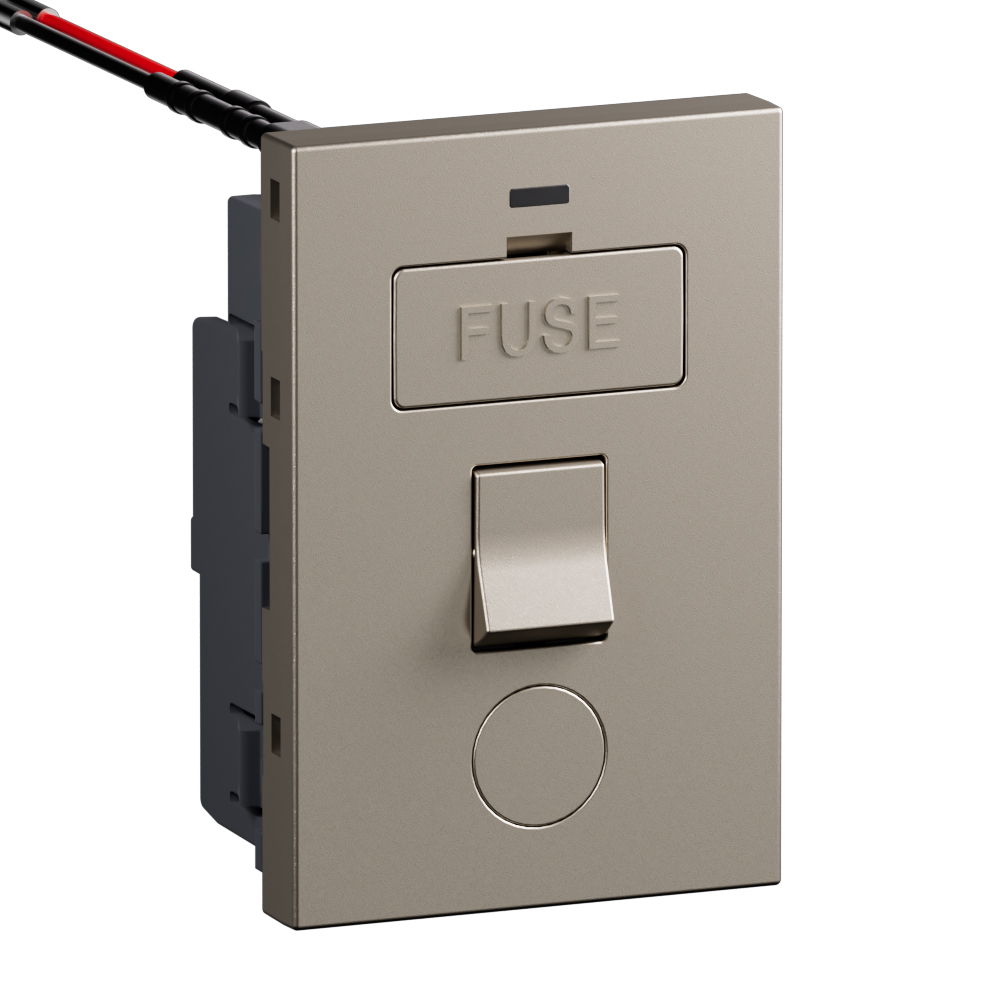

Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator Champagne - Double pole 13A - Flex outlet

Arteor Advance Legrand

Arteor Advance - 13A switched fused connection unit with cord outlet and LED indicator Champagne - Double pole 13A - Flex outlet

REF. AC622CH EAN. 3414972928434
Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit with LED power indicator ensures safe isolation, with padlockable fuse carrier and flex outlet with cord grip.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A double pole switched fused connection unit with LED power indicator ensures safe isolation, with padlockable fuse carrier and flex outlet with cord grip.

Product characteristics
  • Double pole 13A switched fused connection unit with supplied fuse for permanent appliance connection and circuit isolation
  • Champagne (warm gray-gold) thermoplastic front plate matching Arteor Advance aesthetics for premium interior applications
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved cable exit on fixed appliances
  • Captive, padlockable fuse carrier for secure fuse retention and lockout during maintenance or isolation procedures
  • Flush-mounted appliance connection box with screwed terminals, IP20 rating, and compact 45.1x67.5x34.6mm dimensions for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Gold
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 34.6 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
