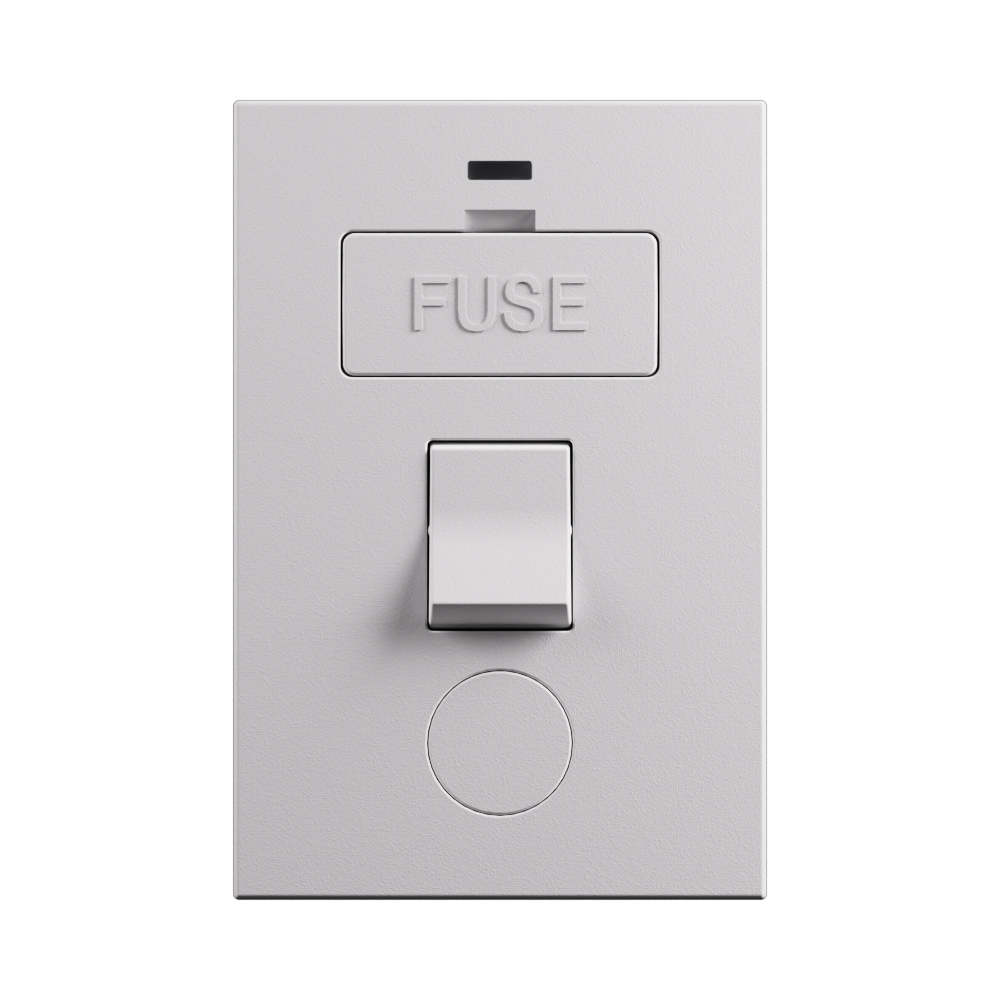

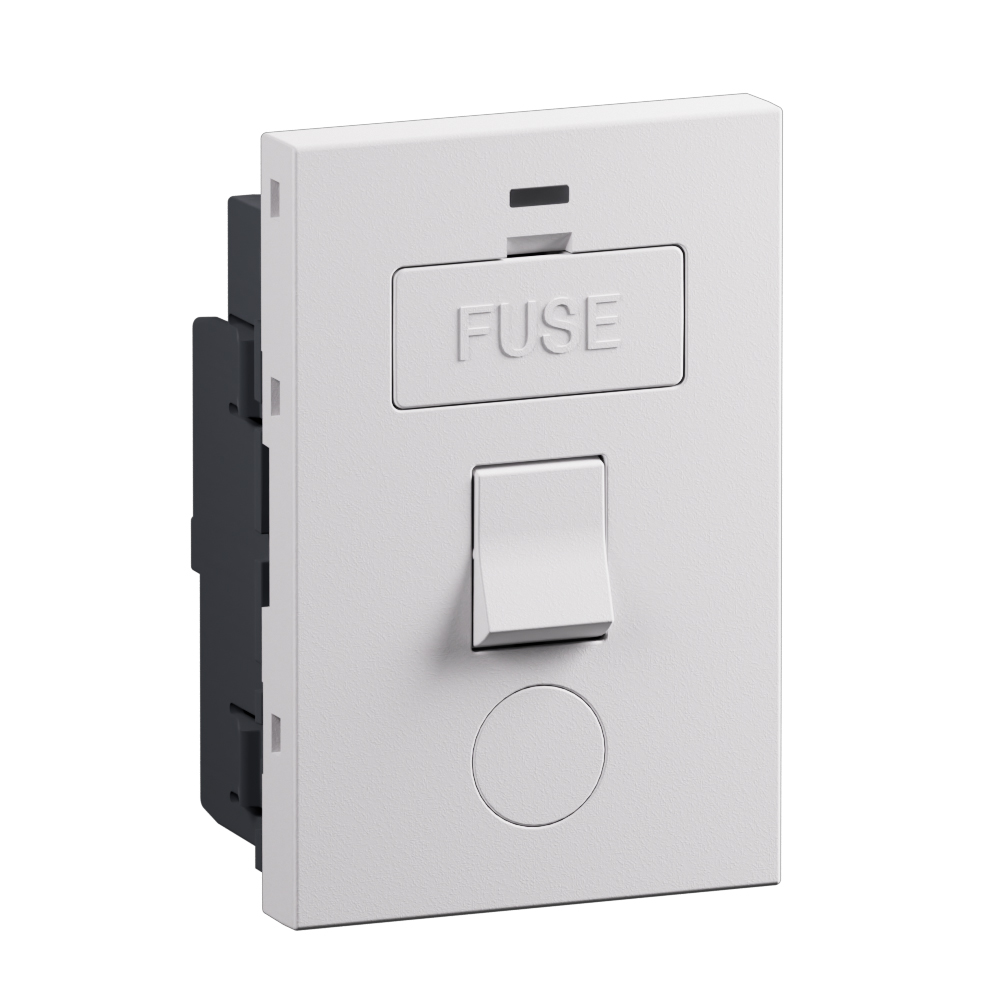

Arteor Advance - 13A switched fused connection unit + cord outlet matt white - Double pole fused 13A - Flex outlet - Flush-mounted IP20

Arteor Advance Legrand

Arteor Advance - 13A switched fused connection unit + cord outlet matt white - Double pole fused 13A - Flex outlet - Flush-mounted IP20

REF. AC621MW EAN. 3414972768092
Used as an outlet with built-in fuse for permanent appliance connections, this 13A switched fused connection unit in matt white ensures double pole protection. Its flex outlet knockout with cord grip and captive terminal screws provide
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used as an outlet with built-in fuse for permanent appliance connections, this 13A switched fused connection unit in matt white ensures double pole protection. Its flex outlet knockout with cord grip and captive terminal screws provide

Product characteristics
  • Double pole 13A switched fused connection unit with supplied fuse for permanent appliance protection
  • Matt white thermoplastic front, RAL 9003, with smooth powdery finish for visual consistency with Arteor Advance
  • Integrated flex outlet knockout with cord grip for secure, strain-relieved appliance cable exit
  • Captive, padlockable fuse carrier for secure isolation and maintenance safety
  • Flush-mounted appliance connection box, IP20, IK04, with screwed terminals and captive terminal screws for reliable indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Captive terminal screws
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour White
RAL-number (similar) 9003
Suitable for degree of protection (IP) IP20
Device width 45.1 mm
Device height 67.5 mm
Device depth 34.6 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

1 document
Technical Sheet
F04412EN-00.pdf pdf (0.49 Mo)
1 document
BIM Data
1 document
Agreement
AoC-TA25-0547 (0.68 Mo)
