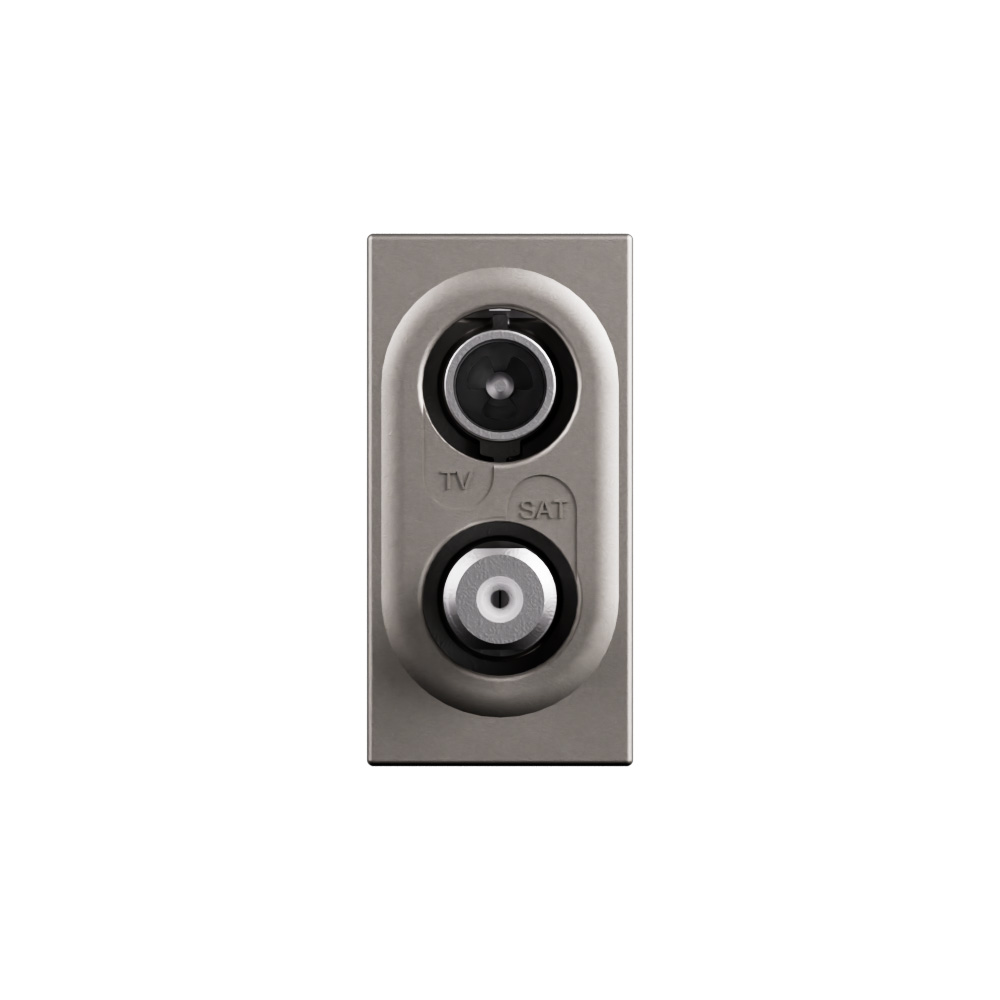

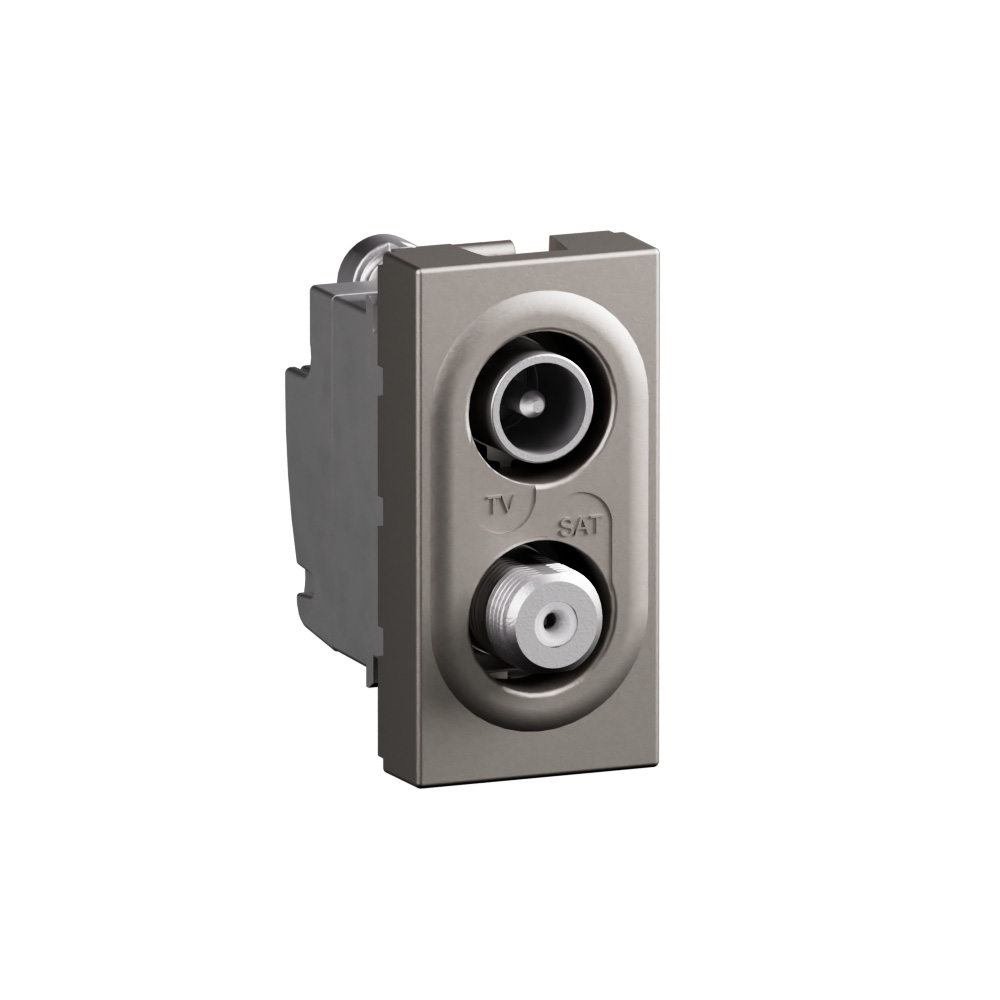

Arteor Advance - 1 module television sat shielded socket matt titanium - Class A shielded TV/SAT end socket LTE Ready UHD

Arteor Advance Legrand

Arteor Advance - 1 module television sat shielded socket matt titanium - Class A shielded TV/SAT end socket LTE Ready UHD

REF. AC4112MT EAN. 3414973075083
TV/SAT: for receiving TV and Satellite signals, UHD compatible with Class A shielded star sockets. LTE Ready (4G protected) for interference-free reception. Compact 1-module matt titanium design with screw-type terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

TV/SAT: for receiving TV and Satellite signals, UHD compatible with Class A shielded star sockets. LTE Ready (4G protected) for interference-free reception. Compact 1-module matt titanium design with screw-type terminals.

Product characteristics
  • Compact 1-module TV/SAT end socket for antenna distribution systems, optimized for module frame mounting in Arteor Advance installations.
  • Matt titanium lacquered finish for a contemporary, low-reflection appearance that coordinates with advanced architectural interiors.
  • Class A shielded TV/SAT socket with LTE-ready (4G protected) design, ensuring high immunity to interference and UHD signal compatibility.
  • Dual-outlet TV/SAT interface with tap loss of 1.5dB at 860MHz and 1.5dB at 2150MHz, supporting SAT frequency band 950MHz to 2400MHz and remote power supply.
  • Thermoplastic, halogen-free basic element with central cover plate, IP21/IK03 protection, and compact dimensions (22.5x45mm, 40mm depth) for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Model End socket
Type of socket outlet TV/SAT
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1.5 dB
Tap loss at 2150 MHz 1.5 dB
Number of outlets 2
Suitable for cable modem No
Suitable for remote power supply Yes
SAT frequency band (Min-Max) 950-2400 MHz
Colour Titanium
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 22.5 mm
Device height 45 mm
Device depth 40 mm
Min. depth of built-in installation box 40 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
RoHS DIRECTIVE
