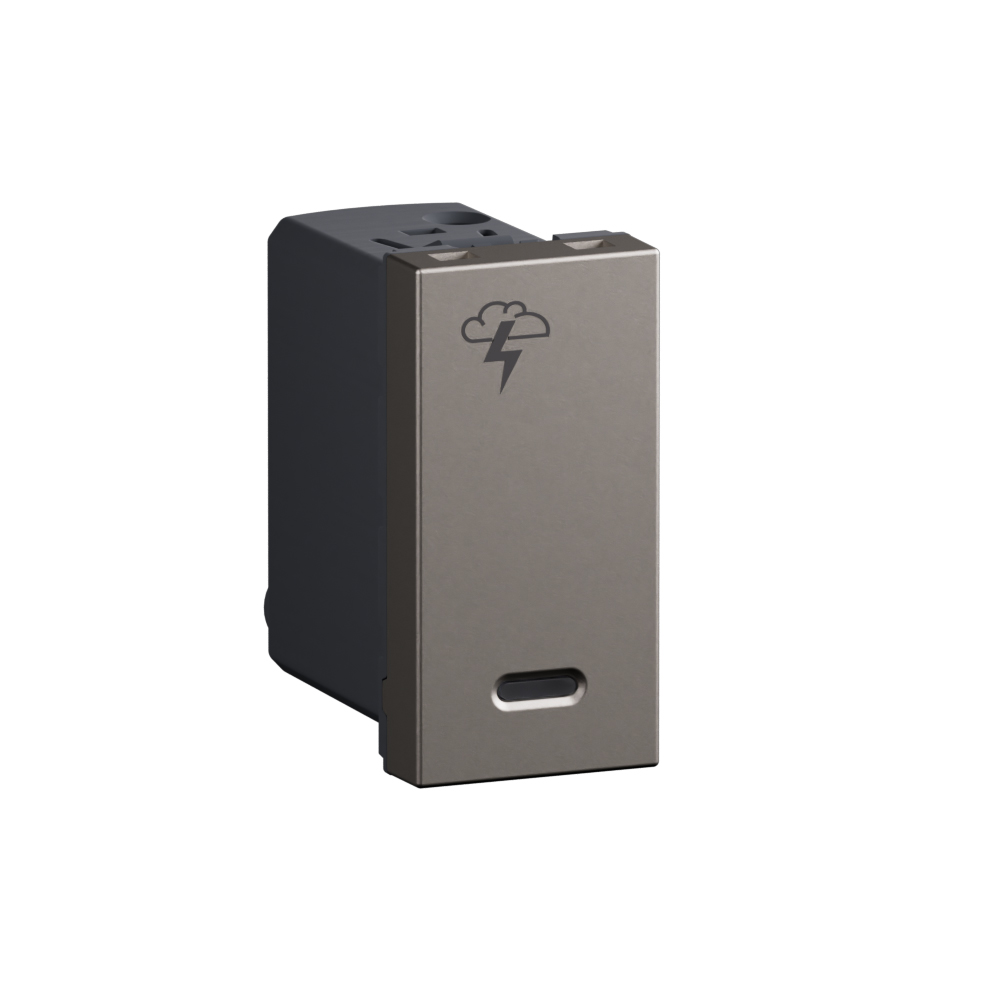

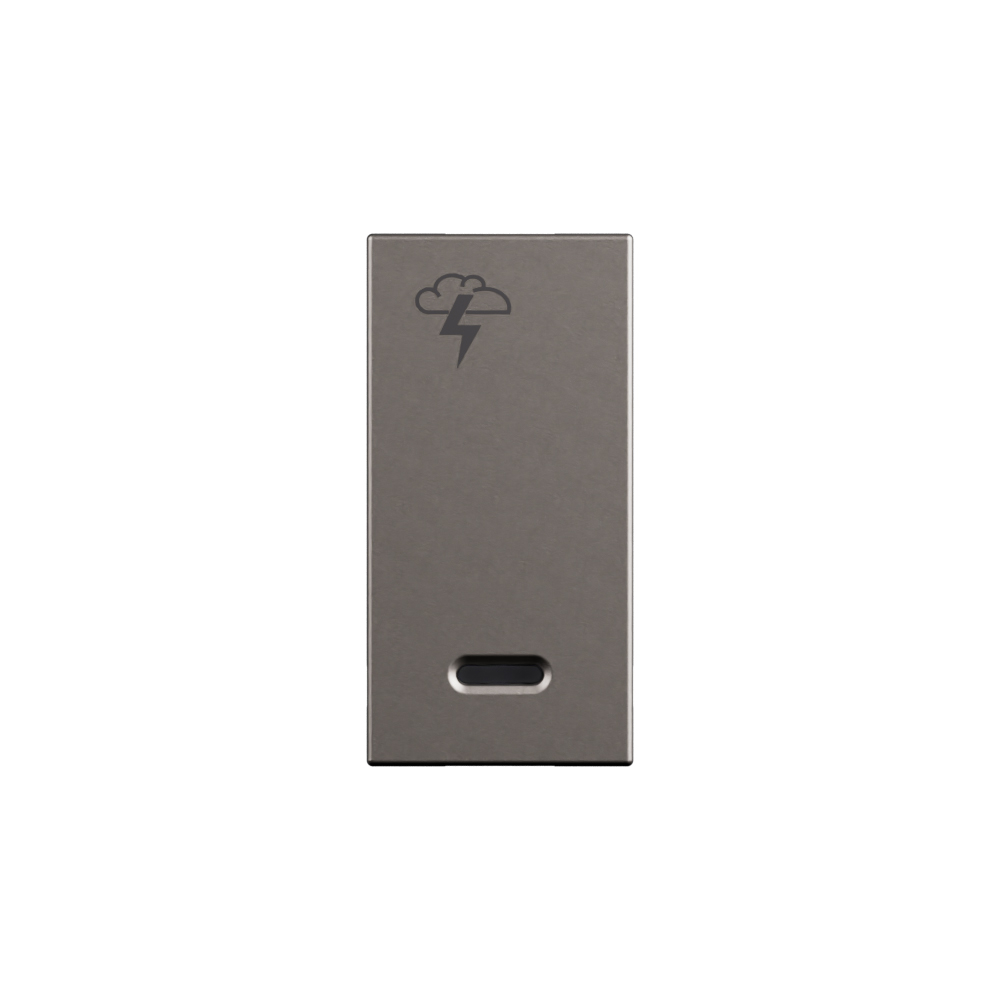

Arteor Advance - 1 module surge protector matt titanium - 1M flush-mounted AC surge protection 230V - Matt titanium finish

Arteor Advance Legrand

Arteor Advance - 1 module surge protector matt titanium - 1M flush-mounted AC surge protection 230V - Matt titanium finish

REF. AC627MT EAN. 3414972768283
Used for terminal equipment, this 1 module surge protector ensures reliable 230V AC protection. Its compact 22.5mm flush-mounted design optimizes space in Arteor Advance installations. The matt titanium finish offers a discreet aesthetic.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Used for terminal equipment, this 1 module surge protector ensures reliable 230V AC protection. Its compact 22.5mm flush-mounted design optimizes space in Arteor Advance installations. The matt titanium finish offers a discreet aesthetic.

Product characteristics
  • One-module surge protection device for terminal equipment in Arteor Advance systems
  • Matt titanium finish providing a smooth, low-glare metallic aspect for premium interiors
  • Rated for 230V AC operation with a nominal voltage range of 220V to 240V for standard residential and commercial grids
  • Flush-mounted, 1-pole design with 22.5mm width and 45mm height for compact integration in modular installations
  • IP20 degree of protection, indoor use, with screwed cable terminals and bottom power supply entry
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Number of poles (total) 1
Number of protected poles 1
Rated voltage 230 V
Voltage type AC
Flush-mounted installation Yes
Concurrently switching neutral conductor No
Overvoltage category 22.5
Additional equipment possible No
Width in number of modular spacings 22.5
Degree of protection (IP) IP20
Explosion-proof No
Width 22.5 mm
Height 45 mm
Nominal voltage (Min-Max) 220-240 V
Electric supplying direction From the bottom
Terminal marking indication No
Colour Titanium
Halogen free No
Connection type Screwed terminal , Cable
Label space/information surface No
Mounting method Flush-mounted
