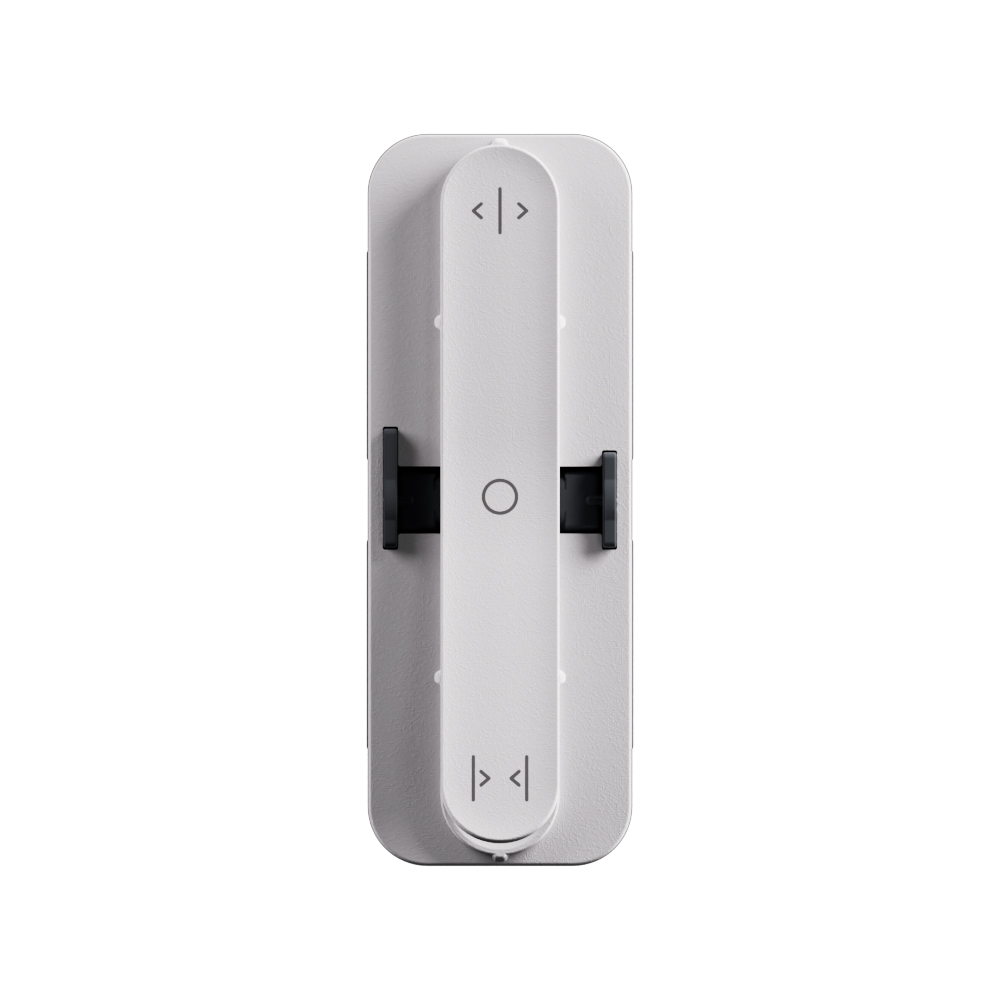

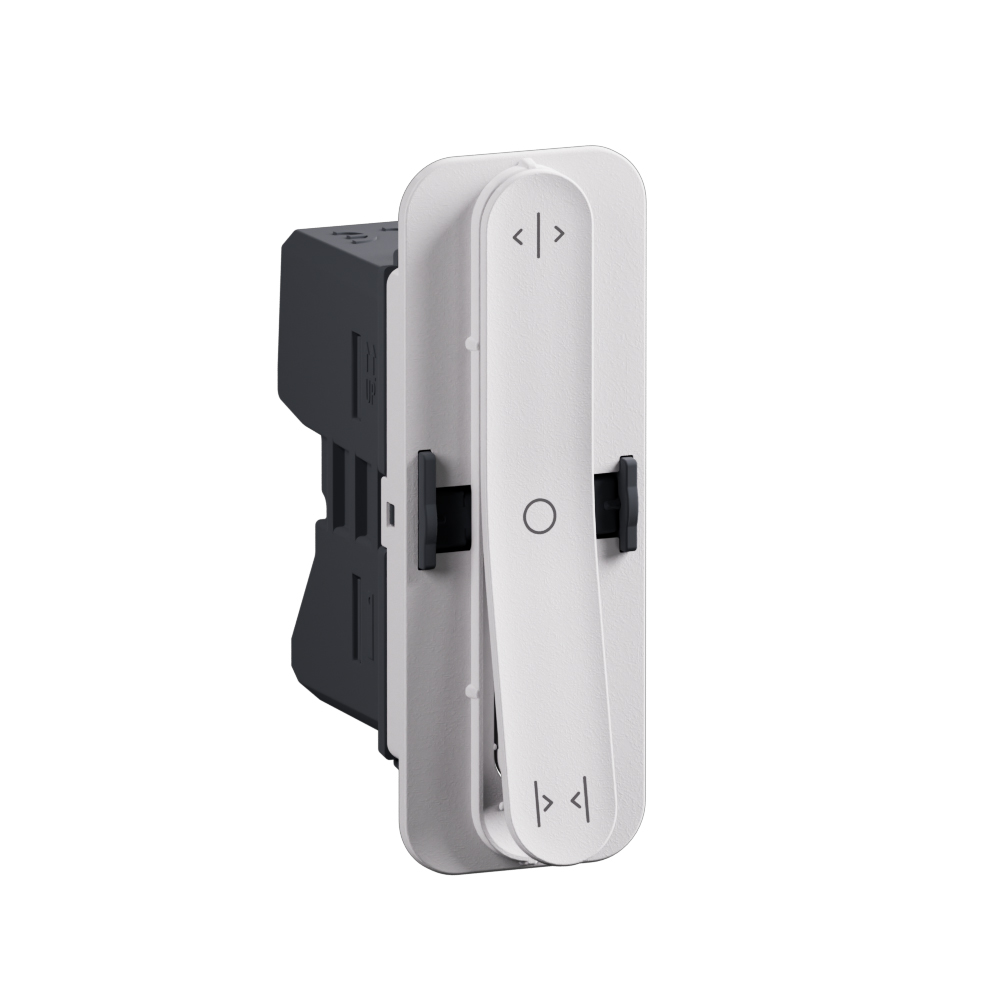

Arteor Advance - 1 module slim curtain switch matt white - 1-pole rocker for blinds and awnings - 250V AC 10A IP20

Arteor Advance Legrand

Arteor Advance - 1 module slim curtain switch matt white - 1-pole rocker for blinds and awnings - 250V AC 10A IP20

REF. AA26101MW EAN. 3414973145632
Allows convenient control of curtains, venetian and roller blinds or awnings. This module curtain switch with center off ensures precise manual operation via rocker. Its matt white thermoplastic body and IP20 rating ensure safe in-wall use.
Download product sheet
Finition :
Model :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of curtains, venetian and roller blinds or awnings. This module curtain switch with center off ensures precise manual operation via rocker. Its matt white thermoplastic body and IP20 rating ensure safe in-wall use.

Product characteristics
  • One-module slender curtain and window blind switch for modular domestic installations
  • Matt white thermoplastic front with smooth powdery finish for a discreet, modern aesthetic
  • 1-pole rocker, center-off operation for precise up/down control of venetian blinds, roller blinds, and awnings
  • Screw-type terminals accepting 1mm² to 6mm² flexible or rigid conductors for secure, reliable wiring
  • Rated 10A, 250V AC, IP20, with mechanical control and 35mm minimum box depth for standard indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Powdery white with a smooth matte aspect
  • The slender design offers a unique ergonomics that brings elegance to the room

Technical characteristics

For venetian blinds Yes
For roller blinds Yes
For awnings Yes
Assembly arrangement Modular device for domestic switching devices
Model 1-pole push button
Number of poles 1
Method of operation Rocker
With electrical latch No
With mechanical latch No
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Type of fastening Mounting with screw
Connection type Screwed terminal
Colour White
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.5 mm
Device height 61.8 mm
Device depth 36.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK00
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 4
Terminals capacity (Min-Max) 1-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-6 mm²
Contains Batteries No

Documentation

1 document
Technical Sheet
F04276EN-00.pdf pdf (0.62 Mo)
