Arteor Advance - 1 module single secondary telephone socket matt white - RJ45 8(4) IDC termination - Flush-mounted modular design

Arteor Advance Legrand

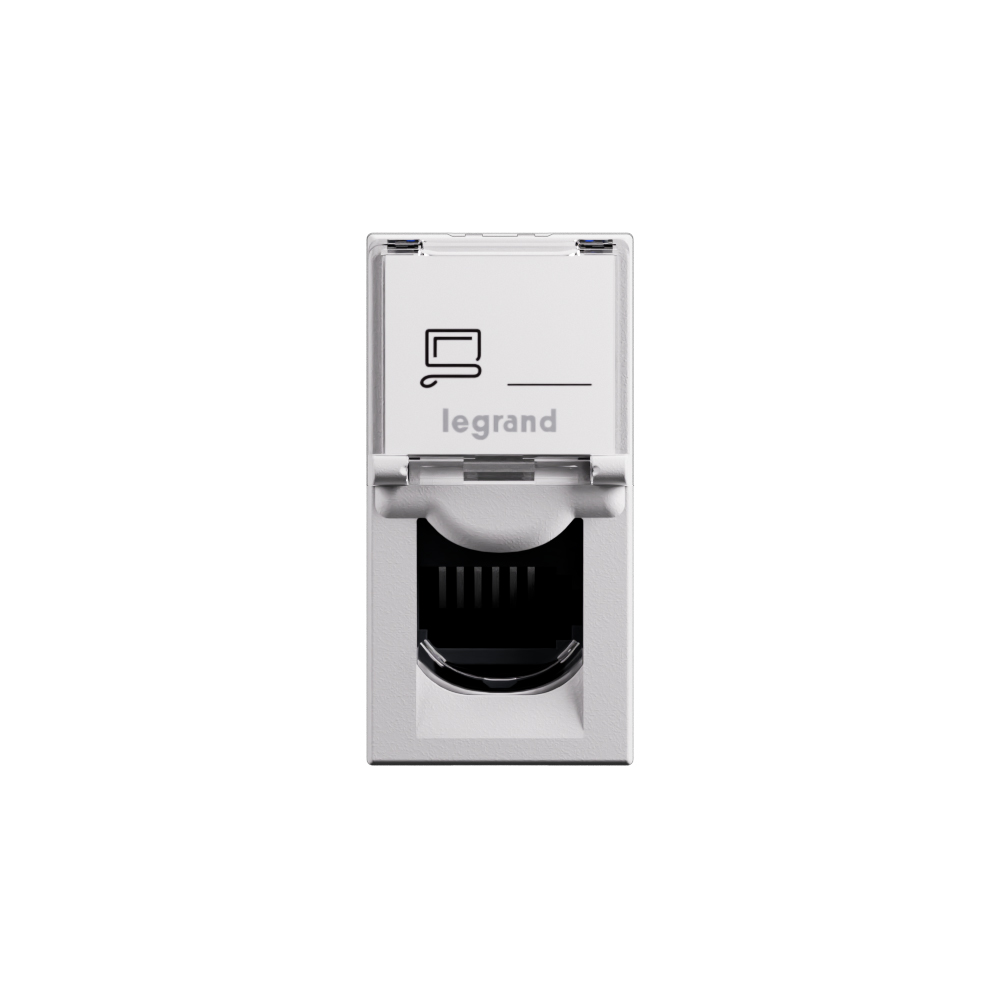

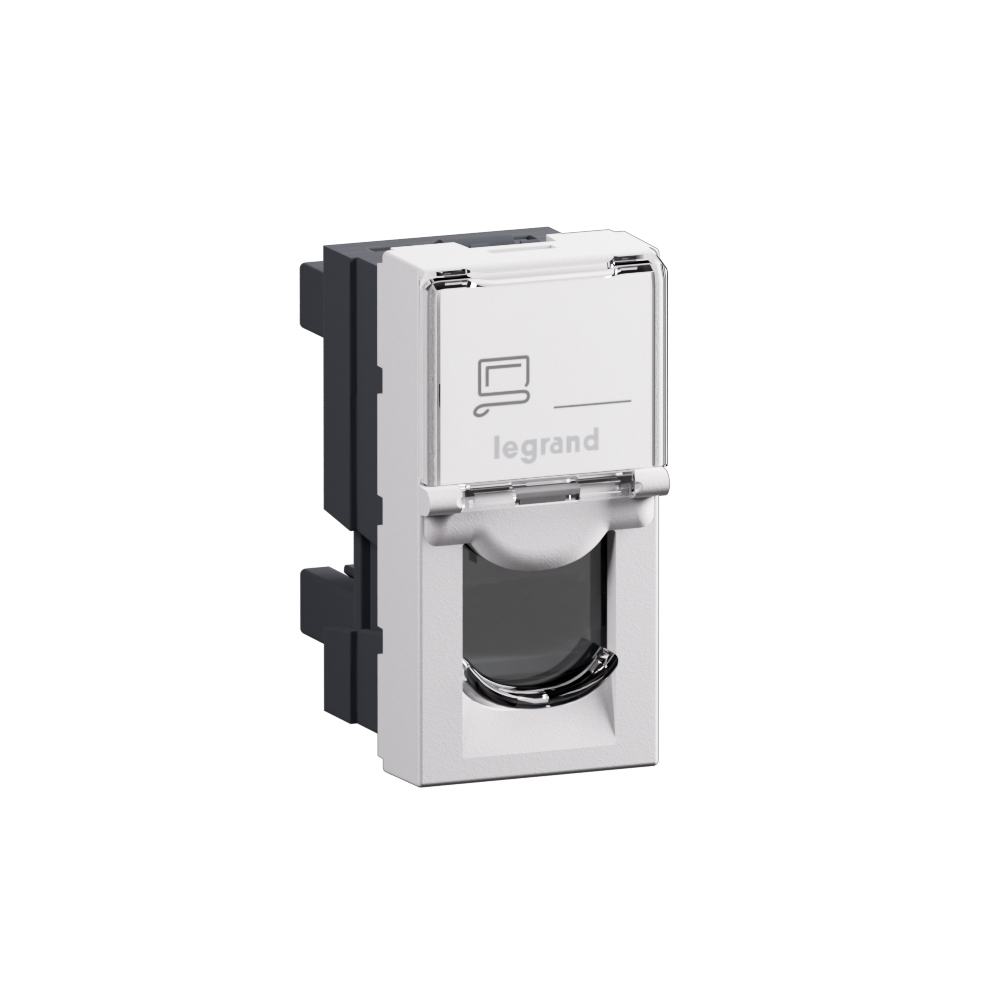

Arteor Advance - 1 module single secondary telephone socket matt white - RJ45 8(4) IDC termination - Flush-mounted modular design

REF. AC426MW EAN. 3414972763035
For telephone installation, this 1 module single secondary telephone socket with IDC connection ensures reliable RJ45 8(4) connectivity. Its matt white finish, halogen-free construction, and flush-mounted modular design ensure compatibil
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For telephone installation, this 1 module single secondary telephone socket with IDC connection ensures reliable RJ45 8(4) connectivity. Its matt white finish, halogen-free construction, and flush-mounted modular design ensure compatibil

Product characteristics
  • One-module secondary telephone socket for data communication over copper twisted pair, conforming to British Telecom single master requirements
  • Matt white finish (RAL 9003) with powdery, smooth aspect for visual consistency across Arteor Advance installations
  • 1-module modular device (22.5x45x35mm, built-in depth 24.2mm) for flush-mounted installation on supporting bracket with screw fastening
  • Mechanism supplied with rocker plate, to be completed with compatible support frames and plates for standardized modular assemblies
  • RJ45 8(4) outlet with IDC (insulation displacement) connection, shielded housing and buses, IP20, IK04, halogen free, with dust cover, label space, and color coding for reliable telephone wiring

The product's benefits

Installation
  • Can be installed in receptacles for floor sockets
Usage
  • Conform to British Telecom Single master
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Screwing
Assembly arrangement Modular device for domestic switching devices
Type of connector RJ45 8(4)
With buses/couplings Yes
Category Other
Colour White
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses Yes
Shielded housing Yes
Separate earthing connection No
With label space Yes
Compatible with third-party covers No
Separate strain relief No
Mounting method shielding connection Other
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 22.5 mm
Device height 45 mm
Device depth 35 mm
Number of modules (module system) 1
Built-in depth 24.2 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Supporting bracket
Entry membrane gland type Not applicable
Cable support Not applicable
