Arteor Advance - 1 module rotary fan controller 100W 4 steps matt white - 1M flush-mounted fan speed control - 220-240V 1-phase IP20

Arteor Advance Legrand

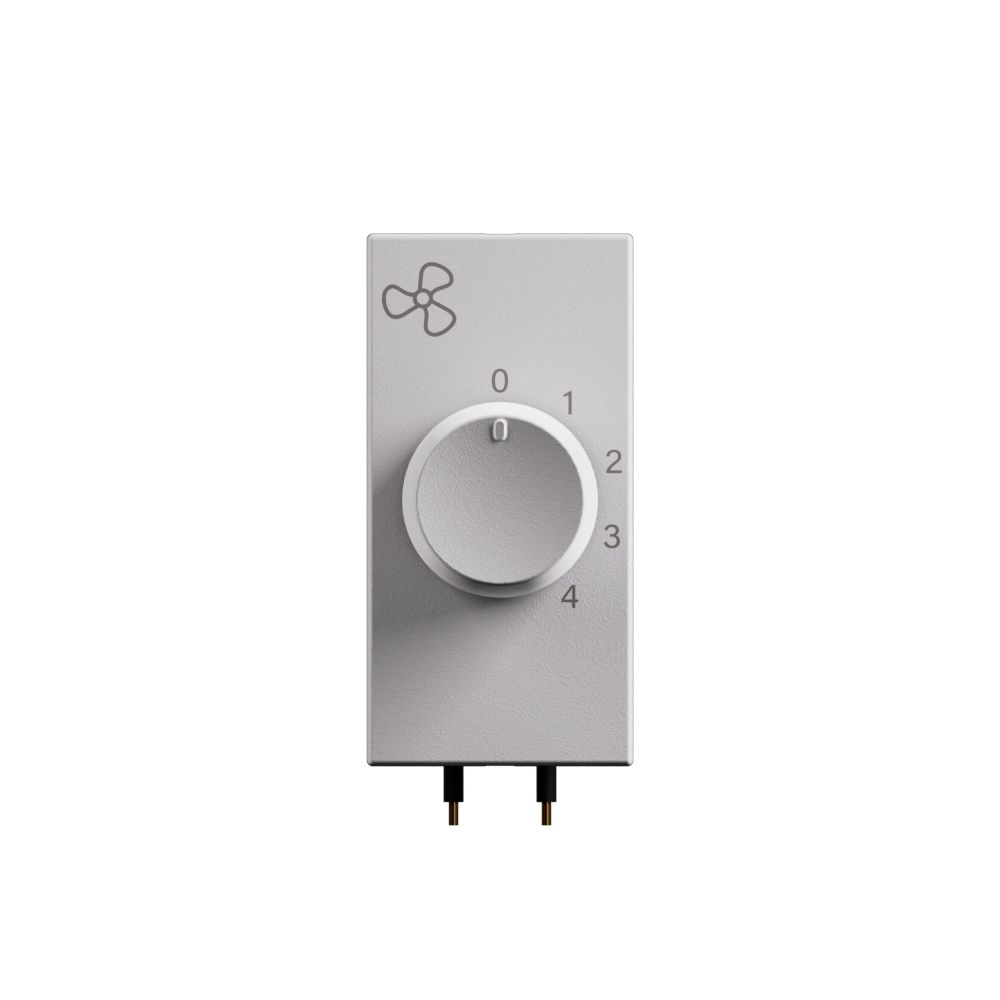

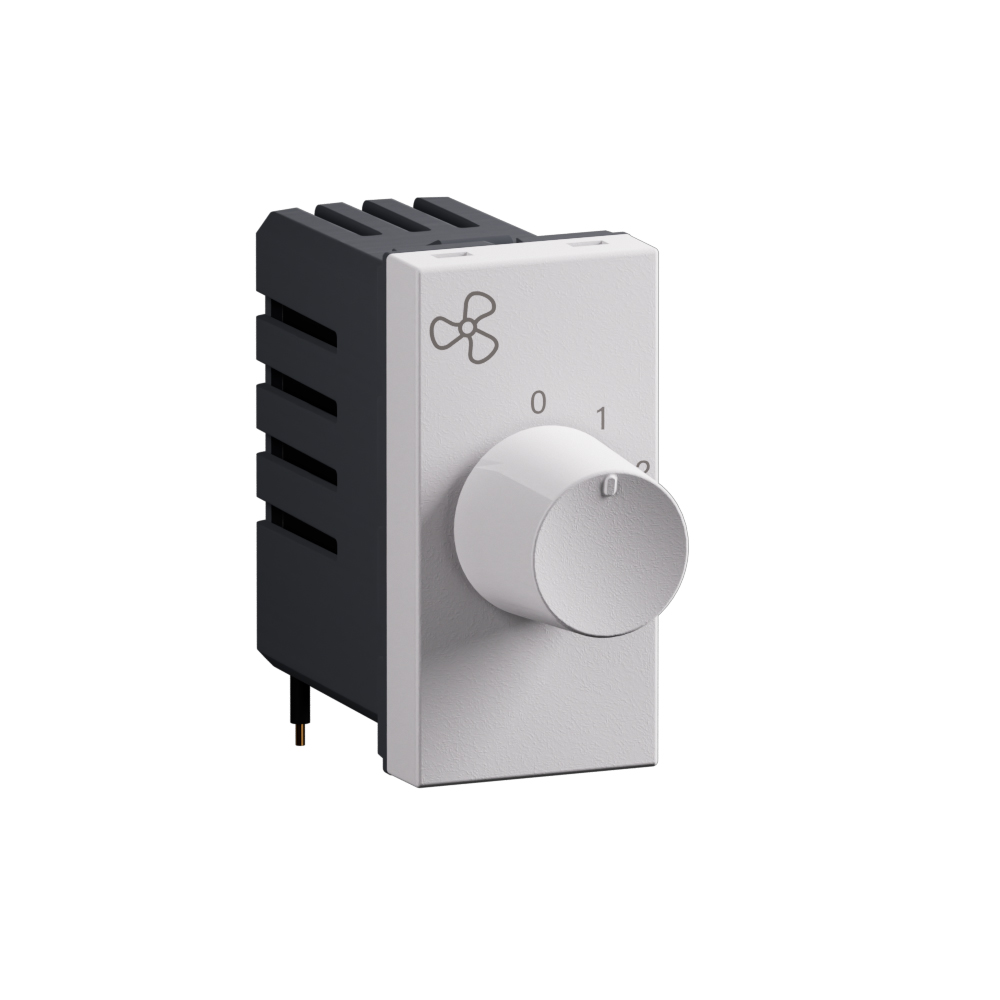

Arteor Advance - 1 module rotary fan controller 100W 4 steps matt white - 1M flush-mounted fan speed control - 220-240V 1-phase IP20

REF. AC661MW EAN. 3414972768818
Allows control of fan speed with a 1-module rotary controller rated 100W at 220-240V. Offers precise 4-step regulation via a turn button in matt white finish. Flush-mounted IP20 design ensures neat integration for indoor fan applications.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of fan speed with a 1-module rotary controller rated 100W at 220-240V. Offers precise 4-step regulation via a turn button in matt white finish. Flush-mounted IP20 design ensures neat integration for indoor fan applications.

Product characteristics
  • Compact 1-module rotary fan speed controller rated for 100W loads
  • Matt white finish for a discreet, powdery white aesthetic matching Arteor Advance devices
  • Four-step speed control for precise fan airflow adjustment
  • Flush-mounted design with turn-button operation and integrated switching contact for 1-phase 220-240V applications
  • IP20 device recommended for indoor use only, with dimensions 45x22.5x33mm
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Mounting method Flush-mounted
Colour White
Output voltage (Min-Max) 220-240 V
Number of phases 1
Power control stepless No
Number of steps 4
Method of operation Turn button
Lighting None
Switching contact Yes
With temperature sensor No
Height 45 mm
Width 22.5 mm
Depth 33 mm
Degree of protection (IP) IP20

Documentation

1 document
REACH DECLARATION
1 document
BIM Data
