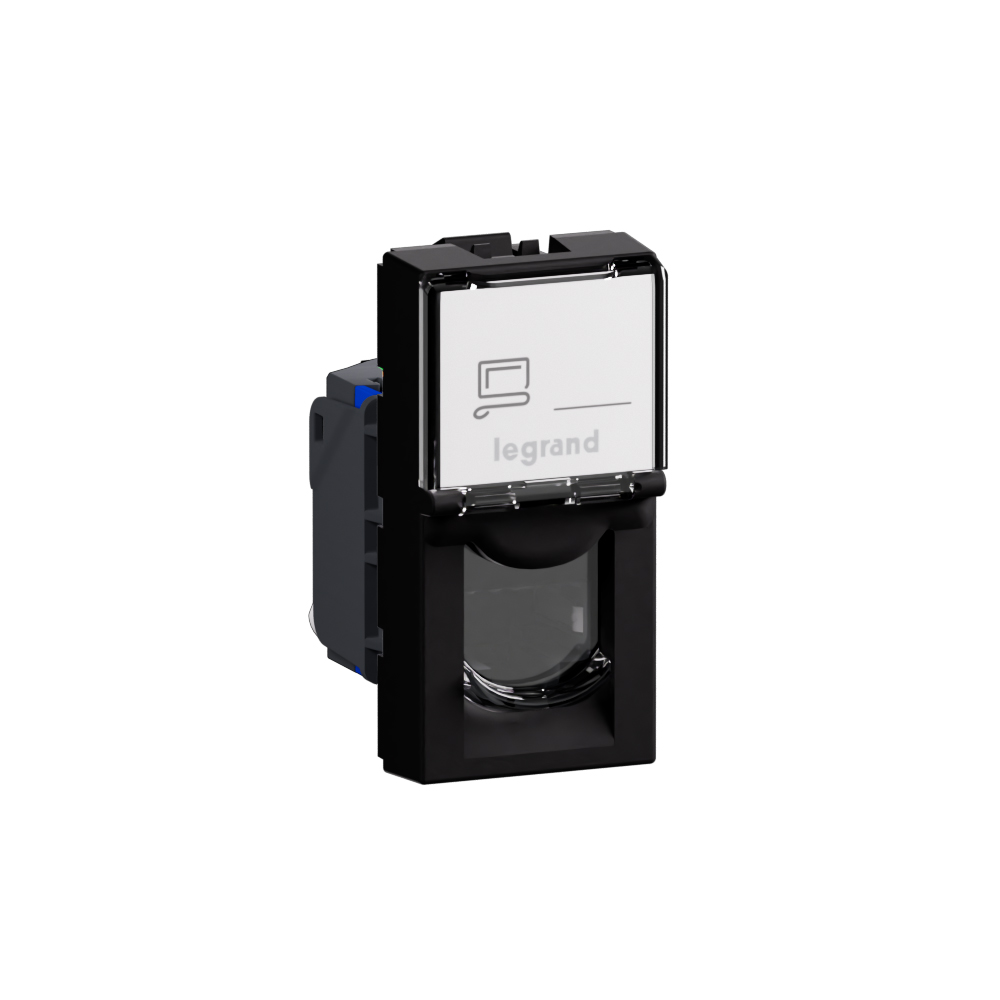

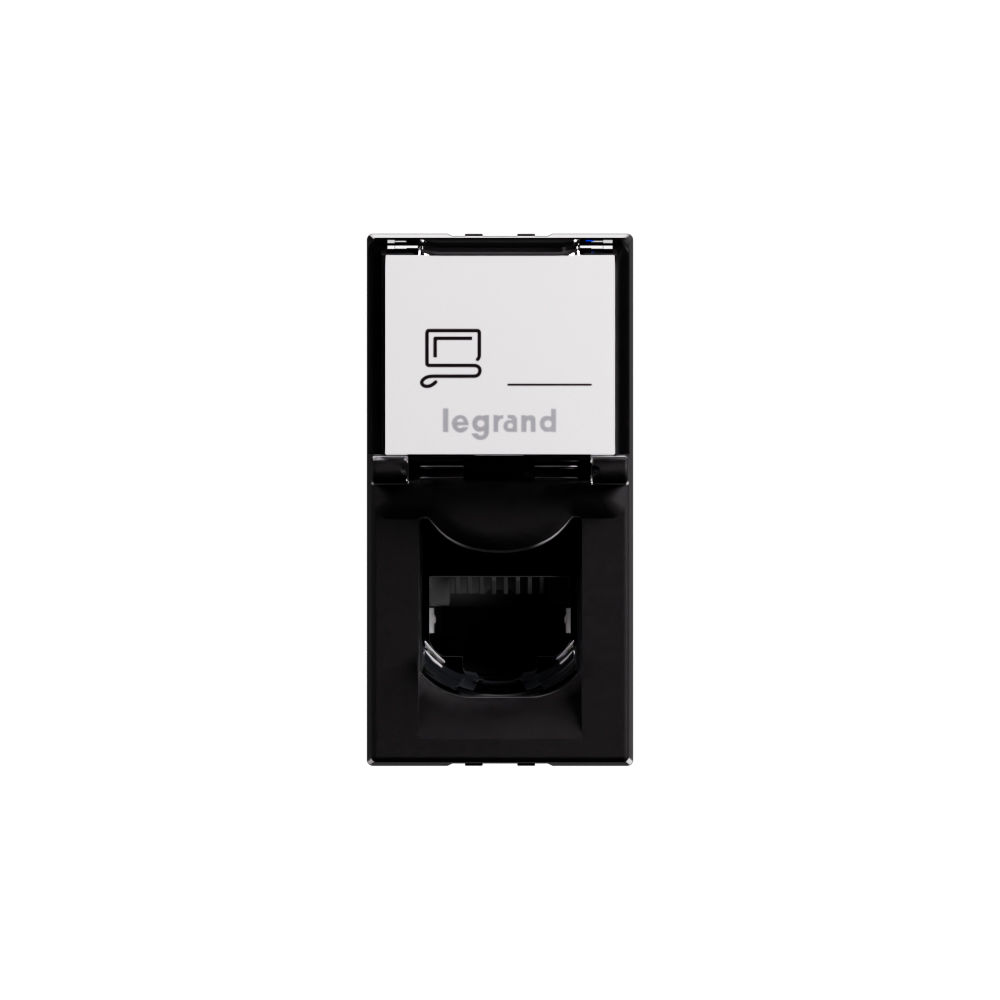

Name: Arteor Advance - 1 module RJ45 CAT6A UTP socket matt black - 10Gbit/s data rate - PoE support - Matt black with protective dust cover
SKU: AC4306MB

Arteor Advance - 1 module RJ45 CAT6A UTP socket matt black - 10Gbit/s data rate - PoE support - Matt black with protective dust cover

REF. AC4306MB EAN. 3414972763547

RJ45 socket connects a device to the local network, delivering high-speed Cat6A data up to 10Gbit/s and supporting high-capacity PoE. Wired distribution guarantees a secure, reliable internet connection.

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

One RJ45 Cat 6A UTP module (category 6A, IEC) providing up to 10 Gbit/s data rate for high-speed, low-latency applications such as large file transfers, streaming, and online gaming.
Matt black finish in deep black with smooth, non-reflective surface for a modern technical aesthetic and seamless integration with Arteor Advance installations.
Equipped with a transparent protective dust cover (IP20) that shields the RJ45 8(8) connector from dust and contamination, ensuring long-term connection reliability.
Compact 1-module basic element with central cover plate (22.5x45x34mm, built-in depth 25.2mm), suitable for surface, flush, duct, and floor box mounting with snap fastening and toolless IDC terminations.
Supports high-capacity PoE applications, transmitting electric power and data over twisted pair Ethernet cabling for powering IP phones, cameras, and other networked devices without separate power wiring.

Recommendation / Restriction

Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation

Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.

Usage

Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.

Avantages

Toolless connector with fast connection thanks to integrated crimping.
Deep black with a smooth matte finish
Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a standard (single) flush-mounting box, with no need for additional wall groove cutting or cabling.

Technical characteristics

Surface mounting	Yes
Flush-mounted installation	Yes
Duct installation	Yes
Floor box/subfloor mounted	Yes
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with central cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6A (IEC)
Colour	Black
RAL-number	9003
Connection type	Insulation displacement connector
Shielded buses	No
Separate earthing connection	No
With label space	Yes
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight

With dust cover	Yes
Degree of protection (IP)	IP20
Colour coding	Yes
Device width	22.5 mm
Device height	45 mm
Device depth	35 mm
Number of modules (module system)	1
Built-in depth	25.2 mm
degree of impact strength (IK)	IK03
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Maximum Input cable diameter	9 mm
Entry membrane gland type	Not applicable
Cable support	Not applicable
