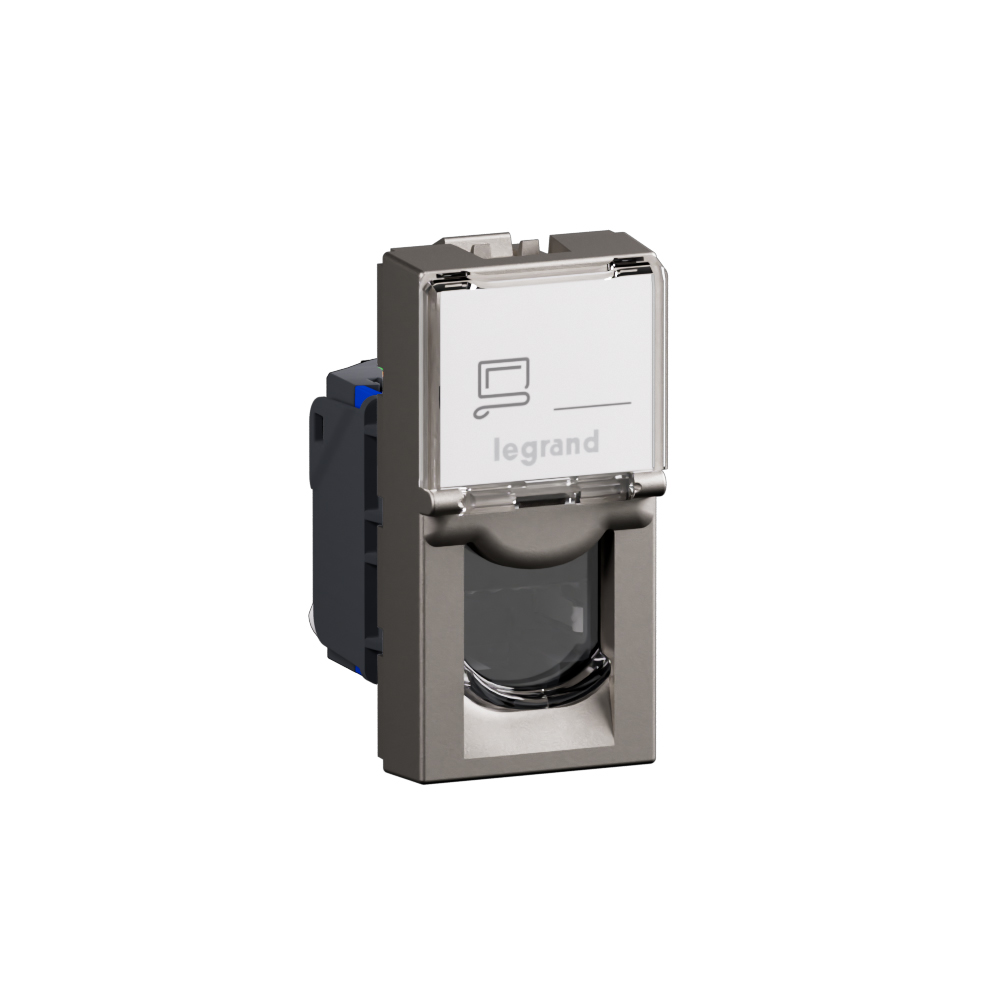

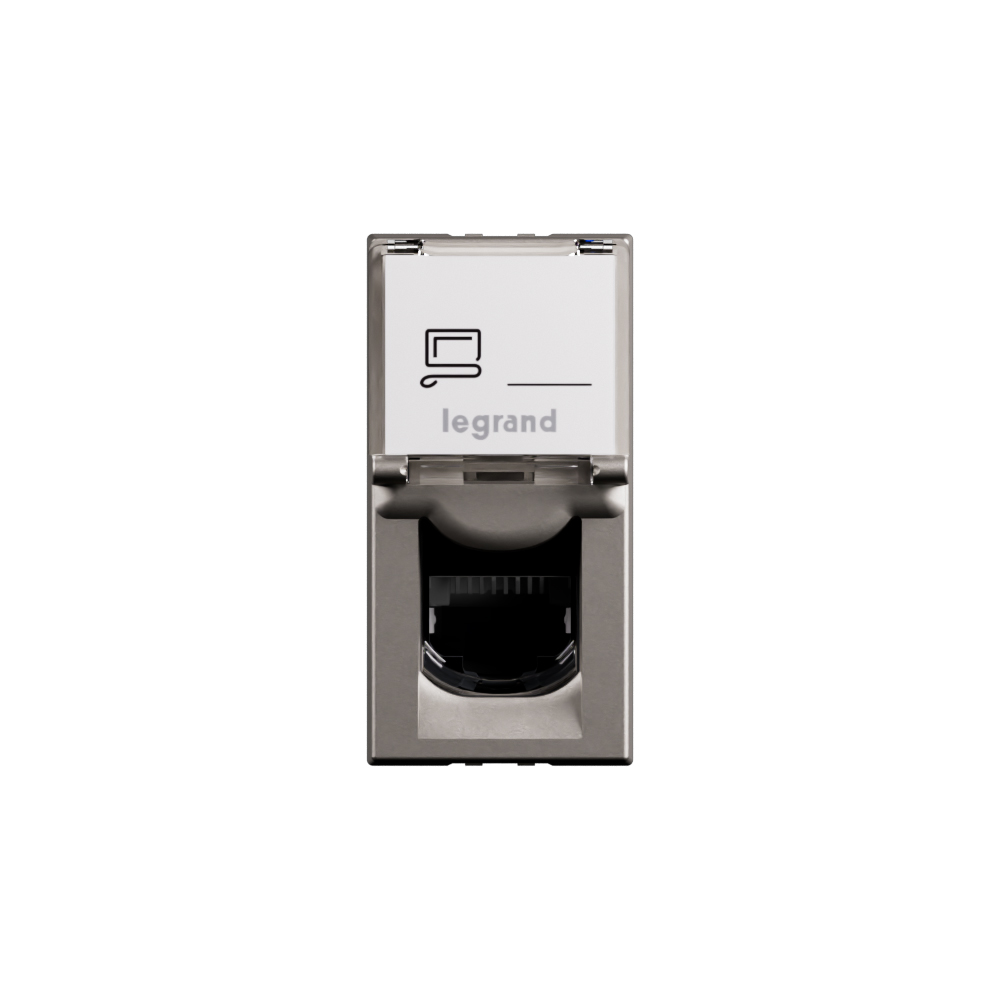

Name: Arteor Advance - 1 module RJ45 CAT6A UTP socket - 10Gbit/s data rate Cat 6A - PoE support - Matt titanium finish with dust cover
SKU: AC4306MT

Arteor Advance - 1 module RJ45 CAT6A UTP socket - 10Gbit/s data rate Cat 6A - PoE support - Matt titanium finish with dust cover

REF. AC4306MT EAN. 3414972763608

RJ45 socket connects a device (PC, printer) to the local network (ISP router, switch). Wired distribution guarantees a high-speed, secure and reliable connection to the internet, supporting Cat6A data rates up to 10Gbit/s.

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

One RJ45 Cat 6A UTP module providing up to 10Gbit/s data rate, enabling transfer of a 1Gbyte file in approximately 1s for high-performance network links.
Matt titanium finish (color titanium, RAL 9003) for a modern, low-glare appearance matching Arteor Advance installations.
Equipped with a transparent protective dust cover (IP20) to protect the RJ45 8(8) connector from dust and contamination.
Compact 1-module socket (22.5x45x34mm, built-in depth 25.2mm) with snap fastening, IDC terminations, and flush/surface/duct/floor box mounting flexibility.
Supports high-capacity PoE applications, transmitting electric power and data over twisted pair Ethernet cabling for IP phones, cameras, and other powered devices.

Recommendation / Restriction

Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation

Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.

Usage

Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.

Avantages

Toolless connector with fast connection thanks to integrated crimping.
Titanium with a smooth matt aspect
Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting	Yes
Flush-mounted installation	Yes
Duct installation	Yes
Floor box/subfloor mounted	Yes
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with central cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6A (IEC)
Colour	Titanium
RAL-number	9003
Connection type	Insulation displacement connector
Shielded buses	No
Separate earthing connection	No
With label space	Yes
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight

With dust cover	Yes
Degree of protection (IP)	IP20
Colour coding	Yes
Device width	22.5 mm
Device height	45 mm
Device depth	35 mm
Number of modules (module system)	1
Built-in depth	25.2 mm
degree of impact strength (IK)	IK03
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Maximum Input cable diameter	9 mm
Entry membrane gland type	Not applicable
Cable support	Not applicable
