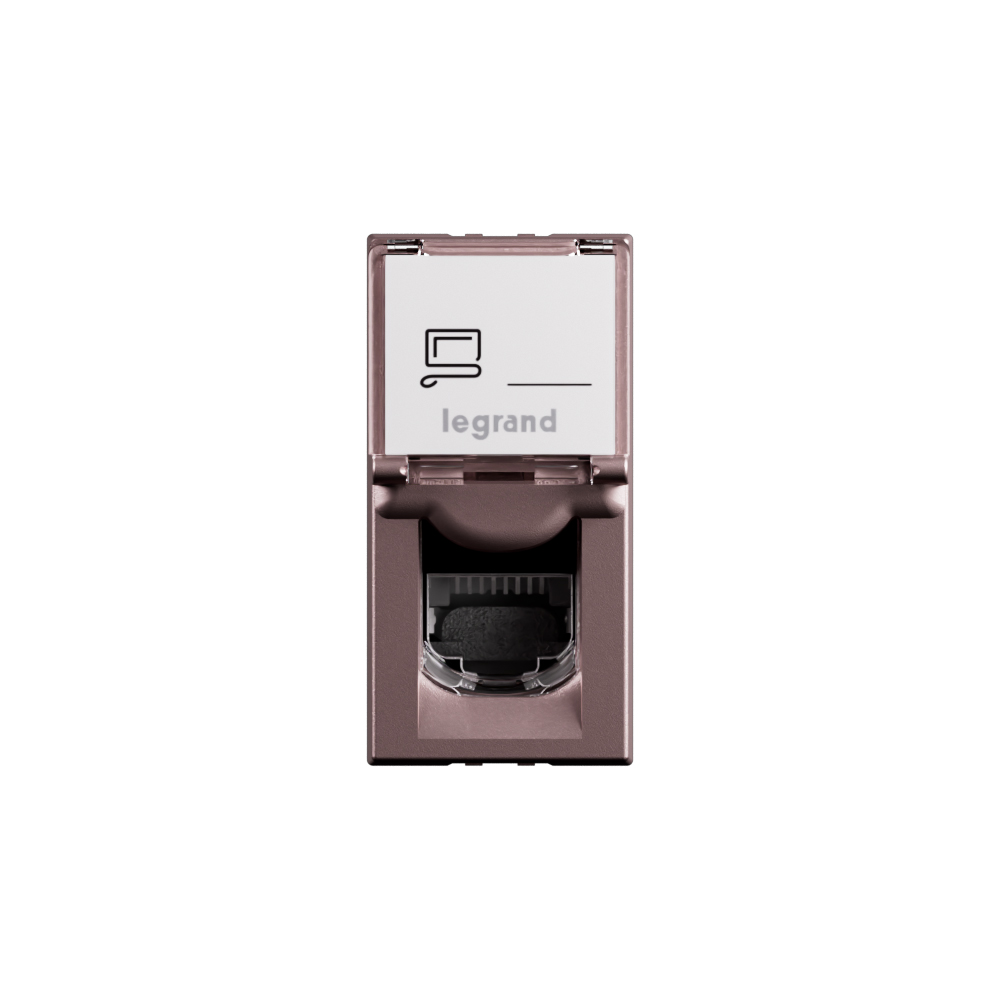

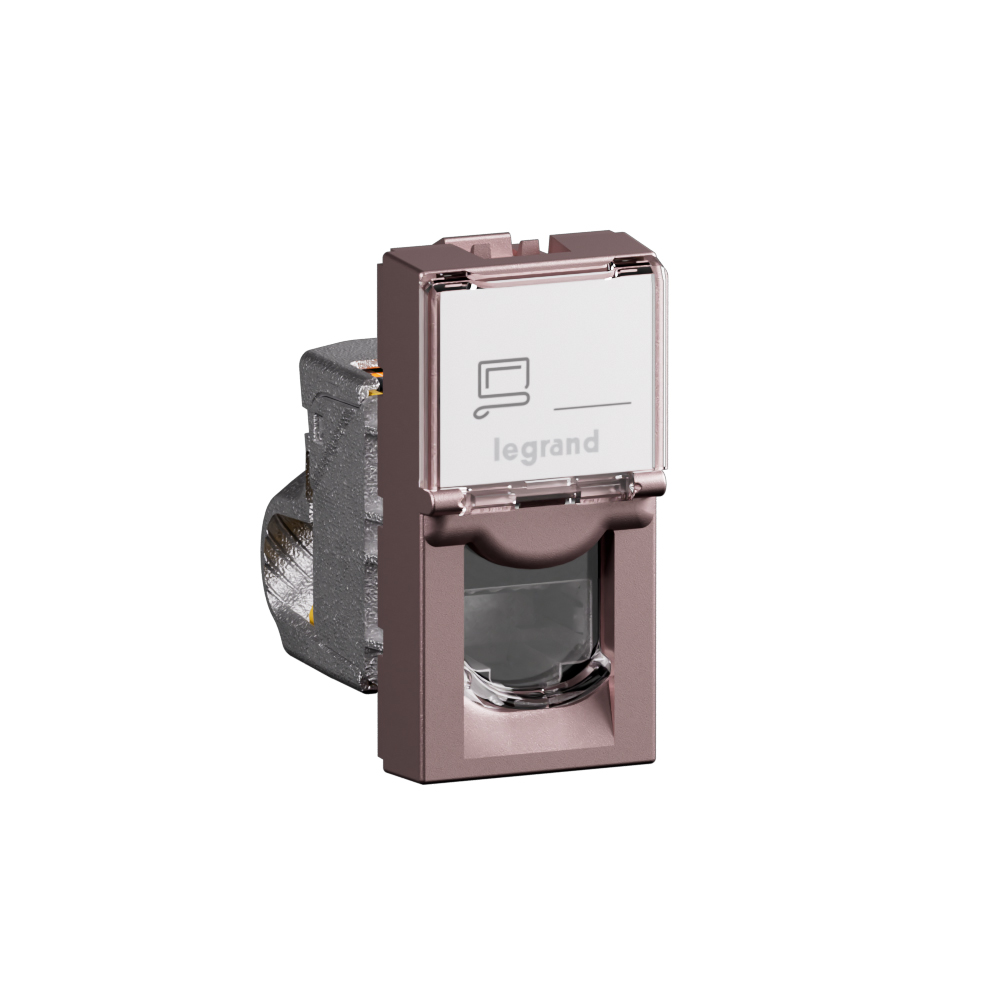

Arteor Advance - 1 module RJ45 CAT6A STP socket rose - 10Gbit/s data rate - Shielded toolless IDC connection - With dust cover IP20

Arteor Advance Legrand

Arteor Advance - 1 module RJ45 CAT6A STP socket rose - 10Gbit/s data rate - Shielded toolless IDC connection - With dust cover IP20

REF. AC4305RS EAN. 3414972927628
RJ45 socket connects a device to the local network, supporting Cat6A data rates up to 10Gbit/s and high-capacity PoE. The wired distribution guarantees a high-speed, secure and reliable connection. Toolless connection eases installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ45 socket connects a device to the local network, supporting Cat6A data rates up to 10Gbit/s and high-capacity PoE. The wired distribution guarantees a high-speed, secure and reliable connection. Toolless connection eases installation.

Product characteristics
  • One RJ45 Cat 6A shielded module (STP) providing up to 10Gbit/s data rate for high‑speed, low‑latency network links.
  • Rose finish front module for aesthetic integration in contemporary commercial and residential interiors.
  • Equipped with a transparent protective dust cover that shields the RJ45 connector from dust and contamination, maintaining long‑term performance.
  • 1‑module, IP20 RJ45 8(8) outlet with straight exit, toolless IDC termination and snap‑in mounting for fast, reliable installation in flush, surface, duct or floor box configurations.
  • Supports high‑capacity PoE applications, transmitting electric power and data over twisted pair Ethernet cabling for IP phones, cameras and access points.
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation
  • Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Pink finish evoking subtle blush effect
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6A (IEC)
Colour Other
Connection type Insulation displacement connector
Shielded buses Yes
Separate earthing connection No
With label space Yes
Separate strain relief No
Mounting method shielding connection Other
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Colour coding Yes
Device width 22.5 mm
Device height 45 mm
Device depth 42 mm
Number of modules (module system) 1
Built-in depth 31 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable
