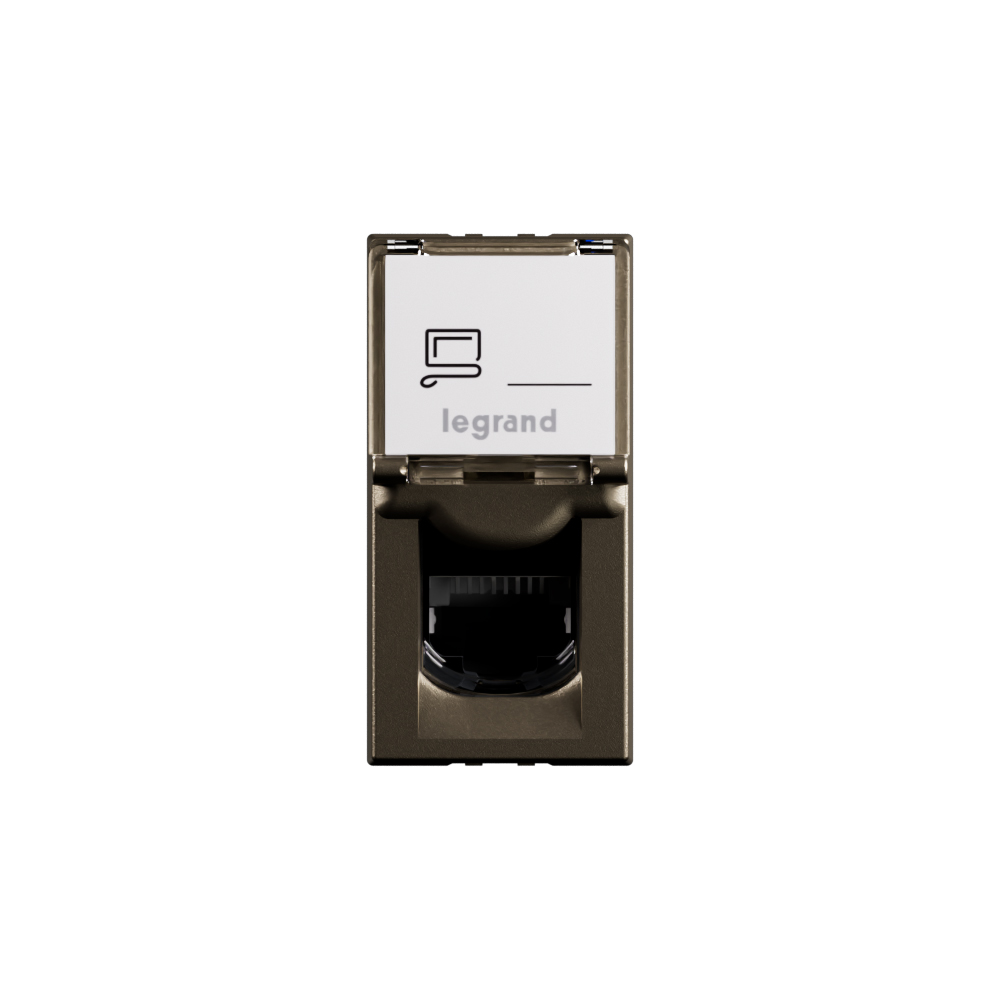

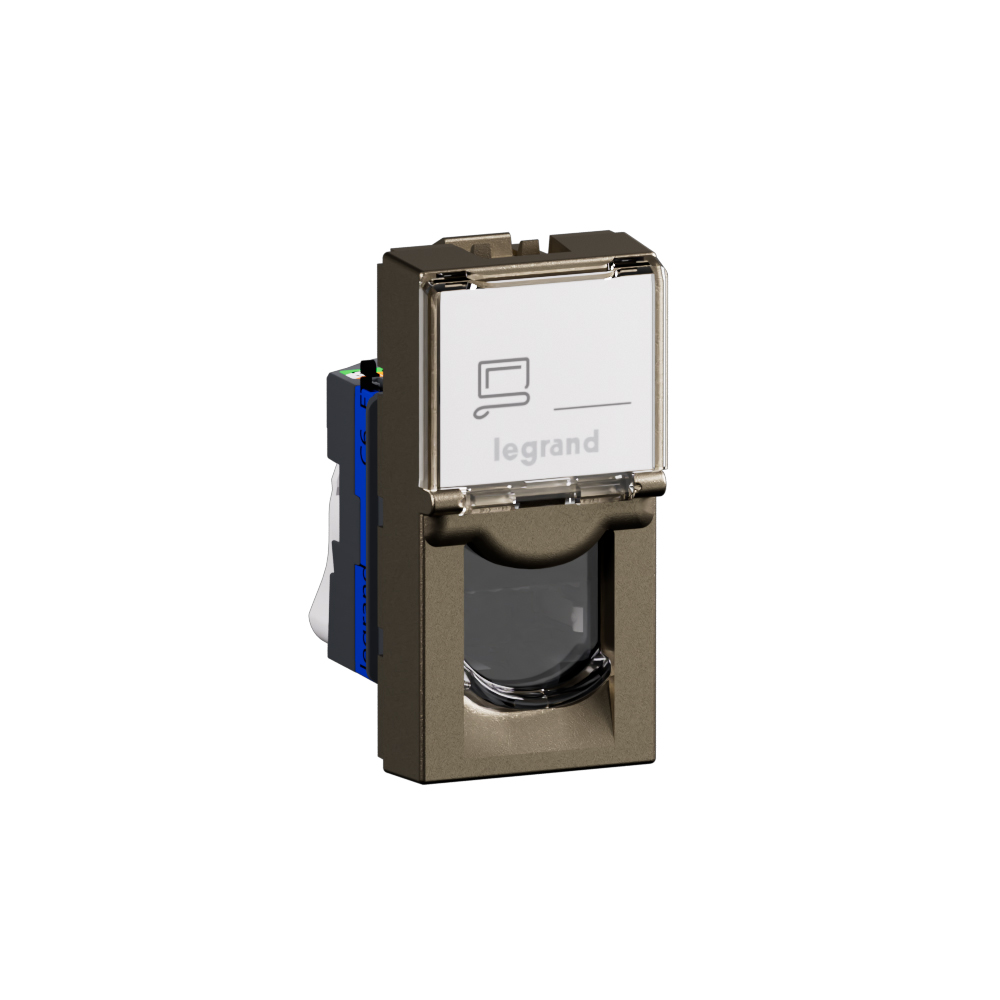

Arteor Advance - 1 module RJ45 CAT6 UTP socket dark bronze - 1Gbit/s data rate - PoE support - With transparent protective dust cover

Arteor Advance Legrand

Arteor Advance - 1 module RJ45 CAT6 UTP socket dark bronze - 1Gbit/s data rate - PoE support - With transparent protective dust cover

REF. AC4304DB EAN. 3414972927505
RJ45 socket connects a device to the local network, ensuring high-speed, secure and reliable gigabit data and PoE transmission. Its transparent dust cover, halogen-free design and dark bronze 1-module form factor provide robust integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ45 socket connects a device to the local network, ensuring high-speed, secure and reliable gigabit data and PoE transmission. Its transparent dust cover, halogen-free design and dark bronze 1-module form factor provide robust integration.

Product characteristics
  • One RJ45 Cat 6 module providing up to 1 Gbit/s data rate, enabling rapid transfer of large files and supporting high-speed, low-latency network applications.
  • Dark bronze 1-module finish offering a deep, technical aesthetic that coordinates with advanced wiring device lines in professional environments.
  • Equipped with a transparent protective dust cover that shields the RJ45 8(8) connector from dust and contamination, maintaining long-term contact reliability.
  • Compact 1M RJ45 CAT6 UTP socket (22.5x45x34mm, built-in depth 25.2mm), IP20, IK03, halogen-free, suitable for flush, surface, duct, and floor box mounting with snap-in fastening.
  • Supports high-capacity PoE applications, allowing simultaneous power and data transmission over twisted pair Ethernet cabling for IP phones, cameras, and access points.
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation
  • Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Deep bronze finish evoking classic aesthetic
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6
Colour Bronze
Connection type Insulation displacement connector
Shielded buses No
Separate earthing connection No
With label space Yes
Compatible with third-party covers Yes
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 22.5 mm
Device height 45 mm
Device depth 35 mm
Number of modules (module system) 1
Built-in depth 25.2 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.289
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
